Walk-In Thermal Chamber – Customizable Environmental Simulation

Walk-In Thermal Chamber – Customizable Environmental Simulation for Auto Spare Parts have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from -70° C to 150° C and relative humidity ranges between 20% and 98% are available.

Inquire Now

Description

1 Product Name

1-1 Product Name: Walk-In temperature humidity test chamber

2 Main Technical Parameters

2-1 Dimension: According to customer's requirements

2-2 Material: SUS#304ss

2-3 Temperature :-70°C~150°C (according to customer's requirements)

2-4 Temperature Indication Resolution: ±0.1°C

2-5 Temperature Control Accuracy: ±0.5°C

2-6 Temperature distribution uniformity:±2°C

2-6 Humidity: 20%~98%R.H (according to customer's requirements)

2-7 Humidity Indication Resolution: ±0.1%R.H

2-8 Humidity distribution uniformity: ± 5.0%R.H

Walk in Climatic Temperature Humidity Stability Test Chamber for Auto Spare Parts
Big Size Temperature Humidity Machine Technical Parameters

Model	THR-volume (low-temperature options: A ~ F)
Inner Dimensions(cm)	Customers designated space size and design
Temperature Range	Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional)
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Indication Resolution/Distribution Uniformity of Temperature & Humidity	0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H.
Control Accuracy of Temperature and Humidity	±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Velocity	Temperature rising approx. 0.1~3.0°C/min temperature falling approx. 0.3~1.0°C/min; (A faster temperature change rate is optional)
Cooling System	Water-cooled or air-cooling
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Slope for cart, Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC 380 V(±10%),50/60HZ ,3 ph 5 Lines

Product Pictures

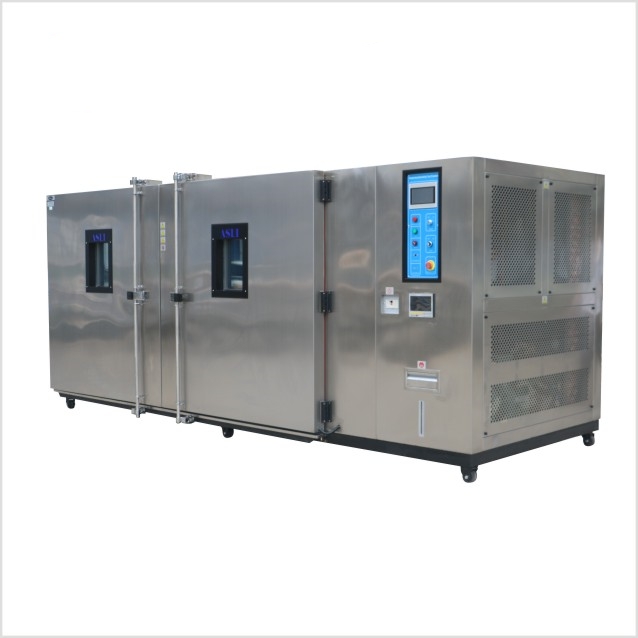

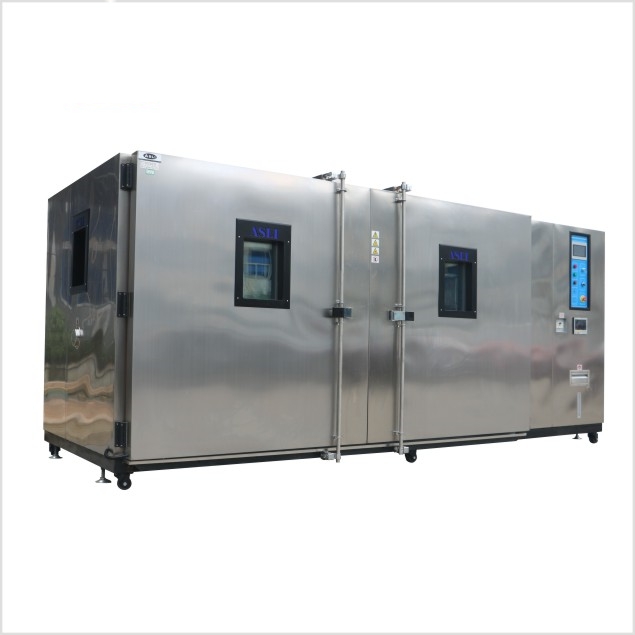

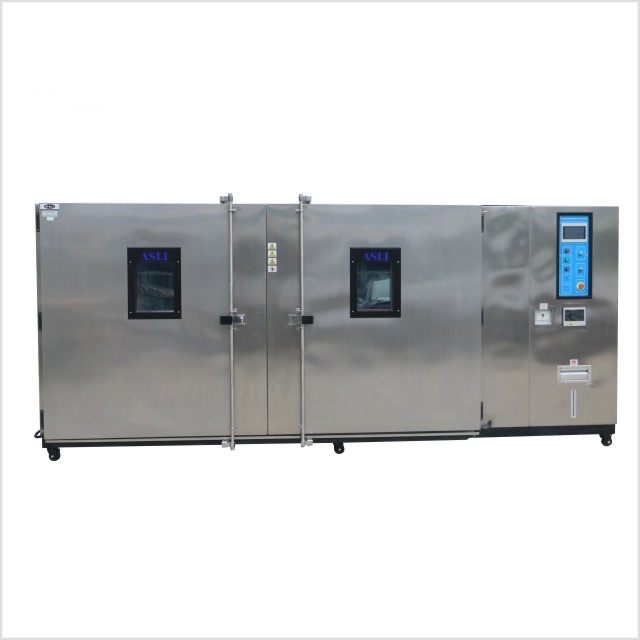

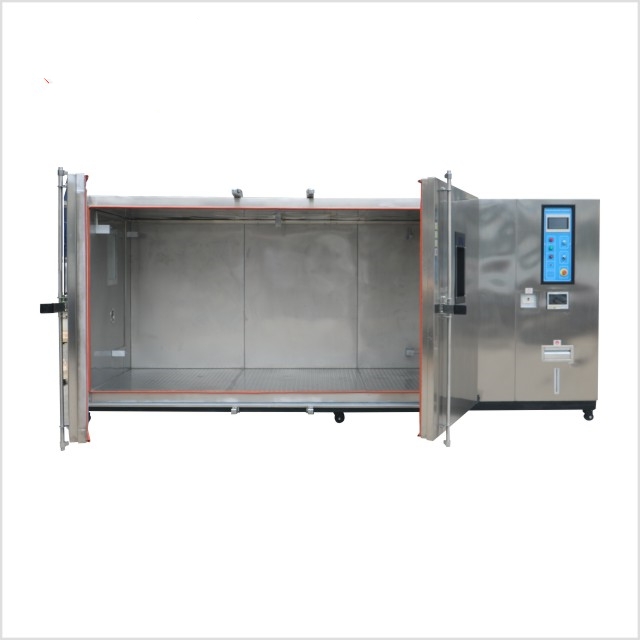

Walk in Climatic Temperature Humidity Stability Test Chamber for Auto Spare Parts

Walk-in aging Room/Climatic Room in customer factory.

Installation the walk-in temperature test chamber at the customer's factory

Walk in Climatic Temperature Humidity Stability Test Chamber for Auto Spare Parts

Package: PP film first, and then 10mm foam between the machine and the case, and outside is standard export plywood case.

Short introduction about the ASLi factory:
We are a long-time testing equipment manufacturer, in the past 28 years, we devoted ourselves to simulation environmental testing equipment and Mechanical vibration and shock testing machines. Walk-in Temperature Humidity Stability Test Chamber for Auto Spare Parts is our star product, and we have obtained the CE certification for this machine.

Exhibition:

Please don't hesitate to send your inquiries if any needs about Walk-in Temperature Humidity Stability Test Chamber for Auto Spare Parts. ^_^
