Walk in Chamber Temperature Aging Room

Walk in Temperature Humidity Stability Test Chamber for Auto Spare Parts

Walk in Temperature Humidity Stability Test Chamber for Auto Spare Parts have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from -70° C to 150° C and relative humidity ranges between 20% and 98% are available.

Inquire Now
Description

Walk-in Temperature Humidity Stability Test Chamber for Auto Spare Parts


1 Product Name

1-1 Product Name: Walk-In temperature humidity test chamber


2 Main Technical Parameters

2-1  Dimension: According to the customer's requirements

2-2  Material: SUS#304ss

2-3 Temperature :-70°C~150°C (according to customer's requirements)

2-4 Temperature Indication Resolution: ±0.1°C

2-5 Temperature Control Accuracy: ±0.5°C

2-6 Temperature distribution uniformity:±2°C

2-6 Humidity: 20%-98% R.H (according to customer's requirements)

2-7 Humidity Indication Resolution: ±0.1%R.H

2-8 Humidity distribution uniformity: ± 5.0% R.H

Walk in Climatic Temperature Humidity Stability Test Chamber for Auto Spare Parts
Big Size Temperature Humidity Machine Technical Parameters

 Model

THR-volume (low-temperature options: A~F)

 Inner Dimensions(cm)

Customers designated the space size and design

 Temperature Range

Low Temperature(A:25°C  B:0°C  C:-20°C D:-40°C  E:-60°C  F:-70°C)

High Temperature 80°C (80°C ~150°C is optional)

 Humidity Range

20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)

Indication Resolution/Distribution Uniformity of Temperature & Humidity



0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H.

 Control Accuracy of

Temperature and Humidity

±0.5°C; ±2.5% R.H.

 Temperature Rising/Falling

Velocity

The temperature is rising approximately.  0.1~3.0°C/min

 The temperature is falling approximately.  0.3~1.0°C/min;

 (Faster temperature change rate is optional)

 Cooling System

 Water-cooled or air-cooled

 Protection Devices

Fuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses,  fault warning system, water short storage warning protection

 Optional Accessories

Slope for cart, Recorder, Water Purifier, Dehumidifier

 Compressor

French Tecumseh Brand, Germany Bizer Brand

 Power

AC 380 V(±10%),50/60HZ ,3 ph 5 Lines

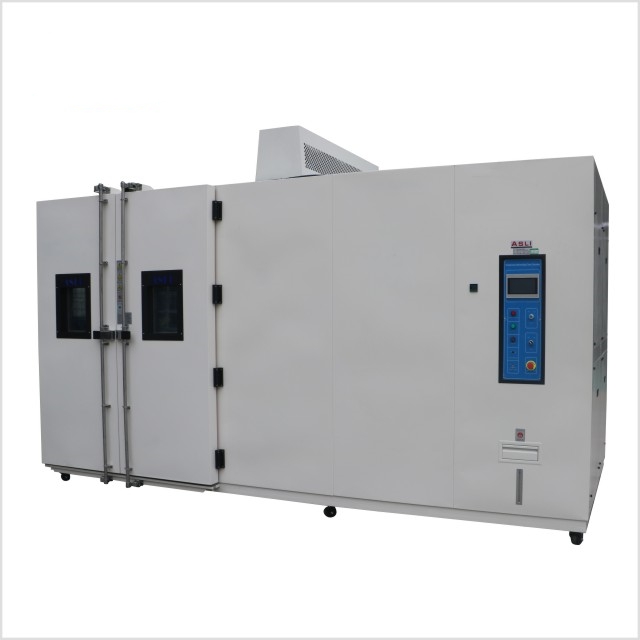

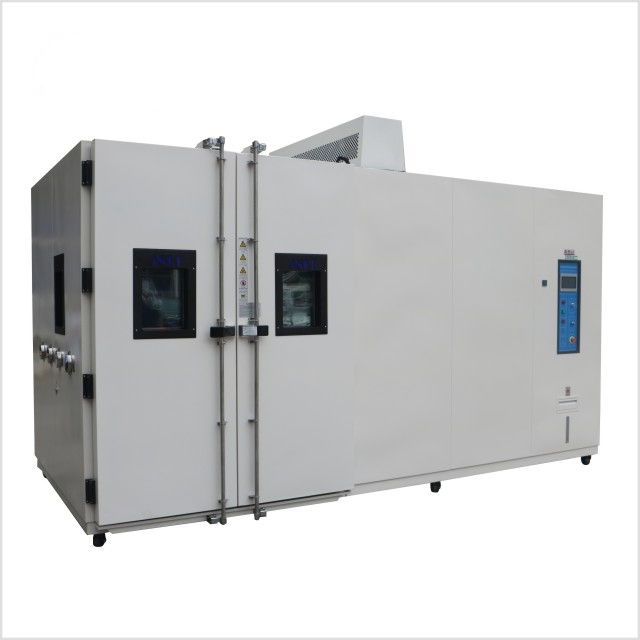

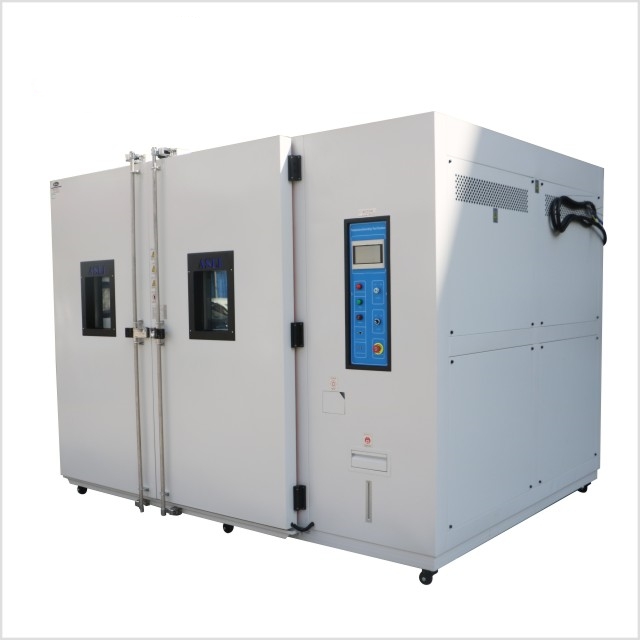

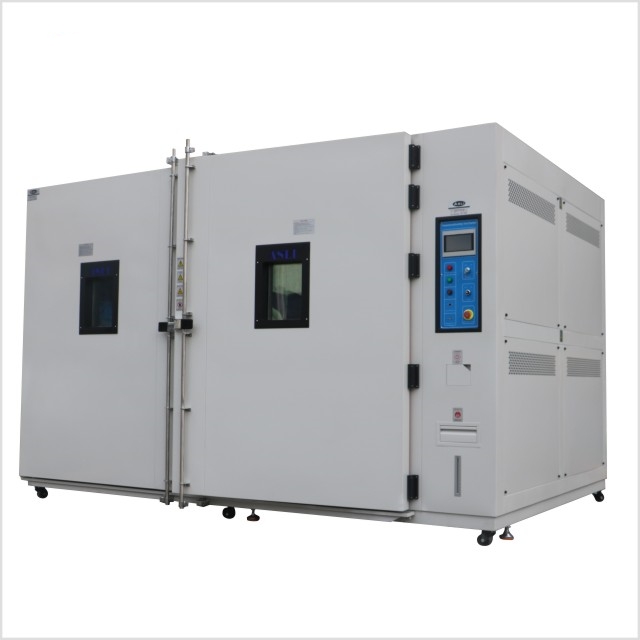

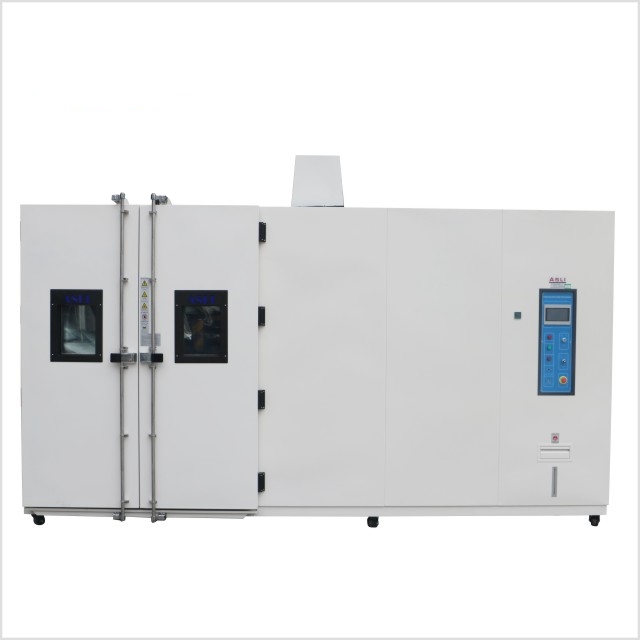

Product Pictures
Walk in Climatic Temperature Humidity Stability Test Chamber for Auto Spare Parts
Walk in Climatic Temperature Humidity Stability Test Chamber for Auto Spare Parts

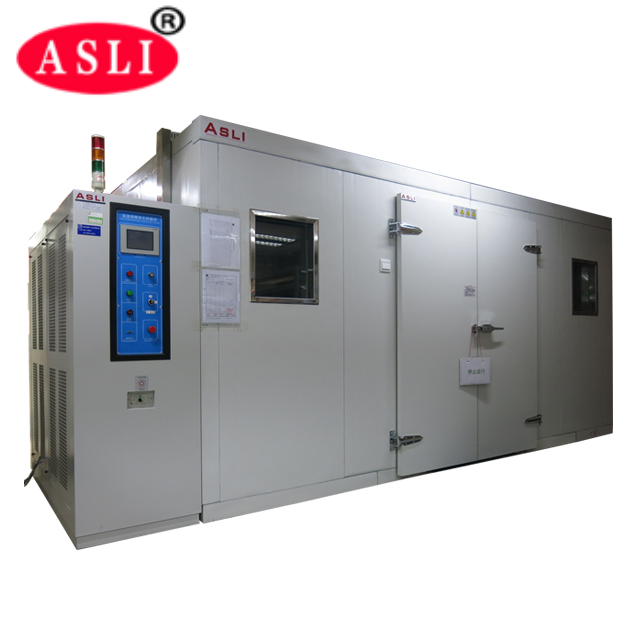

Walk-In Aging Room/Climatic Room in customer factory.
Walk in Climatic Temperature Humidity Stability Test Chamber for Auto Spare Parts

Installation of the walk-in temperature test chamber at the customer's factory

Walk in Climatic Temperature Humidity Stability Test Chamber for Auto Spare Parts



Package: PP film first, and then 10mm foam between the machine and the case, and outside is a standard export plywood case.


Short introduction about ASLi factory:
We have a long history of testing equipment manufacturing. In the past 28 years, we've devoted ourselves to the simulation of environmental testing equipment and mechanical vibration and shock testing machines. The Walk-in Temperature Humidity Stability Test Chamber for Auto Spare Parts is our star product, and we have obtained the CE certification for this machine.


Exhibition:
Walk in Climatic Temperature Humidity Stability Test Chamber for Auto Spare Parts

Please don't hesitate to send your inquiries if any needs about Walk in Temperature Humidity Stability Test Chamber for Auto Spare Parts.
