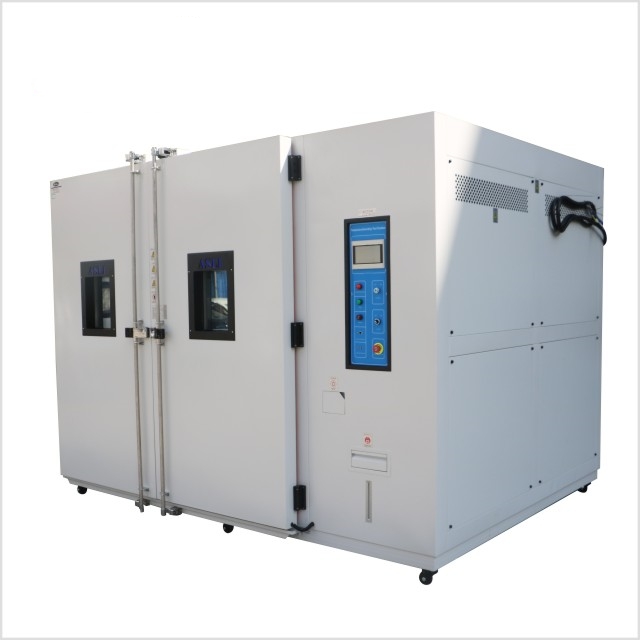

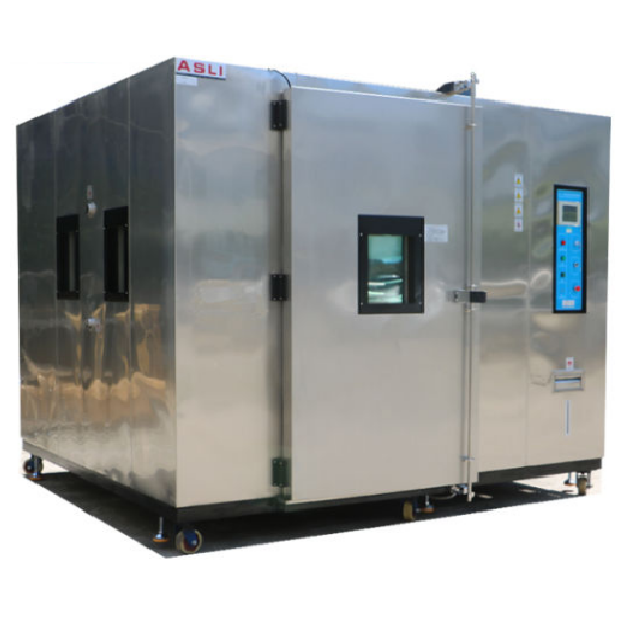

Large Custom Size Environmental Walk in Climate Test Chamber

Large Custom Size Environmental Walk in Climate Test Chamber is suitable for industrial products for humidity and heat test, high temperature test, low temperature test and high and low temperature gradual test, with a wide range of limit temperature (humidity), the actual temperature (humidity) degree of high precision characteristics, walk-in laboratory, large studio for a variety of components, the whole machine to do temperature and humidity test. Studio size can be customized by customers.

Inquire Now

Description

• PID Control of Temperature and Humidity
• Both Temperature and Humidity are Programmable (can have 100 pattern, each pattern has 999 segment)
• With Humidity Sensor
•With thermostats (prevent overheat)
• Test Hole (50 mm diameter)
• With Data Storage function by USB Flash Memory

Large Custom Size Environmental Walk in Climate Test Chamber is suitable for large part and machineries undergone low to high, high to low temperature changing test while related humidity is changing, which can change the room size according to user's need. It applies to Patchwork type chamber, with the feature of nice looking outlook, scientific design for pipe and duct, all in one touch screen control panel and programmable logic controller can satisfy most needs of all kinds of clients

Product Name	Large Program Environmental Walk In Climate Test Chamber
Material	stainless steel
Interior Dimension	W2000×H2500×D2000 mm ( the internal dimension can be customized)
Temperature Range	-40ºC~100ºC
Humidity	20%~95%R.H
Humidity Indication Resolution	±0.1%R.H
Humidity Control Accuracy	±2.5%R.H
Humidity Uniformity	±5.0%R.H.
Cooling Mode	Water cooling
Graphical Display	full display of setting and program curve

Main Parameters:
1 Display Mode: LCD display, touch control
2 Display Accuracy: temperature 0.1%, huidity0.1%
3 Set Accuracy: temperautre0.1ºC, huidity0.1%
4 Display Resolution: temperautre0.1ºC, humidity0.1%
5 Sampling Time: 32 S/Time;
6 Graphical Display: Full display of setting and program curve
7 Program Capacity: Max.269 programs,each program with 50 Segment, max.13450 cycles Programmable Large Custom Size Laboratory Environmental Walk in Climate Test Chamber

Programmable Large Custom Size Laboratory Environmental Walk in Climate Test Chamber

Energy Saving and Noise Reduction
1 Energy Saving: Centrifugal wind circulation system is used, with larger air pressure, larger air volume, high efficiency of heat transfer
2 Large Program Environmental Walk In Climate Test Chamber Noise Reduction
2-1 International famous brand refrigeration compressor
2-2 Low temperature piping with shock absorption, to reduce noise when compressor is operating
2-3 Cryogenic system with mufflers, to effectively reduce the noise when the high pressure refrigerant flow through the pipe
2-4 Sound-absorbing steel plate is used for refrigeration cabinet
2-5 Sound-absorbing material is used in refrigeration cabinet wall, reducing noise to max. Limitation.

Exhibition

If you have any doubt or needs about Large Custom Size Environmental Walk in Climate Test Chamber, please don't hesitate to send your inquiry.
