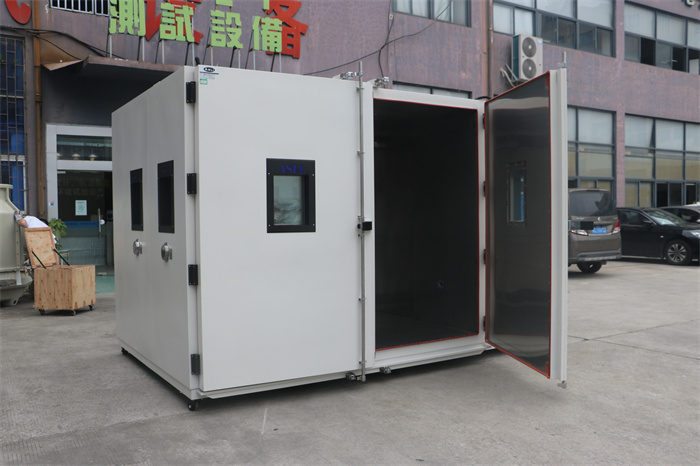

Walk in Chamber Temperature Aging Room

IEC60794 Climatic Walk in Temperature Humidity Accelerated Aging Test Machine for optial fiber drum test

A walk-in Temperature Humidity Climatic Stability Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, and humidity. It is applied for quality inspection for all types of big test samples, such as electronic products, electric appliances, and products from communication, instrument, automobile, plastic, metal, food, chemical,
Building materials, medical, and aerospace industries.



We provide two primary types of walk-in chamber designs:

1. Modular walk-in chambers utilize foam panels that are connected together to form rooms of various sizes.

2 . Welded (Solid) walk-in chambers are fully welded chambers that can withstand high temperature and high humidity, along with fast temperature change rates.


Inquire Now
Description

 IEC60794 Climatic Walk-in Temperature Humidity Accelerated Aging Test Machine for optical fiber drum test

• Protection (phase protection, overheat, overcurrent, etc)

• Water Tank with level detector

• Adjustable Shelf

• With RS-485/232 output to computer

• Window Software

• Remote fault notification(optional)

• With Viewing Window


Application:

Temperature Humidity Controlled Stability Chambers are used to test various types of materials for their tolerances to heat, cold, dry, and humidity. It is applied for quality inspection for all Types of big test samples, Such as electronic products, electric appliances, and products from communication, instrument, Automobile, plastic, metal, food, chemical, building materials, medical, and aerospace Industries.

Product Parameters
Product Name
Large Program Environmental Walk-In Climate Test Chamber
Material
stainless steel
Interior Dimension
W2000×H2500×D2000 mm ( the internal dimension can be customized)
Temperature Range
-40ºC~100ºC
Humidity
20%~95%R.H
Humidity Indication Resolution
±0.1%R.H
Humidity Control Accuracy
±2.5%R.H
Humidity Uniformity
±5.0%R.H.
Cooling Mode
Water cooling

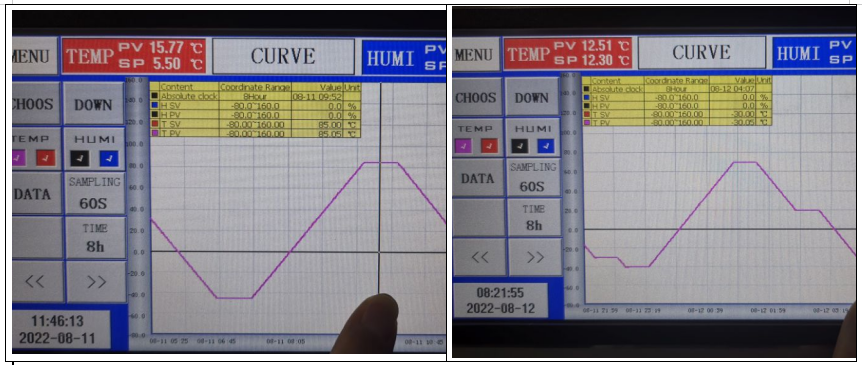

Graphical Display
full display of the setting and program curve

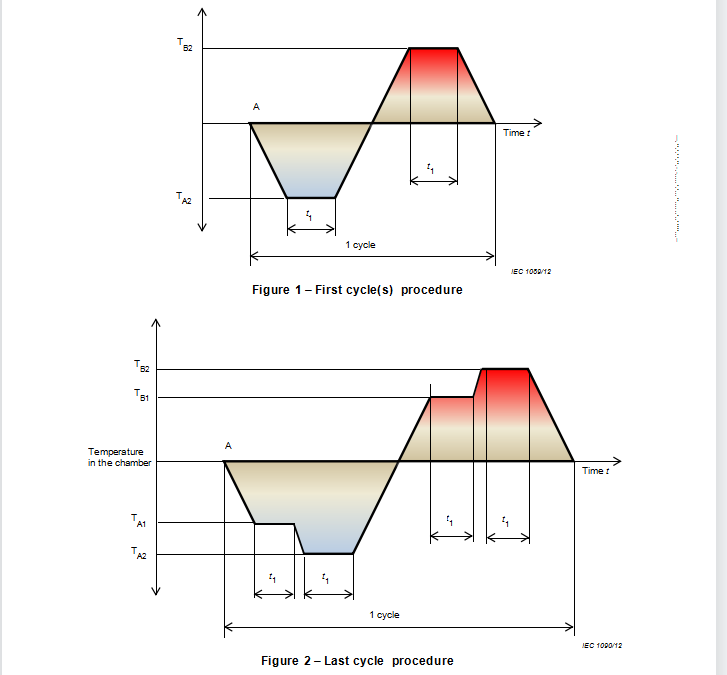

测试曲线 IEC60794 (两个条件).png
