Customized Packing and Shipping Vibration Table Bump Tester

This product is for a variety of packaging materials, PC boards,electrical products as well as the simulated transport vibrationtest of the packaged products, to assess the degree of vibration-resistance.... simulate the transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.

Inquire Now

Description

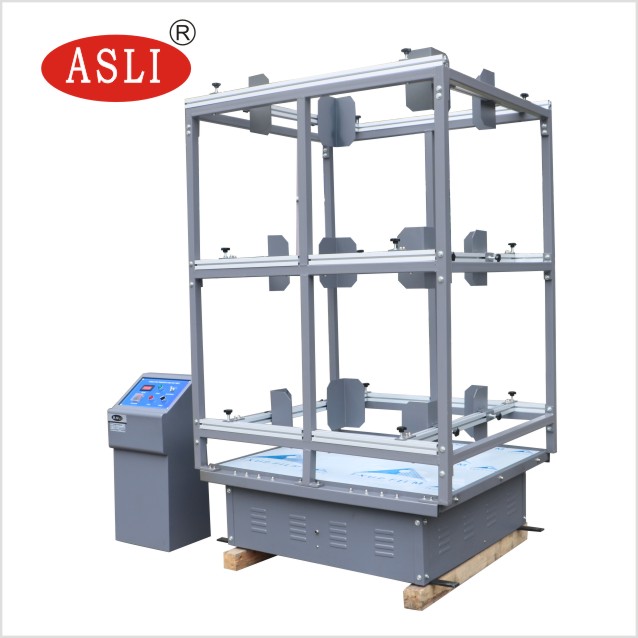

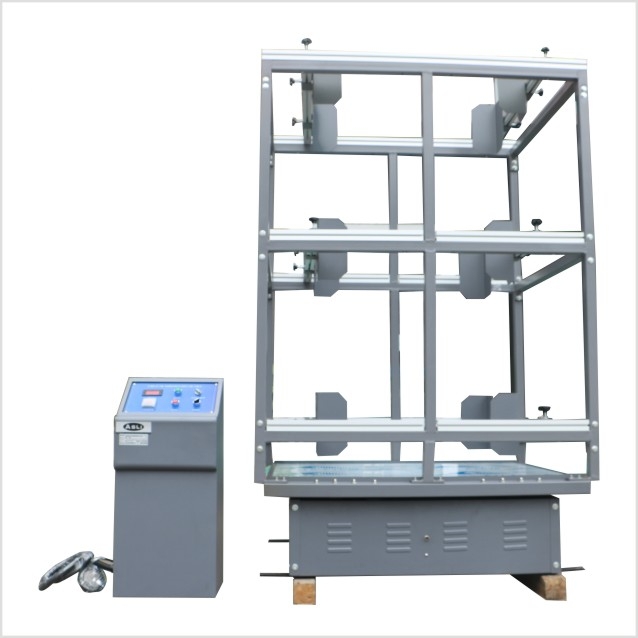

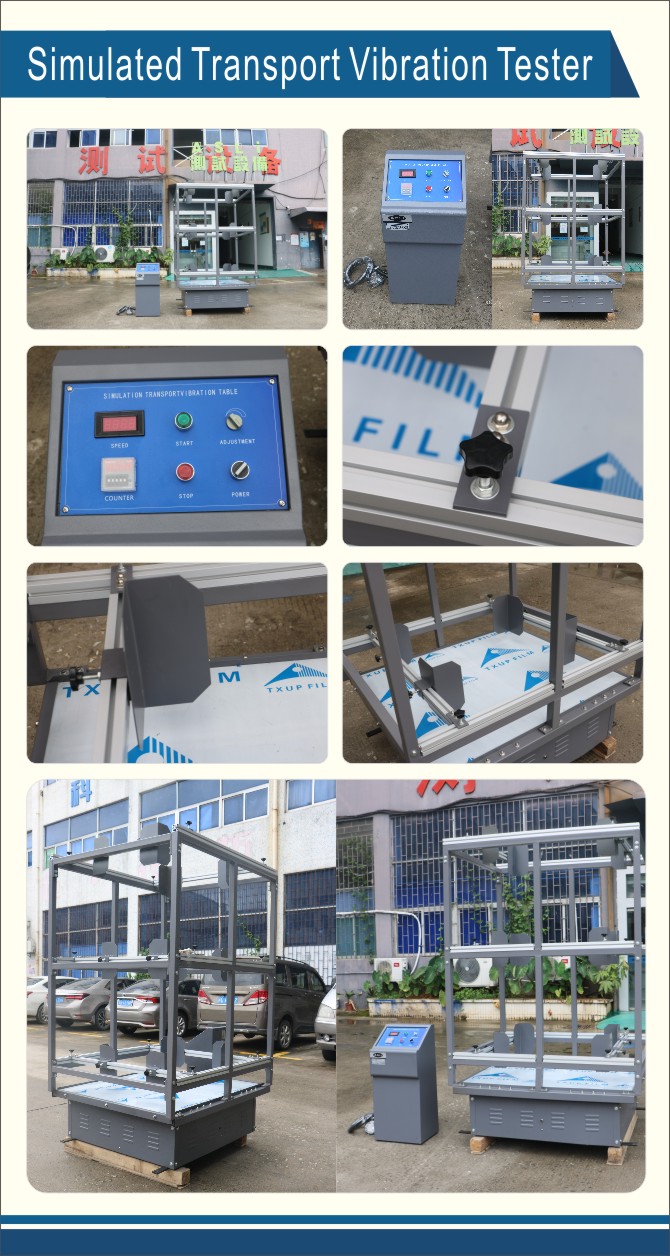

Packing and Shipping Vibration Table Bump Tester

Introduction

This product is for a variety of packaging materials, PC boards,electrical products .as well as the simulated transport vibrationtest of the packaged products, to assess the degree of vibration-resistance.... simulate the  transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.

Features

1. Low price, the price is only 10% of similar products in the United States;
2. Digital instrument display vibration frequency;
3. Synchronous mute belt drive;
4. The specimen is clamped with rail, easy to operate, safe;
5. The base of the machine adopts heavy-duty trench with damping pad, easy installation,  smooth operation
6. DC motor speed, smooth operation, strong load capacity;7. Rotary vibration (commonly known as racing), in line with European and American transport standards

Specification
Packing and Shipping Vibration Table Bump Tester

 Mode
AS-100
AS-200
AS-300
AS-600
    AS-1000
 Load (Kg)
100
200
300
600
1000
  Effective Area WxD (mm)
1200×1000
1200×1000
1200×1300
1300×1400
1500×1500
 Weight (Kg)
200
250
350
450
600
 External Dimension WxHxD (mm)
1300×650×1300
1300×650×1300
1300×650×1400
1400×750×1500
1600×850×1600
 Rotating Speed (RPM)
 150~300
 Amplitude
 25.4mm(1inch), (Accord ASTM.IEC transport standard)
 Time Setting (Approx.)
 0~999hours
 Mode of Vibration
 Reciprocating type

Packing and Shipping Vibration Table Bump Tester
Mode	AS-100	AS-200	AS-300	AS-600	AS-1000
Load (Kg)	100	200	300	600	1000
Effective Area WxD (mm)	1200×1000	1200×1000	1200×1300	1300×1400	1500×1500
Weight (Kg)	200	250	350	450	600
External Dimension WxHxD (mm)	1300×650×1300	1300×650×1300	1300×650×1400	1400×750×1500	1600×850×1600
Rotating Speed (RPM)	150~300
Amplitude	25.4mm(1inch), (Accord ASTM.IEC transport standard)
Time Setting (Approx.)	0~999hours
Mode of Vibration	Reciprocating type
