ISTA 1A 2A ASTM D999 Simulated Transport Vibration Tester

Transportation Simulator/Vibration Tester is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics,equipment,etc.,under simulated transport conditions, according to American and EU transport standard (ASTM,ISTA)

Inquire Now

Description

ISTA 1A 2A or ASTMD999 Transportation Simulator/Vibration Tester

Features

1. Unique design, easy to use

2. Low noise, with buffering function

3. Frame is powder coating, working table is stainless steel with aluminium alloyrail track

Specification

Transport Simulate Vibration Tester Technical Parameters
Mode	AS-100	AS-200	AS-300	AS-600	AS-1000
Load (Kg)	100	200	300	600	1000
Effective Area WxD (mm)	1200×1000	1200×1000	1200×1300	1300×1400	1500×1500
Weight (Kg)	200	250	350	450	600
External Dimension WxHxD (mm)	1300×650×1300	1300×650×1300	1300×650×1400	1400×750×1500	1600×850×1600
Rotating Speed (RPM)	150~300
Amplitude	25.4mm(1inch), (Accord ASTM.IEC transport standard)
Time Setting (Approx.)	0~999hours
Mode of Vibration	Reciprocating type

ISTA 1A 2A & ASTMD999 Test Standard

1 inch 25.4mm fix displacement

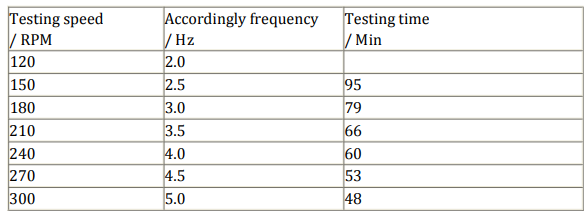

Frequency and Test Time

ISTA 1a 2a ASTM D999 Simulated Transport Vibration Tester

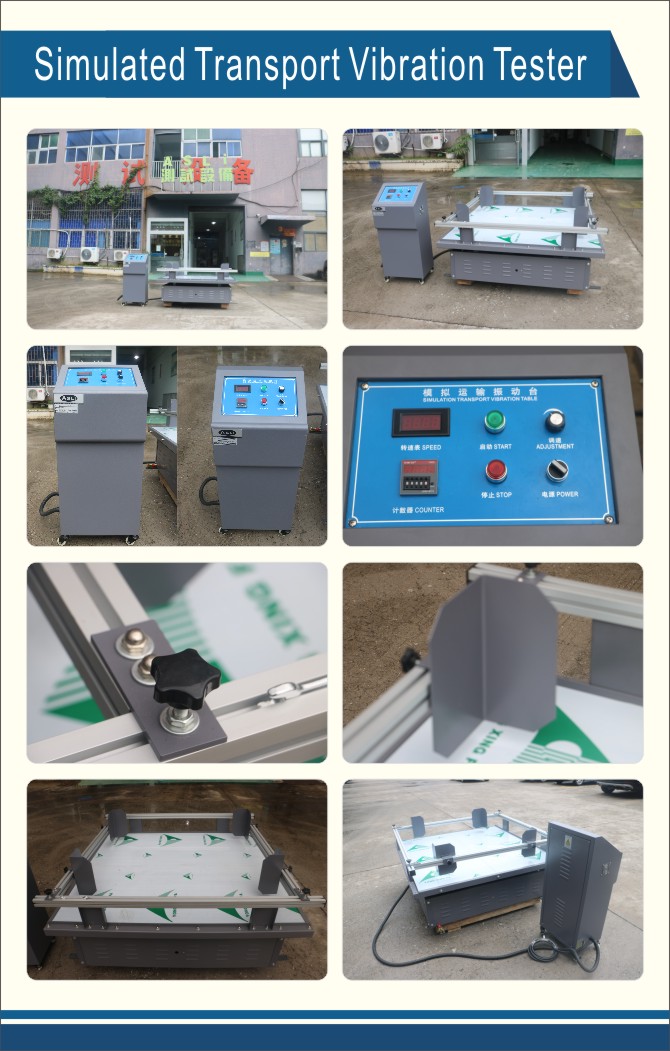

Photo Reference

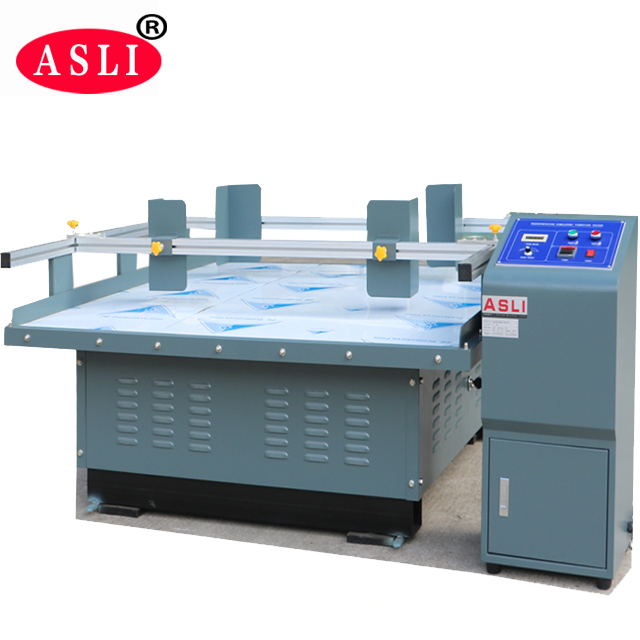

ISTA 1a 2a ASTM D999 Simulated Transport Vibration Tester
