Product Description

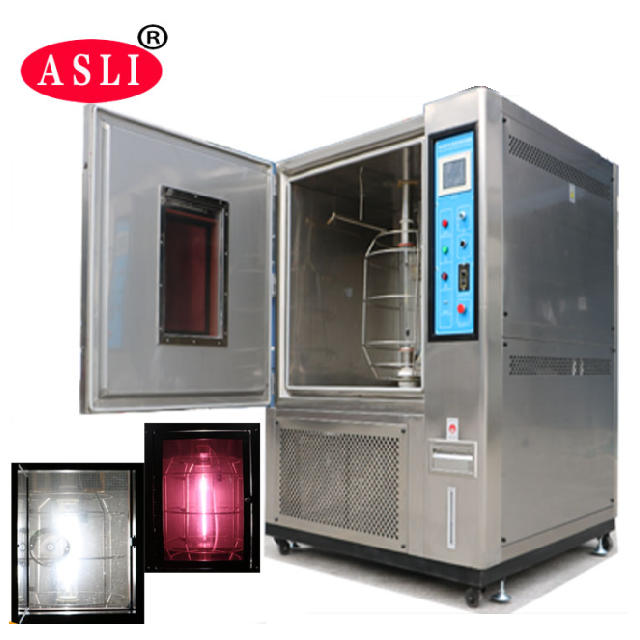

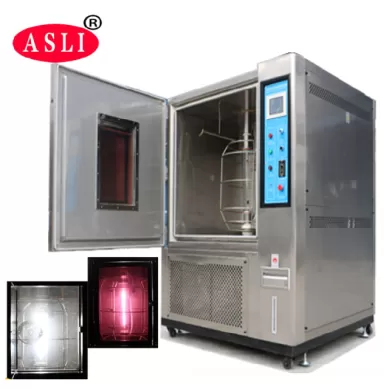

Xenon Arc Lamp Accelerated Weather Aging Test Chamber introduction
1) Xenon Tester is to test the product undergone illumination / rain condensation / temperature / humidity / any other climatic changes.
2) Xenon Tester mainly for the test of non-ferrous/ organic /rubber plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
Product Parameters
Model | XL - 1000 |
Internal Dimension WxHxD (mm) | 1000x1000x1000 |
External Dimension WxHxD (mm) | 1550x2150x1550 |
Tube Using Life (H) | 1500 |
Tube Power | 1KW/6KW |
Illumination Intensity | 340nm 0.35~0.6w/m2 | Full spectrum 1200±200w/m2 |
Lighting Filter Type | Inner filter | Quartz |
Outer filter | Quartz |
Simulated Test Status |
| Test samples: Explore under outer space |
Cooling System | Water cooled or wind cooled |
Temperature Control Range of the Test Cabinet | Black panel temperature : BPT 40~120°C(±3°C) |
Black standard temperature :BST 38~120°C(±3°C) |
Humidity Control Range of the Test Cabinet | Humidity when lighting: 20%R.H.~75%R.H. (± 5%R.H.) |
Humidity when dark: 60%R.H.~95%R.H. (± 5%R.H.) |
Rotating Speed of the Samples Holder (RPM) | 1~5 adjustable |
Diameter of Sample Shelf(mm) | 500±50 |
Sunlight Exposure Cycle | 0.01~999 hours 59mins |
Raining Period/ Time | Raining Period:1~240mins,discontinuous-type, adjustable |
Raining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa |
Spray water flow(L/min) | 1~2.4 |
Explore Area(cm2) | 7500 |
Power | AC 380 V(±10%),50/60HZ , |
Application:
UV + Xenon Accelerated Aging Test Instrument is a comprehensive climate testing machine, it can do climatic aging test, and also can do fading acceleration test under color effect or color changed. The test range including: dying and finishing, printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color. Light fastness and fade grade can be known in short time. Those materials exposed at simulated sunlight to evaluated the material's light fastness performance. To simulate and strengthen the test according to light energy, temperature, rain fall or condensation, humidity, .etc these main climate factors. Adopt simulated sunlight spectrum's Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.
Xenon Arc Lamp Accelerated Chamber Features
1.ASLi Brand xenon lamp weather resistance test chamber with advanced design technology and concept.
2. ASLi Brand xenon lamp weather resistance test chamber with excellent technology of producing and outstanding system of quality management.
3. ASLi Brand xenon lamp weather resistance test chamber can be the most realistic simulated solar spectrum.
including ultraviolet, visible and infrared.
4. ASLi Brand xenon lamp weather resistance test chamber tested in the range of the full spectrum, necessary for most textile sun and color fastness test.
5. ASLi Brand xenon lamp weather resistance test chamber can determine the color fastness and aging to sunlight, weather resistance, etc.

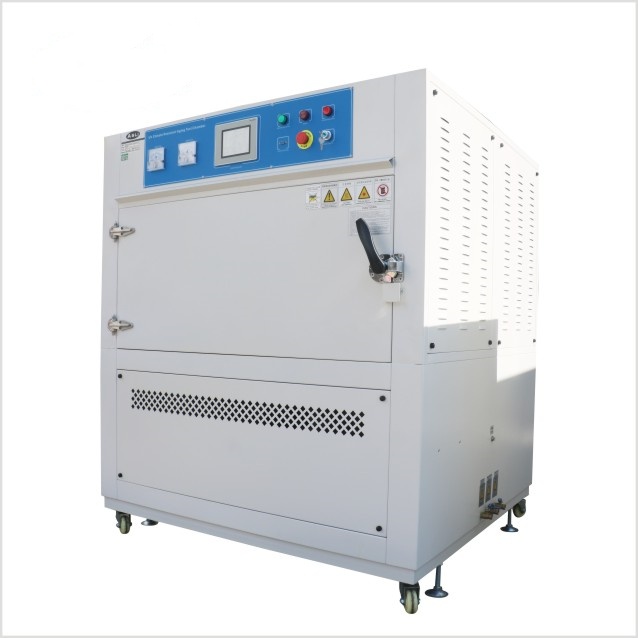

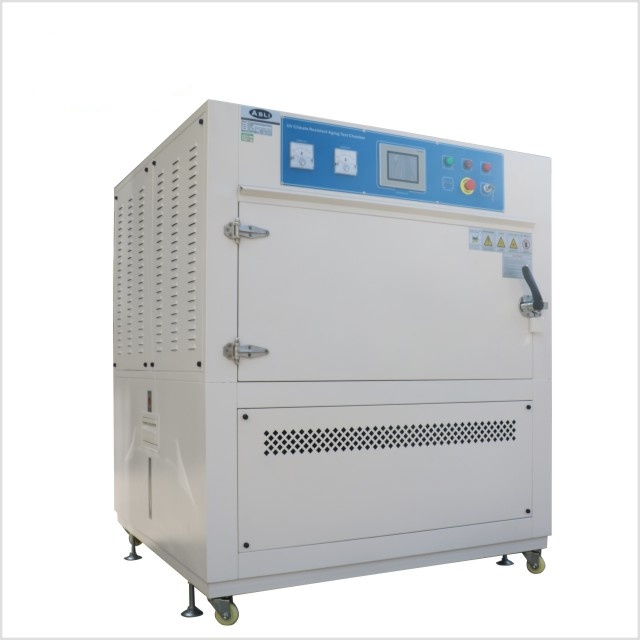

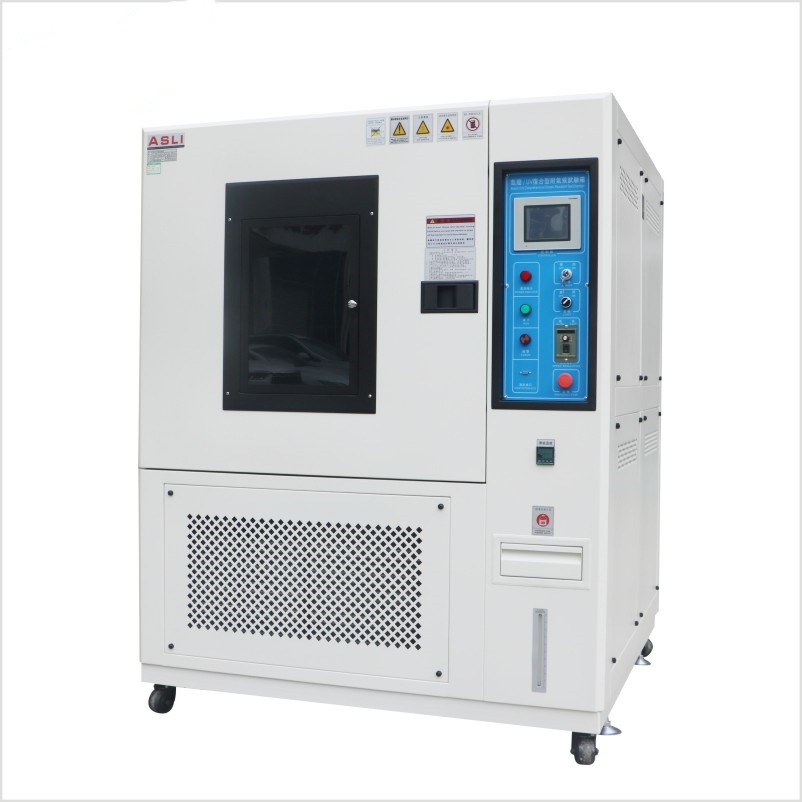

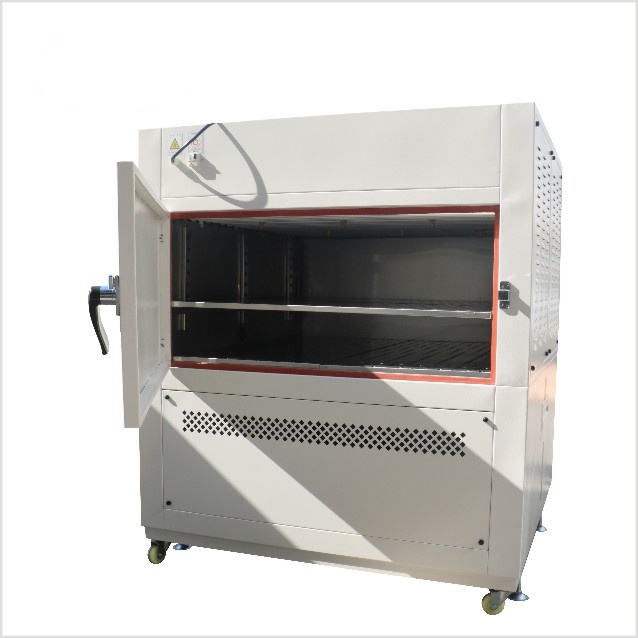

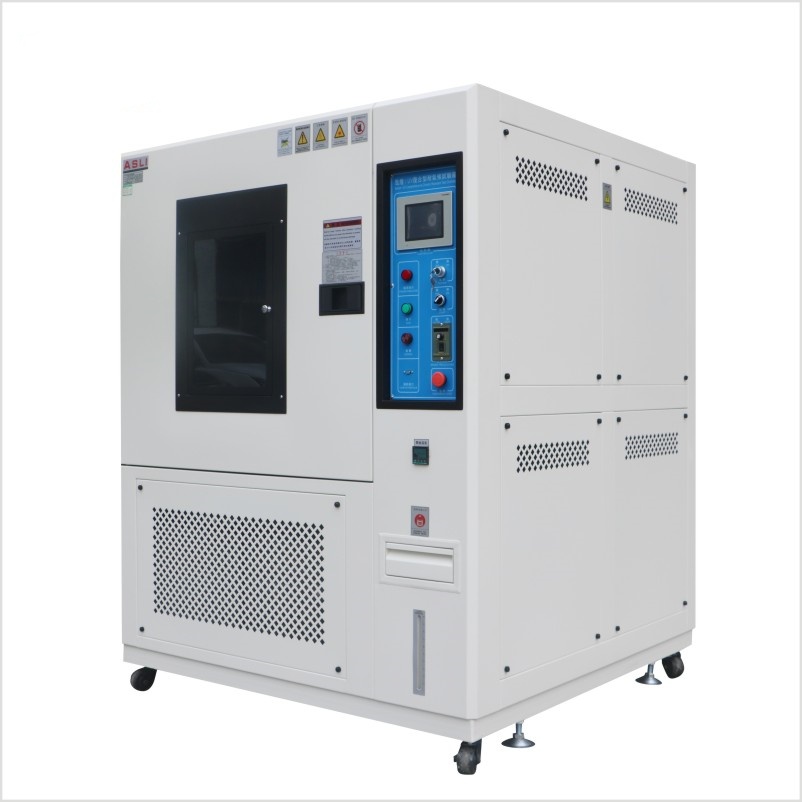

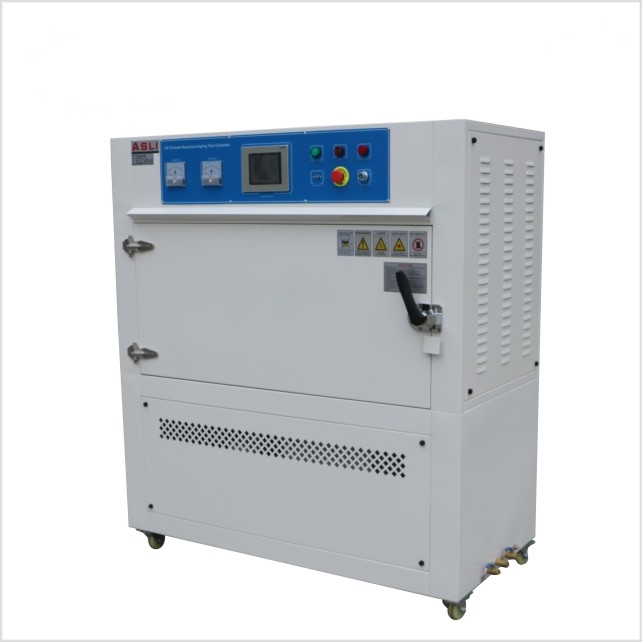

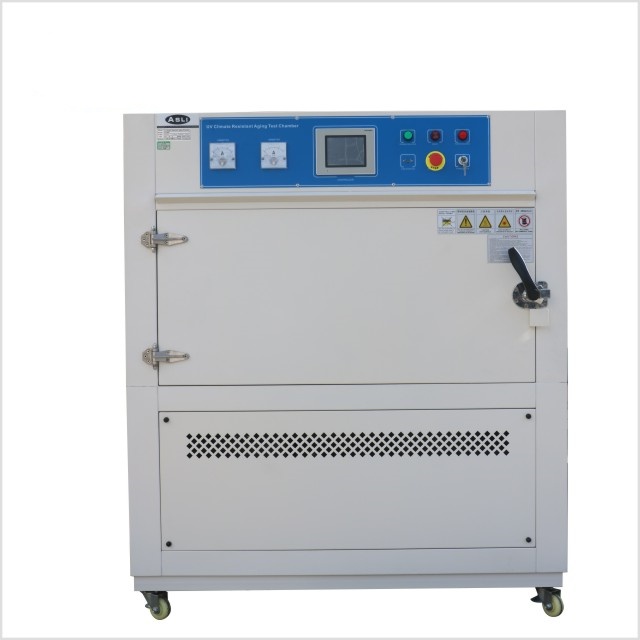

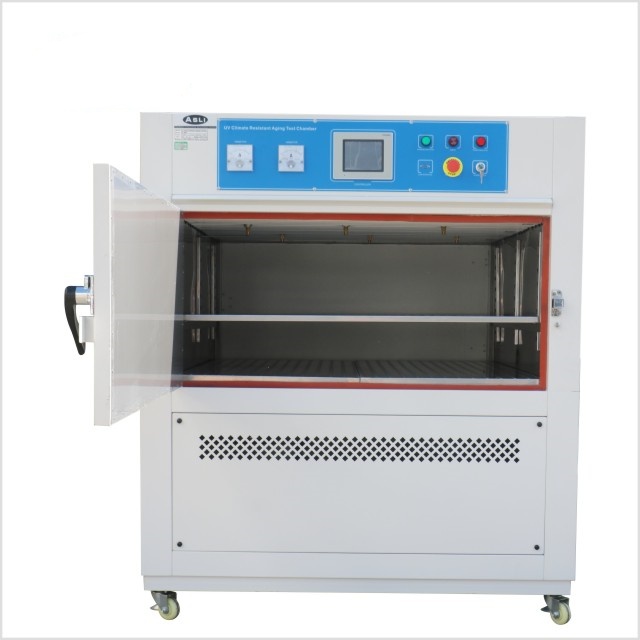

Detailed Photos
Customimzed Size:
Exhibition
Any doubt or needs about Xenon Arc Lamp Accelerated Weather Aging Test Chamber, please feel free to contact us.
