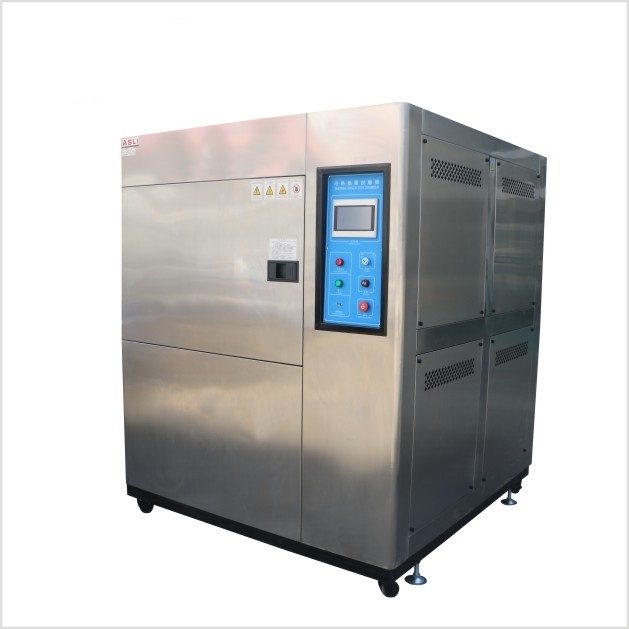

EN60068-2-14 Customization Thermal Shock Resistance Testing Cabinet

EN60068-2-14 Customization Thermal Shock Resistance Testing Cabinet used to test the material structure or composite material in an instant by the extremely high temperatures and very low temperature continuous environment which can endure the degree of order in the shortest possible time to test its thermal expansion and contraction caused by chemical changes physical harm.

The applicable the object material, including metals, plastics, rubber, electronic, ..., etc., can be used as the basis of its product improvement or reference.

Inquire Now

Description

EN60068-2-14 Customization Thermal Shock Resistance Testing Cabinet is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.

IEC EN60068-2-14 Rapid Temperature Change Test:
IEC En60068-2-14 Customization Thermal Shock Resistance Test Equipment for Rapid Temperature Change Testing
Our Thermal shock Test Chamber's Test Data:

Thermal Shock Test Chamber Technical Parameters
Model	TS-42(A~C)		TS-80(A~C)		TS-150(A~C)		TS-252(A~C)	TS-450(A~C)
Internal Dimension WHD ( mm)	400350350		500400400		600500500		700600600	800750750
External Dimension WHD (mm)	140018001400		155019501550		160020001700		170021001750	180022001900
Temperature Range of Testing zone	Type A:-40 degree C ~+150degree C (200degree C is Optional)		Type B:-55degree C ~ +150degree C (200degree C is Optional)				Type C:-65degree C ~+150degree C (200degree C is Optional)
	High temperature Range of Testing zone:+60degree C~+150degree C(200degree C is Optional); Low Temperature Range of Testing Zone: -10degree C~-40degree C/-55degree C/-65degree C
Exposure Time of High/ Low Temperature	Exposure Time of High Temperature:+60degree C~+150degree C (200degree C is Optional) 30Mins
	Exposure Time of Low Temperature:-10degree C~Type A:-40degree C/ Type B -55degree C/ Type C -65degree C 30Mins
Temperature of Heat-Storing Slot/ Heating Time	RT~200degree C/About 45mins
Temperature of Cool-storing Slot/ Cooling Time	RT~-75degree C/ About 100mins
Temperature Recovery Time/ Conversion Time	≤5min/≤5sec
Control Accuracy / Distribution Uniformity	±0.5degree C/±2degree C
Internal and External Material	Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Insulation Material	High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials
Mechanics	P.I.D+S.S.R+ Micro-computer balanced temperature control system
Cooling System	Semi-hermetic double-stage compressor(water-cooled type) / Hermetic double-stage compressor (air-cooled type)
Security Protection Devices	Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm
Accessories	Viewing window(special order)
Compressor	French "Tecumseh" Brand, Germany Bizer Brand
Power	AC220V 1 phase 3 lines,50/60HZ, AC380V 3phase 5 lines,50/60HZ
Weight (Approx)	450	600		750		950

IEC En60068-2-14 Customization Thermal Shock Resistance Test Equipment for Rapid Temperature Change Testing

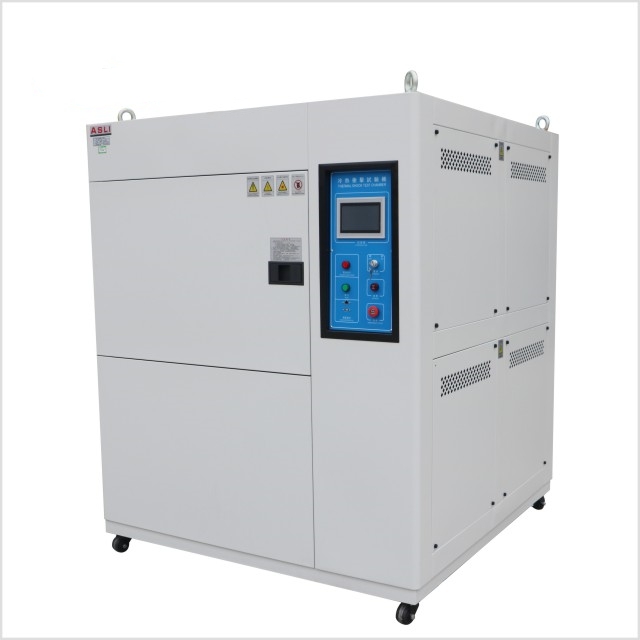

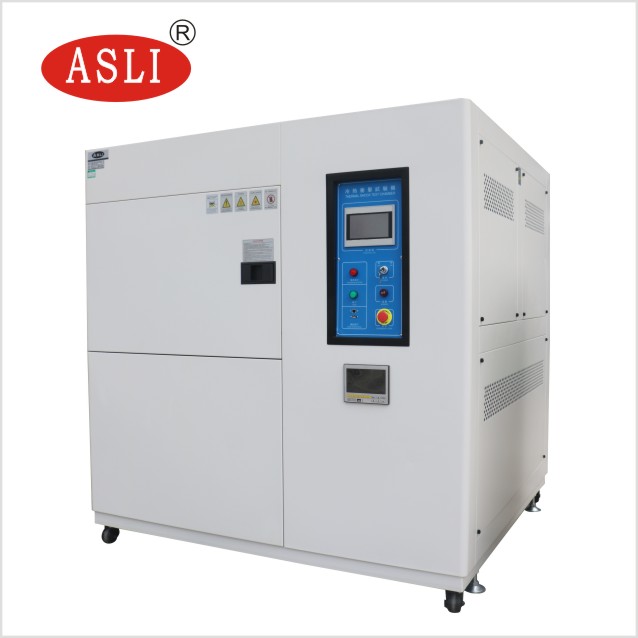

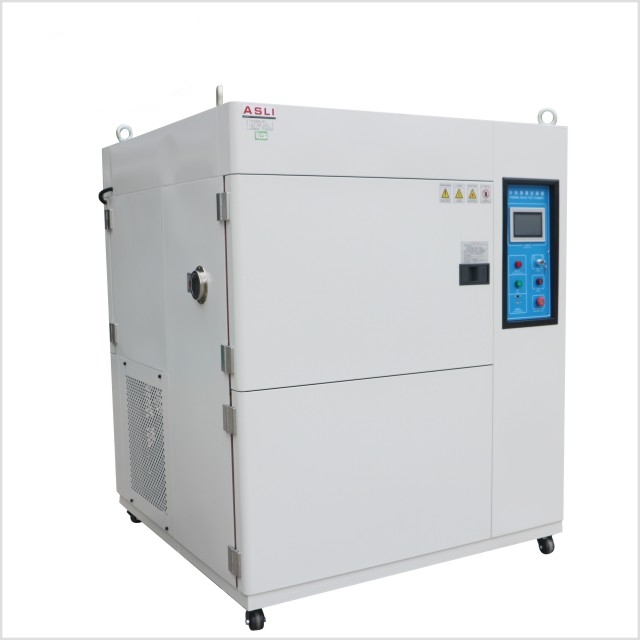

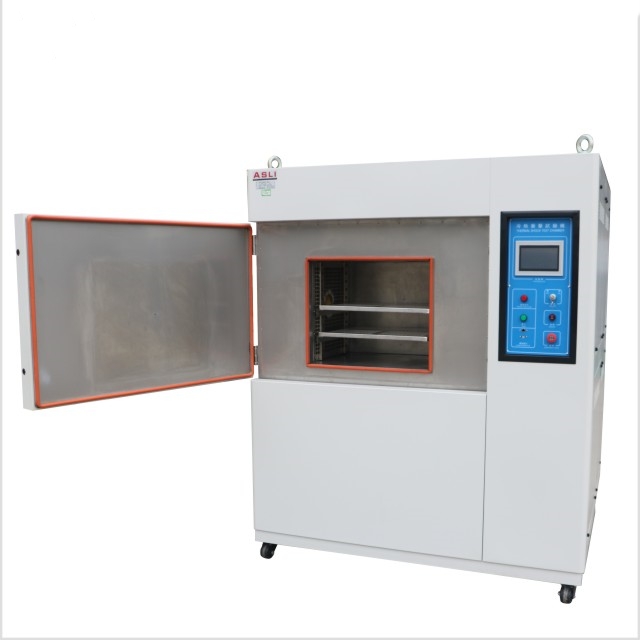

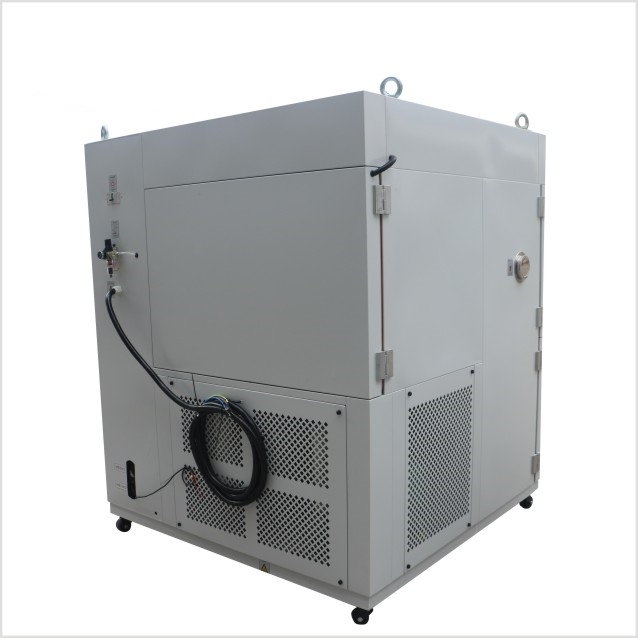

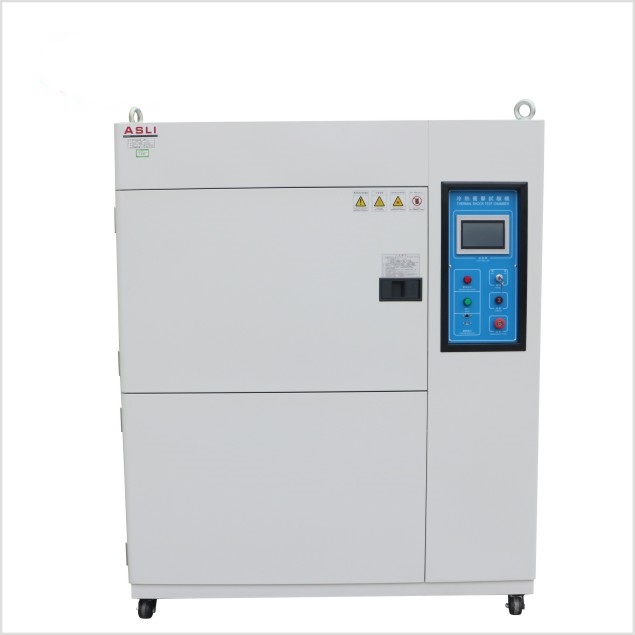

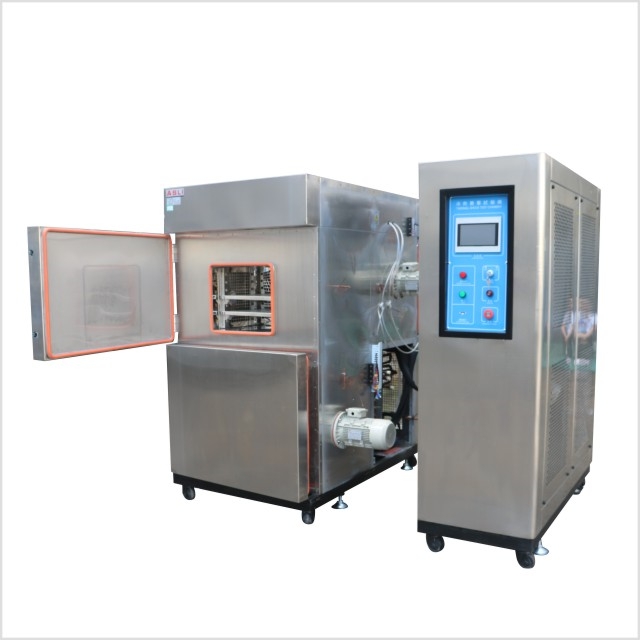

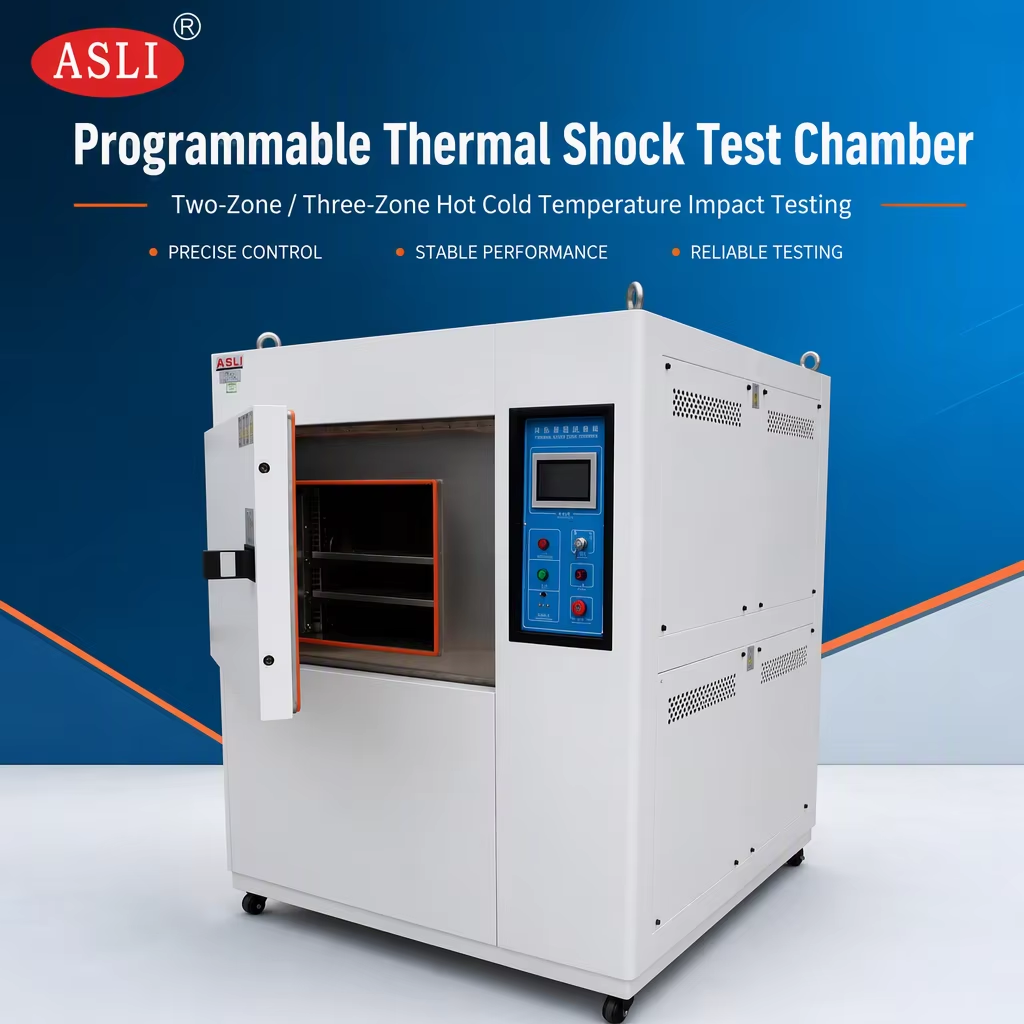

EN60068-2-14 Customization Thermal Shock Resistance Testing Cabinet

Thermal Shock Resistance Test Equipment Features:
1. It is divided into three zones: High temperature zone, low temperature zone, and testing zone. The test sample is in static mode.
2. Using touch-control graph control as operation interface, easy to operate.
3. Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4. For high temperature shock or low temperature shock, max. Time is up to 999H, and max. Circulation cycles are 9999 times.
5. The system can be used for automatic Circulation Shock or manual selective shock.
6. Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7. Can entering normal temperature. RS-232 and RS-485 communication.

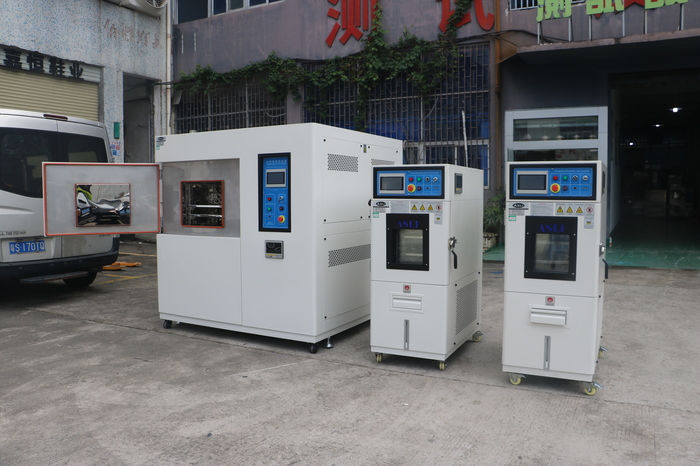

Customers' Visit ASLi Company:

IEC En60068-2-14 Customization Thermal Shock Resistance Test Equipment for Rapid Temperature Change Testing

Please feel free to contact us if any doubt or needs about EN60068-2-14 Customization Thermal Shock Resistance Testing Cabinet.
