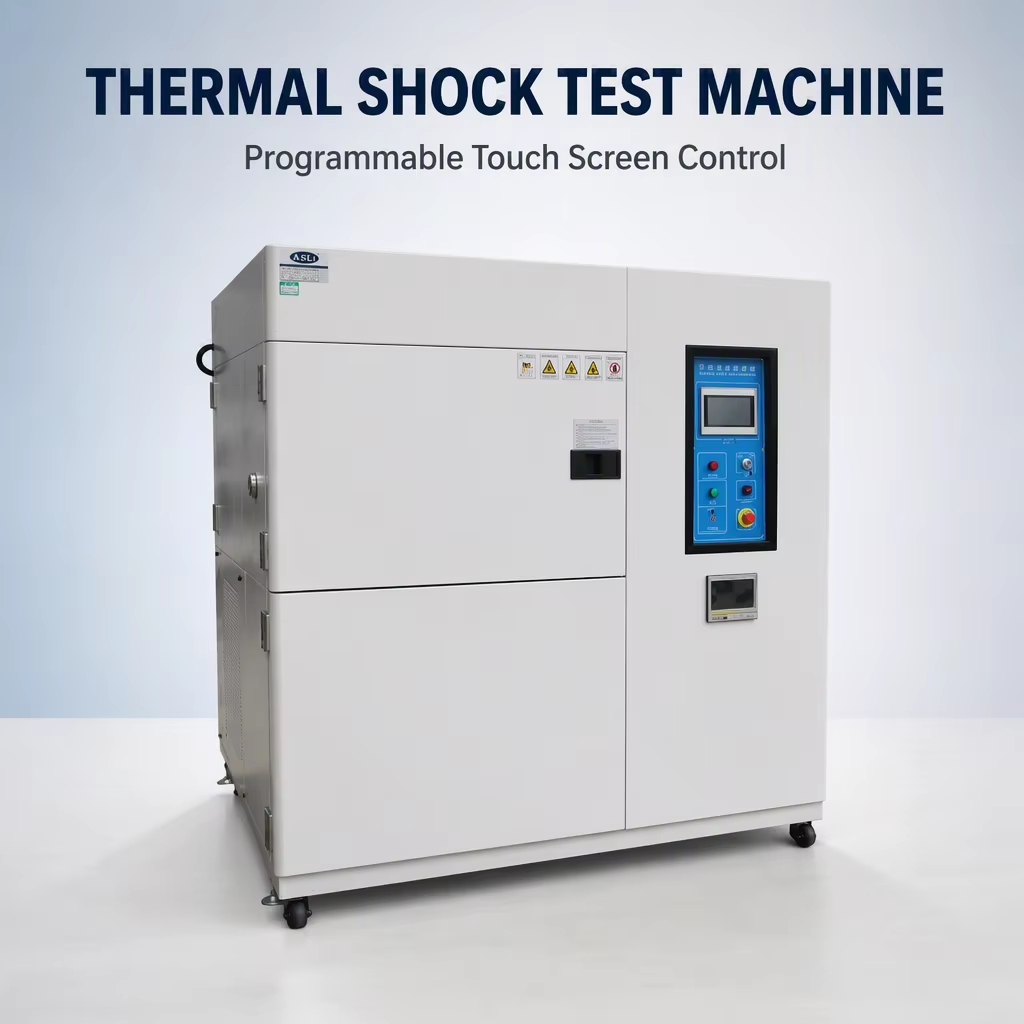

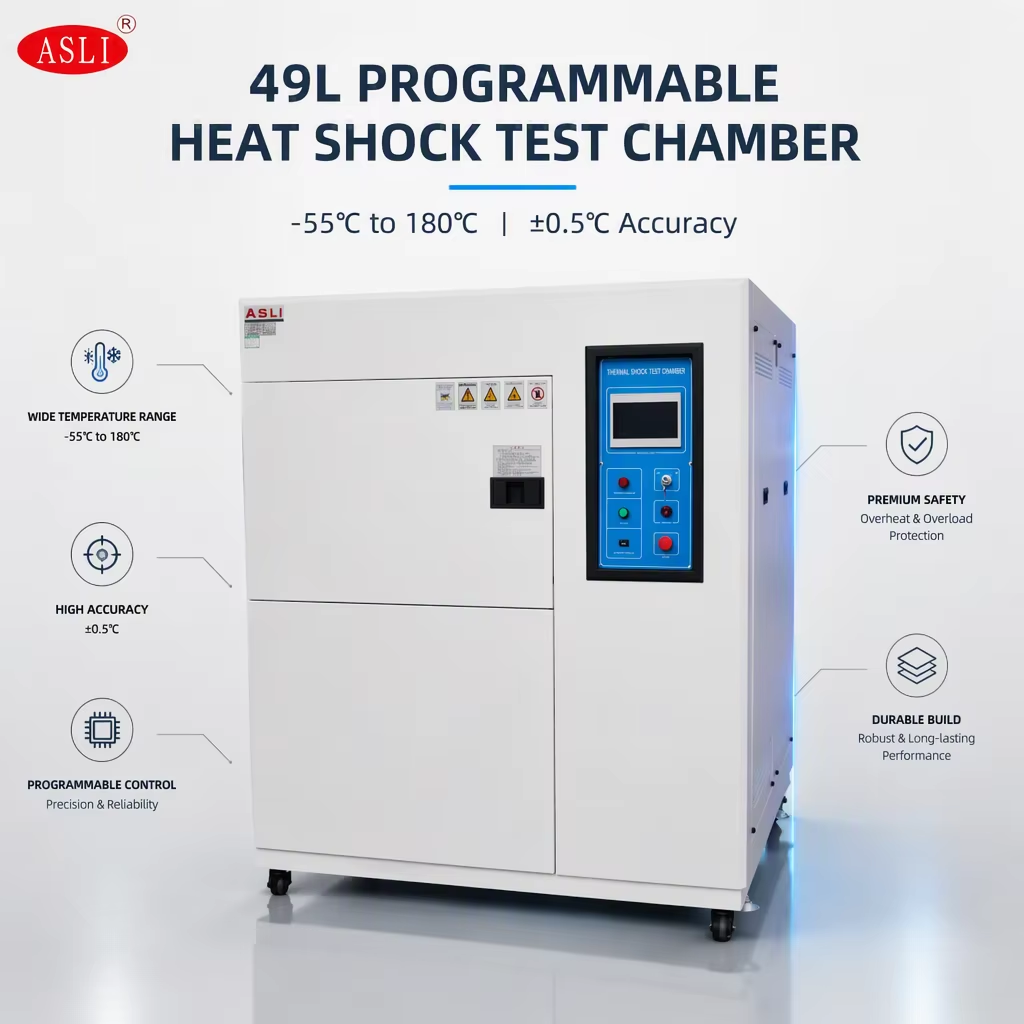

Air Cooling Programmable Thermal Shock Test Equipment

Air Cooling Programmable Thermal Shock Test Equipment is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.

Inquire Now

Description

Air Cooling Programmable Thermal Shock Test Equipment is also called hot and cold impact testing machine, hot and cold impact machine, temperature impact test box, used to test the material structure or composite materials, in a moment by very high temperature and very low temperature of the continuous environment some can endure the extent, reflected in the shortest possible time to test its thermal expansion caused by chemical changes or physical damage.

The applicable objects include metals, plastics, rubber, electronic materials, etc., which can be used as the basis or reference for the improvement of their products. Air Cooling Programmable Thermal Shock Tester for Light Emitting Diode

Name	temperature thermal shock test chamber
Model	TS-80(A~C)	TS-150(A~C)	TS-252(A~C)
Internal Dimension WxHxD (mm)	500x400x400	600x500x500	700x600x600
External Dimension WxHxD (mm)	1550x1950x1550	1600x2000x1700	1700x2100x1750
Temperature Range of Testing zone	Type A:-40 ºC~+150ºC ( 200ºC is Optional)	Type B:-55ºC ~+150ºC ( 200ºC is Optional )	Type C:-65ºC ~+150ºC ( 200ºC is Optional)
Temperature Range of Testing zone	High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional); Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC
Control Accuracy / Distribution Uniformity	±0.5ºC/±2ºC
Internal and External Material	Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Mechanics	P.I.D+S.S.R+ Micro-computer balanced temperature control system
Cooling System	Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

Thermal Shock Test Machine Features

1. Use the aluminum piece to verify the machine load capacity (not plastic load)

2. sensor placement test area rather than the wind crossing, in line with the effectiveness of the experiment

3. The temperature box impact is the test area humidity conforms to the standard requirements

4. can expand the surface temperature of the product to be measured, control the dwell time to shorten the test time

5. can be directly a number of international norms and test conditions

6. Execute low temperature 0 degree impact and save electricity

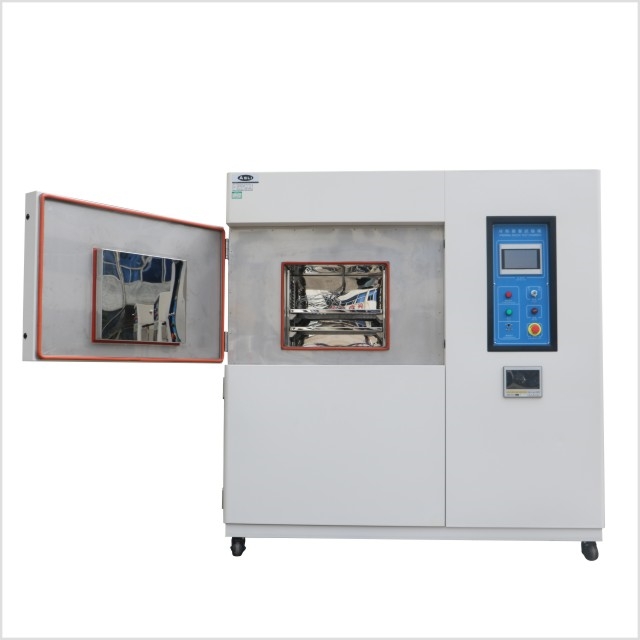

TS (170).JPG

SHOCK CHAMBER (14).JPG

Air Cooling Programmable Thermal Shock Tester for Light Emitting Diode

Air Cooling Programmable Thermal Shock Tester for Light Emitting Diode

Customer Visit ASLI

If you need more information about Air Cooling Programmable Thermal Shock Test Equipment, please don't hesitate to send your inquiry.
