Temperature Humidity Vibration Combined Test System
Online Service

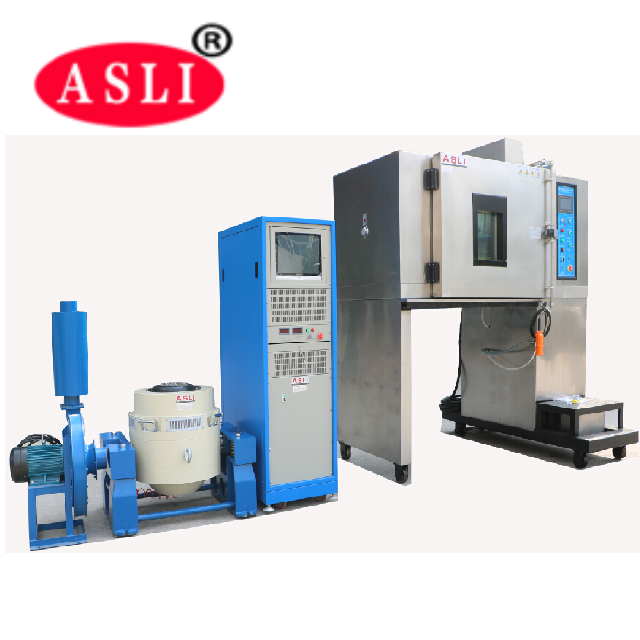

Vertical/Horizontal Vibration Temperature Humidity Composite Vibration Testing Equipment

Vertical/Horizontal Vibration Temperature Humidity Composite Vibration Testing Equipment meets national standards and meets specific testing requirements. It is widely used in electrical and electronic products, automotive parts, materials, etc. through a combination of high and low temperature, low temperature, temperature change, impact, wet heat vibration and other environmental reliability tests.

Inquire Now
Description
Product Description

Vertical/Horizontal Vibration Temperature Humidity Composite Vibration Testing Equipment matched with appropriate vibration test bench to meet with respective corresponding environmental test requirements of temperature, humidity and vibration; extensively applied in aviation and aerospace, shipping, electronics ,automobile car, telecommunications, industry.

Environmental Vibration Chamber have been the workhorses of the environmental test chamber industry. Originally created to meet military test standards, their flexible design has made them suitable for a wide variety of applications. Fast temperature changes of 3 to 15°C/m. are possible, even with significant loads. The chambers have a removable floor, allowing integration with vibration test systems. Custom designs are available, allowing configurations to meet your exact requirements.

Product Parameters
ModelTHV-343(A~F)THV-1000(A~F)THV-3375(A~F)
Internal Dimension
W×H×D(mm)
700×700×7001000×1000×10001500×1500×1500
External Dimension
W×H×D(mm)
900×1950×21001300×2200×24001800×2400×3000
Temperature RangeLow temperature: (A:25ºC; B:0ºC; C:-20ºC ; D: -40ºC; E: -60ºC; F: -70ºC)
High temperature:100ºC(150ºC)
Humidity Range20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
 Analytic Accuracy / Distribution uniformity of temperature and humidity0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H.
Control Accuracy of temperature and humidity±0.5ºC; ±2.5% R.H.
Temperature Rising / Falling
Speed Rate

Temperature rising approx.  0.1~3.0ºC/mi

 temperature falling approx.  0.1~1.5ºC/min;

(faster temperature change rate is optional)
Internal and External MaterialMaterial of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling SystemWind cooling or water cooling/single segment compressor(-40ºC, double segment compressor -70ºC)
Protection DevicesFuse-free switch, overloading protection switch  for compressor,high and low voltage coolant protection switch, over- humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional AccessoriesInner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier
Vibration Test EquipmentChoose proper vibration test bench according to customer's  test condition , the technical parameters please take  Electrodynamics Type Vibration Tester's parameters in this catalog for reference
PowerAC380V 3∮ 5 Lines, 50/60HZ



Programmable Touch Screen Temperature Humidity Vibration Integrated Environmental Vibration Test Equipment
Temperature Humidity Vibration Integrated Environmental Vibration Test Equipment Features:
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console
2. To make it convenient for operation; original refrigerating compressor unit and its main accessories imported from abroad
3. Imported LCD color touch screen controller capable of automobile control of temperature humidity programs;
4. With R232 Telecommunication interface. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool
5.Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration

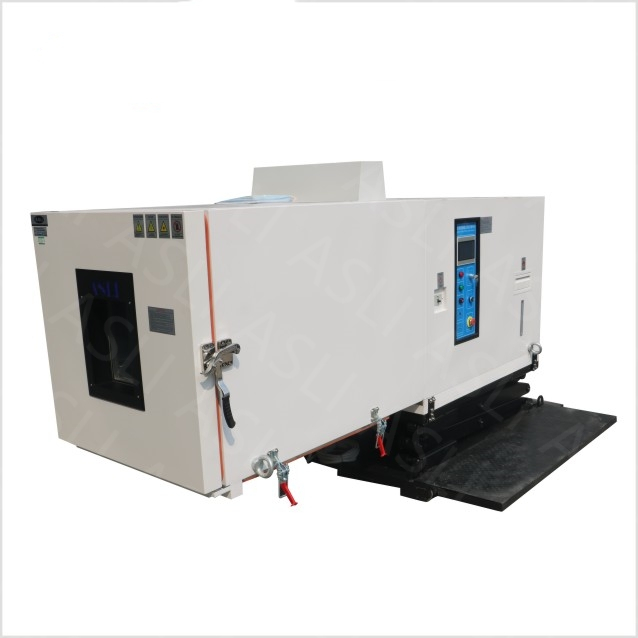

Detailed Photos

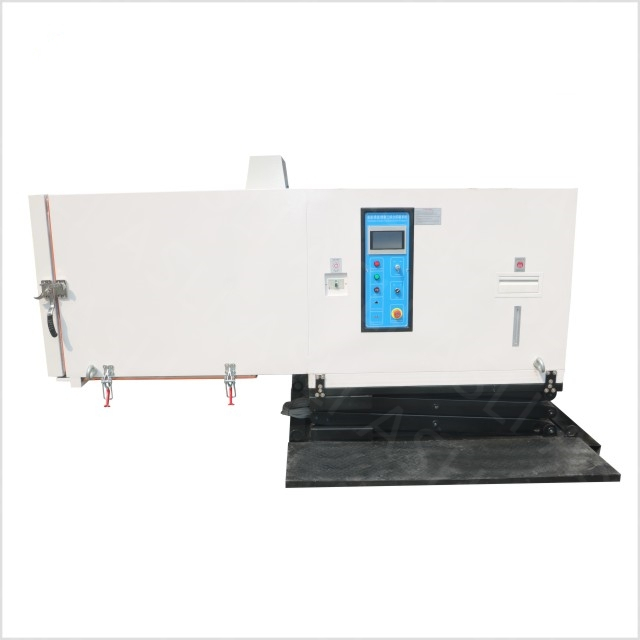

Vertical/Horizontal Vibration Temperature Humidity Composite Vibration Testing Equipment

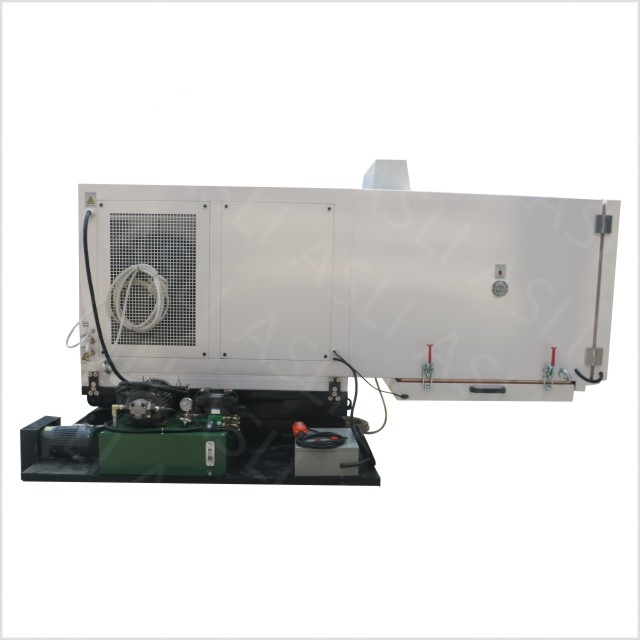

Programmable Touch Screen Temperature Humidity Vibration Integrated Environmental Vibration Test Equipment

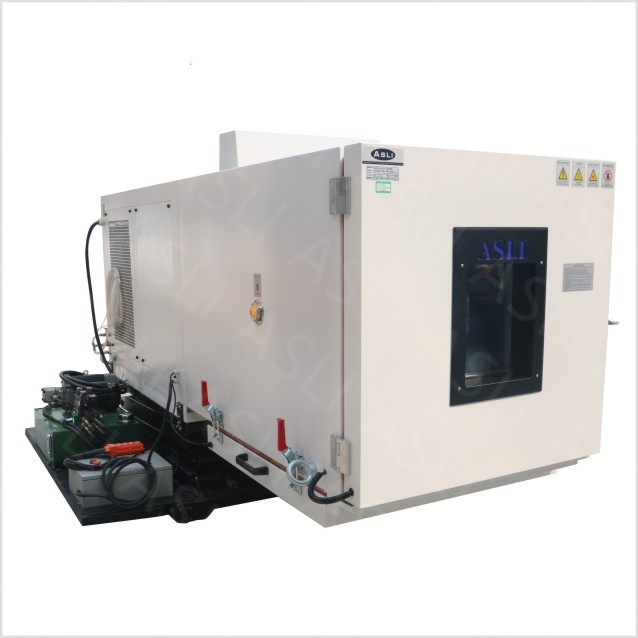

Programmable Touch Screen Temperature Humidity Vibration Integrated Environmental Vibration Test Equipment

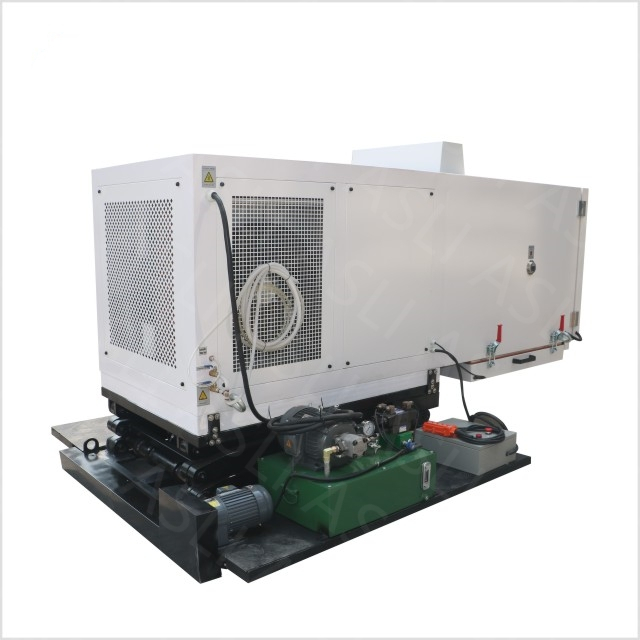

Programmable Touch Screen Temperature Humidity Vibration Integrated Environmental Vibration Test Equipment

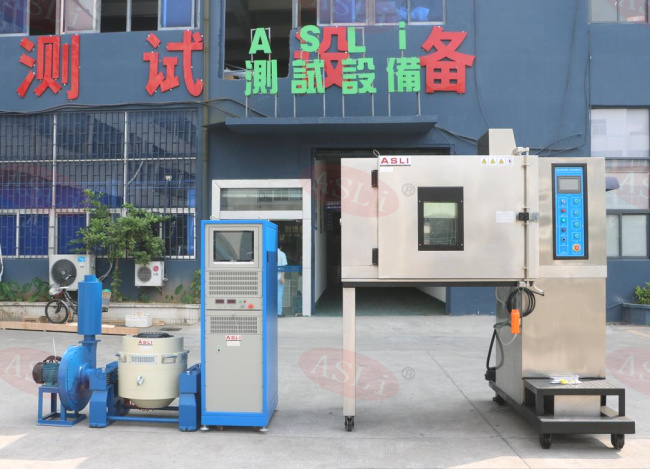

Exhibition

Programmable Touch Screen Temperature Humidity Vibration Integrated Environmental Vibration Test Equipment

If you have any question about our Vertical/Horizontal Vibration Temperature Humidity Composite Vibration Testing Equipment, please kindly contact with us , thank you.
