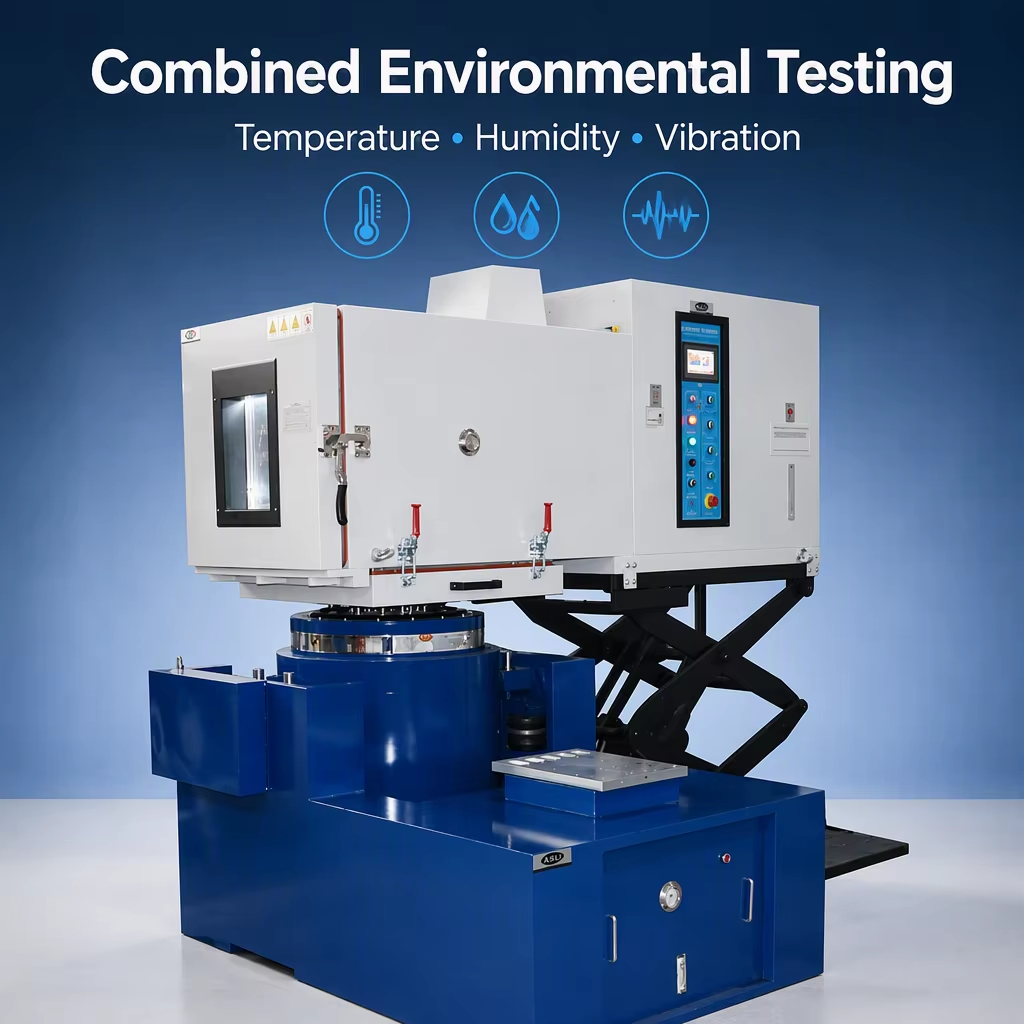

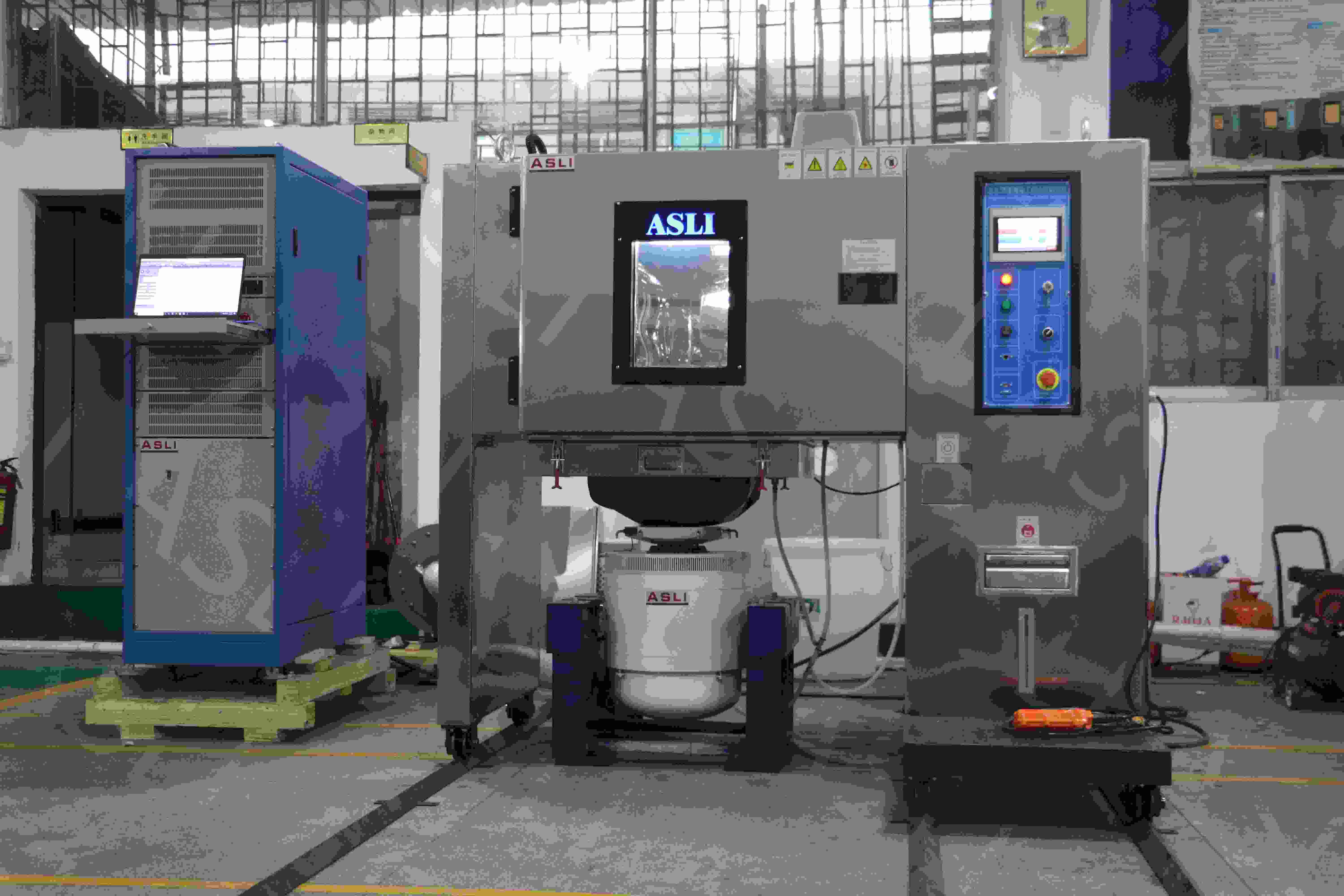

ISO 16750-3 Temperature Humidity Combined Vibration Test System simulates the condition of temperature, humidity, and vibration to test materials or products' properties. It is widely applied to aerospace products, information electronic instruments and meters, materials, electrical, electronic products, all kinds of electronic SAP parts in temperature, humidity, vibration test under the environment of the various performance indicators.
When the test piece is tested by Temperature Humidity Combined Vibration Test System, the vibration (sinusoidal or random), temperature (High or low temperature), humidity and electric stress are combined and applied to the test piece according to the specified period. It truly reflects the environmental conditions of the test piece during transportation and use.
ISO 16750-3 Temperature Humidity Combined Vibration Test System matched with an appropriate vibration test bench to meet with Respective corresponding environmental test requirements of temperature, humidity, and vibration; Extensively applied in aviation and aerospace, shipping, electronics, automobile, telecommunications, Industry.
Environmental Vibration Shaker Combined Test Chamber Feature:
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design;
Independent console
2. The original refrigerating compressor unit and its main accessories are an internationally famous brand;
3. LCD color touch screen controller, capable of automatic control of temperature and humidity programs;
4. RS-232 communication. To meet customers' unique demands, users may choose from different models
Of vibration test bench is used to ensure that, in addition to good cooling,
5. Heat and air seal system, this vibration bench will also boast a remarkable effect of mechanical vibration
ISO 16750-3 Temperature Humidity Combined Vibration Test System Parameter | |||
Model | THV-512(A~F) | THV-1000(A~F) | THV-1500(A~F) |
Internal Dimension W*H*D(mm) | 800*800*800 | 1000*1000*1000 | 1500*1500*1500 |
External dimension W*H*D (mm) | 1100*1950*2100 | 1300*2200*2400 | 1800*2400*3000 |
Temperature Range | Low temperature: (A:25degree C; B:0degree C; C:-20degree C; D: -40degree C; E: -60degree C; F:-70degree C) High temperature:100degree C(150degree C) | ||
Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, which needs a Dehumidifier) | ||
Indication Resolution/ Distribution uniformity of temperature and humidity | 0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H. | ||
Control the Accuracy of temperature and humidity | ±0.5degree C; ±2.5% R.H. | ||
Temperature Rising/ Falling Velocity | The temperature is rising approximately. 0.1~3.0degree C/min ; The temperature is falling approximately. 0.3~1.0degree C/min; (Faster temperature change rate is optional ) | ||
Internal and External Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | ||
Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetate foam insulation materials | ||
Cooling System | Wind cooling or water cooling; single segment compressor for -40degree °C, double segment compressor for -70degree °C | ||
Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection | ||
Optional Accessories | Inner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier | ||
Vibration Test Equipment | Choose a proper vibration test bench according to the customer's test condition. The technical parameters, please take the Electrodynamics Type Vibration Tester's parameters in this catalog for reference | ||
Power | AC380V 3-phase 5 Lines, 50/60Hz |
For High frequency vibration tester:
Model | ES-3 | ES-3a | ES-6 | ES-6a | ES-10 | ES-20 | ES-30 | ES-40 | ES-50 |
Rated Sine Force (N) | 3000 | 3000 | 6000 | 6000 | 10000 | 20000 | 30000 | 40000 | 50000 |
Rated Random Force (N) | 3000 | 3000 | 6000 | 6000 | 10000 | 20000 | 30000 | 40000 | 50000 |
Frequency Range (Hz) | 3-3500 | 3-3500 | 3-3500 | 3-3500 | 3-3000 | 3-3000 | 3-2800 | 3-2800 | 3-2700 |
Rated Acceleration (m/s2) | 1000 | 400 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Rated Speed (m/s) | 1.6 | 1.6 | 1.6 | 1.6 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
Rated displacement (p-p) mm | 25 | 40 | 25 | 51 | 51 | 51 | 5l | 51 | 51 |
Max. Loading (Kg) | 100 | 120 | 180 | 250 | 270 | 300 | 450 | 500 | 750 |
moving coil (Kg) | 3.5 | 9 | 6.5 | 12 | 14 | 30 | 40 | 50 | 50 |
Dia. of moving coil | Φ150 | Φ230 | Φ230 | Φ230 | Φ240 | Φ320 | Φ450 | Φ450 | Φ450 |

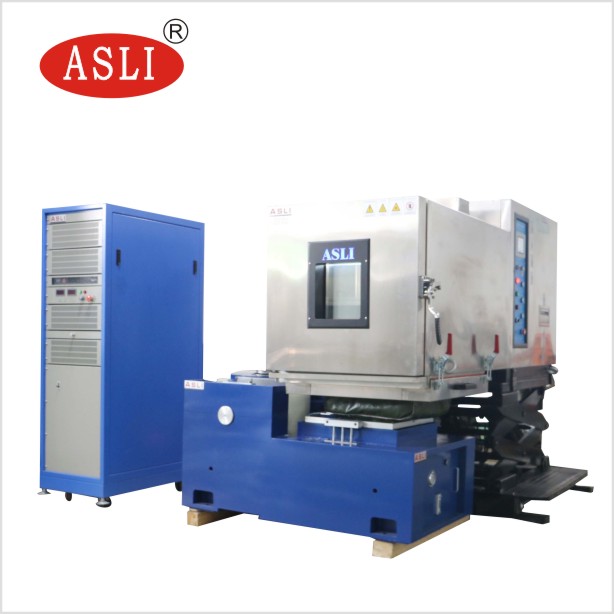

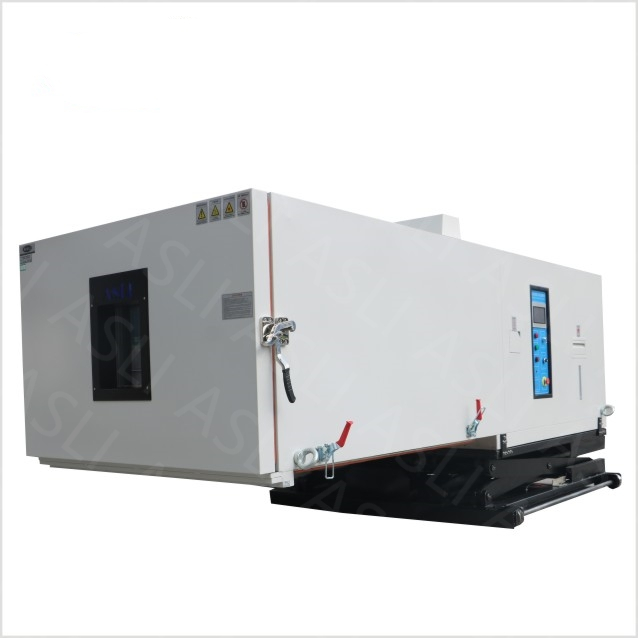

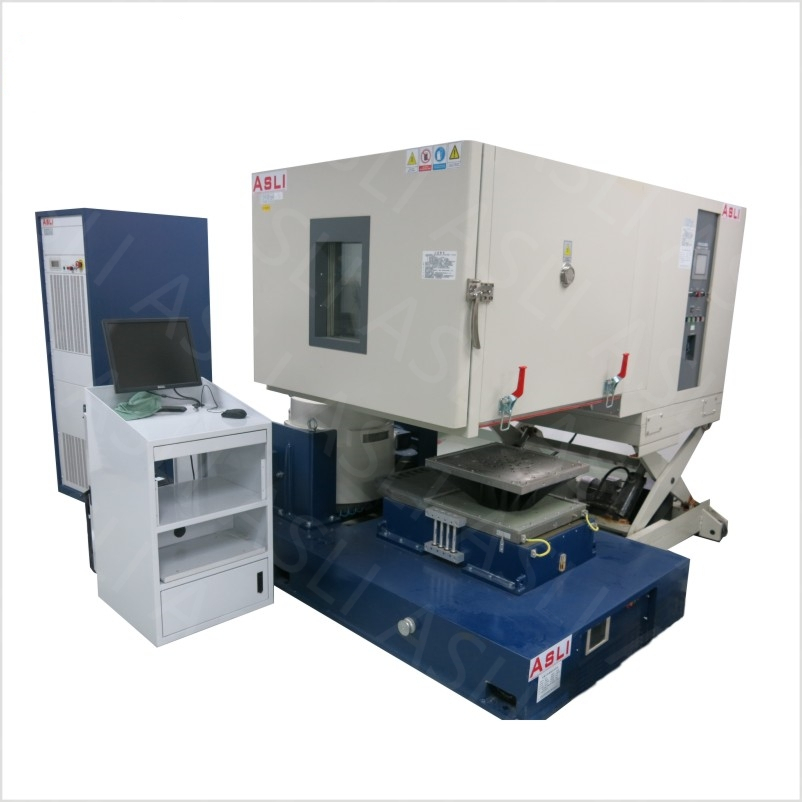

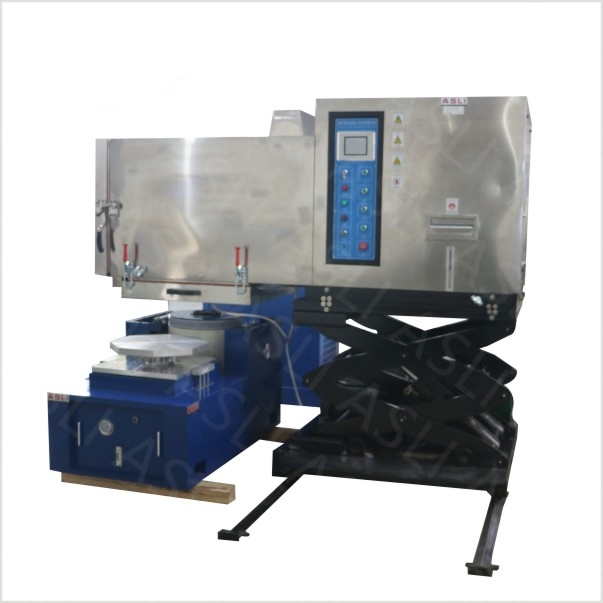

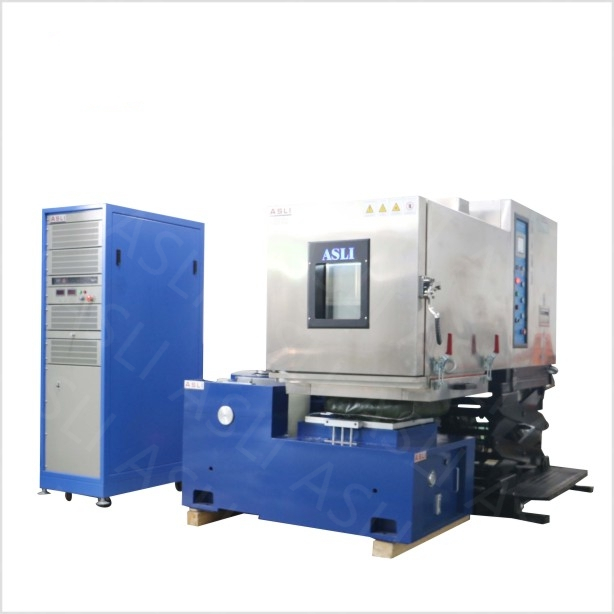

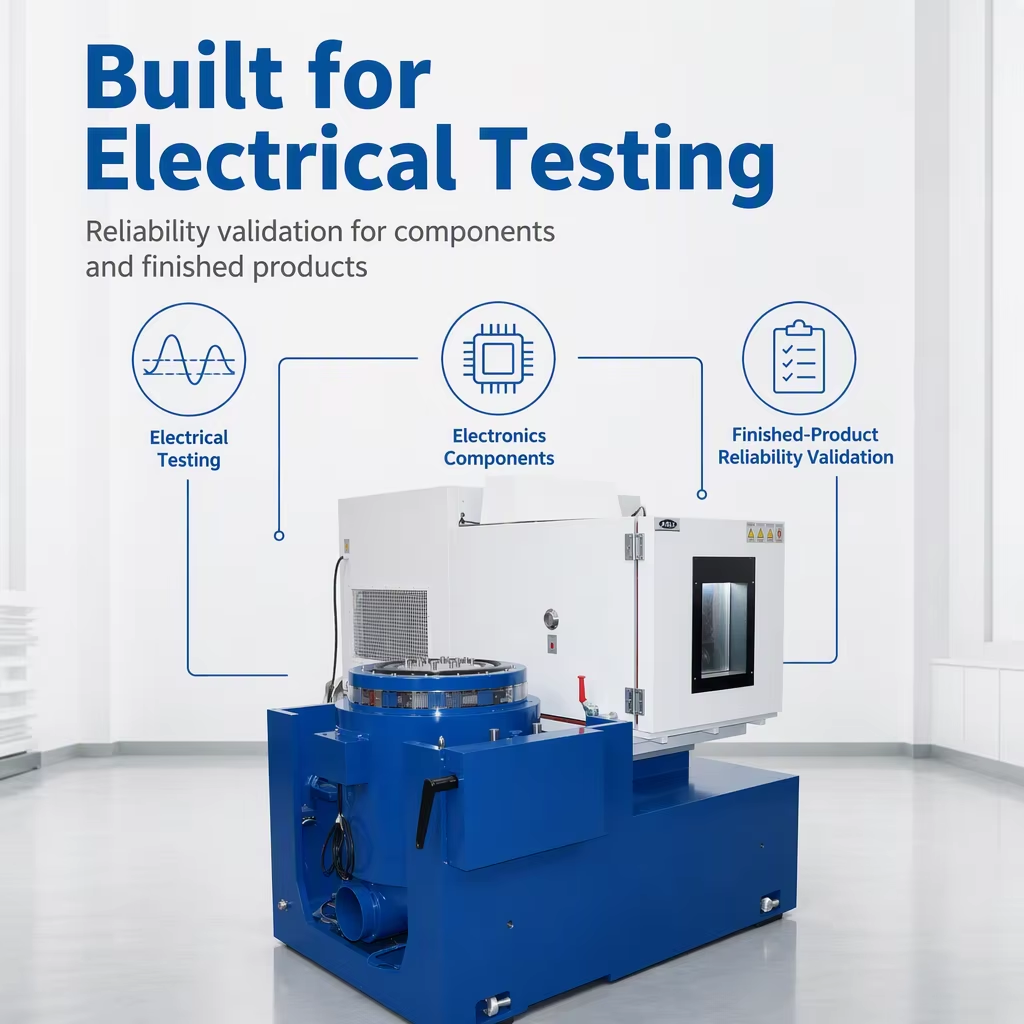

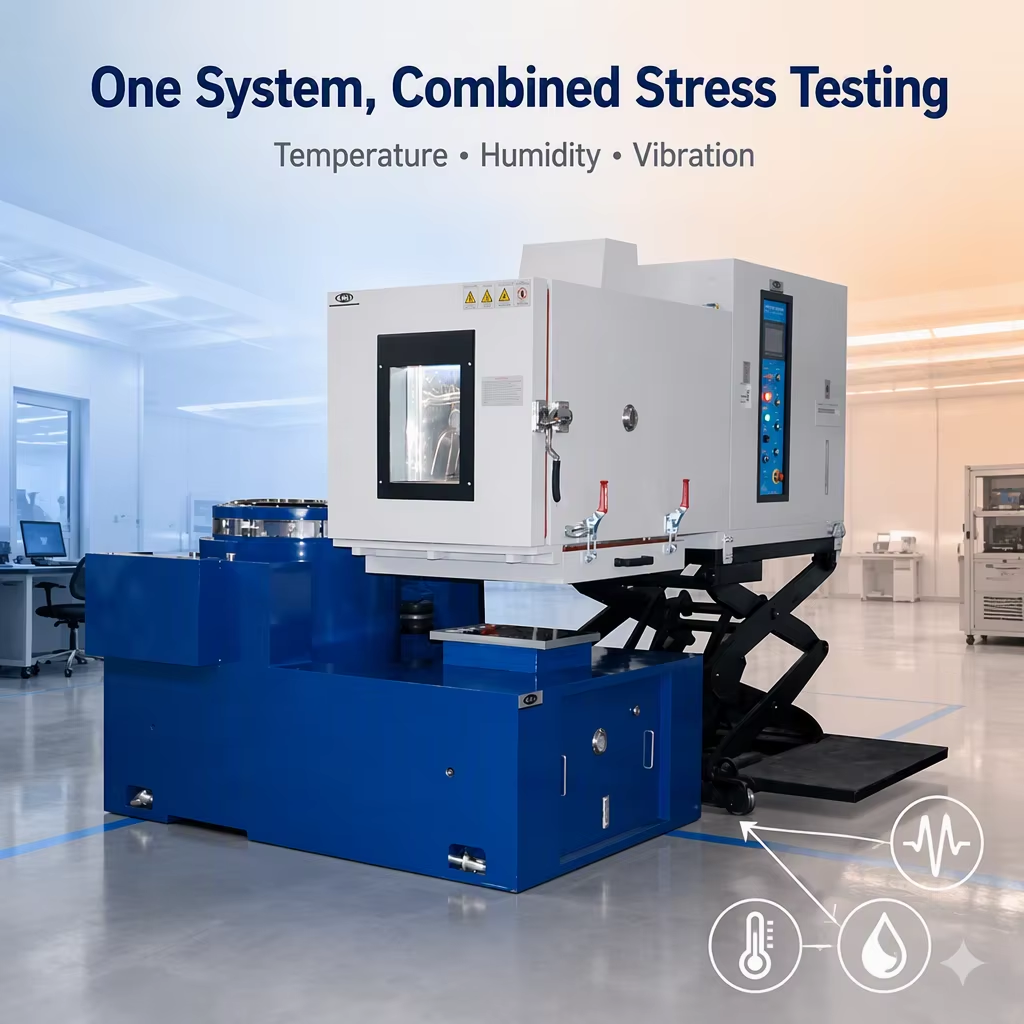

Environmental Temperature Humidity Electrodynamic Vibration Shaker Pictures:
Packing Detail:
If you have any doubt or needs about ISO 16750-3 Temperature Humidity Combined Vibration Test System, please don't hesitate to send your inquiry.
