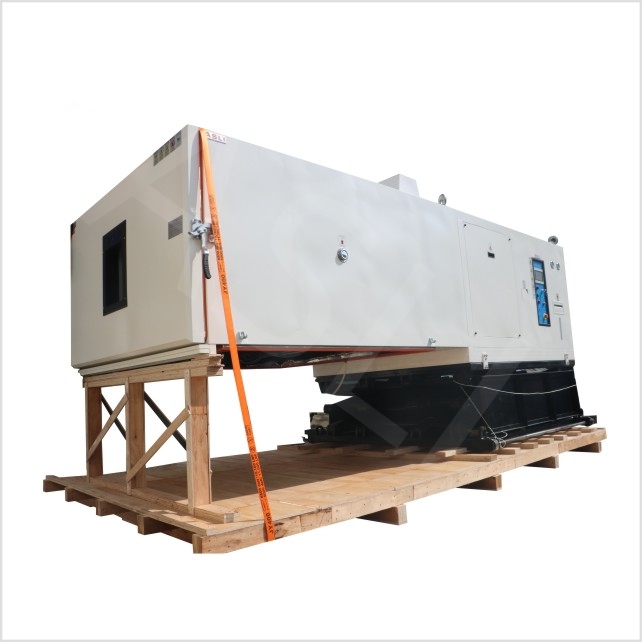

Temperature Humidity Vibration Combined Test System

High-Performance Temperature Humidity Vibration Combined Test Chamber

Temperature humidity vibration test chamber provides the change of temperature and humidity environment for the aerospace, aviation, petroleum, chemical, electronics, communication and other scientific research and production units, at the same time in the test chamber electric vibration stress according to the provisions of the cycle is applied to the sample, for the user of the machine (or components), electrical appliances, instruments, materials etc. temperature and humidity, vibration stress screening test, in order to assess product adaptability or experiment on behavior evaluation.

Inquire Now
Description

High-Performance Temperature Humidity Vibration Combined Test Chamber


Product Description
Temperature humidity vibration test chamber provides the change of temperature and humidity environment for the aerospace, aviation, petroleum, chemical, electronics, communication and other scientific research and production units, at the same time in the test chamber electric vibration stress according to the provisions of the cycle is applied to the sample, for the user of the machine (or components), electrical appliances, instruments, materials etc. temperature and humidity, vibration stress screening test, in order to assess product adaptability or experiment on behavior evaluation.

Name
 Temperature, humidity, vibration test chamber
Model
THV-408(A~F)
THV-1000(A~F)
THV-1500(A~F)
Internal Dimension WxHxD(mm)
600x850x800
1000x1000x1000
1500x1500x1500
External dimension WxHxD (mm)
850x1950x2100
1300x2200x2400
1800x2400x3000
Temperature Range
Low temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC/-75ºC)
High temperature:100ºC(150ºC/200ºC)
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
Control the Accuracy of temperature and humidity
±0.5ºC; ±2.5% R.H.
Temperature Rising / Falling Velocity
The temperature is rising approximately. 0.1~3.0ºC/min ;

The temperature is falling approximately. 0.1~1.0ºC/min;

(Falling velocity Min.1.5ºC/min is optional)
Protection Devices
Fuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Vibration Test Equipment
Choose a proper vibration test bench according to the customer's test condition. the technical parameters, please take the Electrodynamics Type Vibration Tester's parameters in this catalog for reference


-75~150c, 5%R. H. Temperature Humidity Vibration Comprehensive Resistance Tester


Temperature humidity vibration test chamber Features:

1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; an independent console.
2. The original refrigerating compressor unit and its main accessories are an internationally famous brand;
3. LCD color touch screen controller, capable of automatic control of temperature and humidity programs;
4. RS-232 communication. To meet customers' unique demands, users may choose from different models of vibration test benches to ensure that, in addition to good cooling,
5. Heat and air seal system, this vibration bench will also boast remarkable effect of mechanical vibration



For Vibration Shaker:
Model
ES-3
ES-3a
ES-6
ES-6a
ES-10
ES-20
ES-30
ES-40
ES-50
Rated Sine Force (N)
3000
3000
6000
6000
10000
20000
30000
40000
50000
Rated Random Force (N)
3000
3000
6000
6000
10000
20000
30000
40000
50000
Frequency Range (Hz)
3-3500
3-3500
3-3500
3-3500
3-3000
3-3000
3-2800
3-2800
3-2700
Rated Acceleration (m/s2)
1000
400
1000
1000
1000
1000
1000
1000
1000
Rated Speed (m/s)
1.6
1.6
1.6
1.6
1.8
1.8
1.8
1.8
1.8
Rated displacement (p-p) mm
25
40
25
51
51
51
5l
51
51
Max. Loading (Kg)
100
120
180
250
270
300
450
500
750
moving coil (Kg)
3.5
9
6.5
12
14
30
40
50
50
Dia. of moving coil
Φ150
Φ230
Φ230
Φ230
Φ240
Φ320
Φ450
Φ450
Φ450

-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers
For Vertical Expander:
-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers

VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high-quality material, and workmanship.

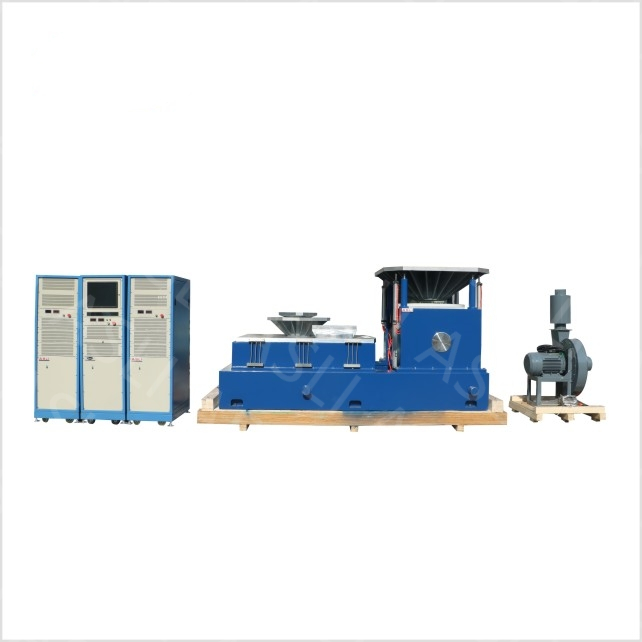

For Horizontal Expander
-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers
Within a small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of the whole machine bench.

Horizontal bench and vibration bench are integral types, with perfect structure, convenient to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure, and easy operation.



Detailed Images
-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers600C Oven + Vibration Shaker

-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers
-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers

Our Company

We have a long history of testing equipment manufacturing. In the past 28 years, we have devoted ourselves to the simulation of environmental testing equipment and Mechanical vibration and shock testing machines. -75~150c, 5%R. H. Temperature Humidity Vibration Comprehensive Resistance Tester is our star product, and we have obtained the CE certification for this machine.
