Temperature Humidity Test Chamber Temperature Cycling Testing

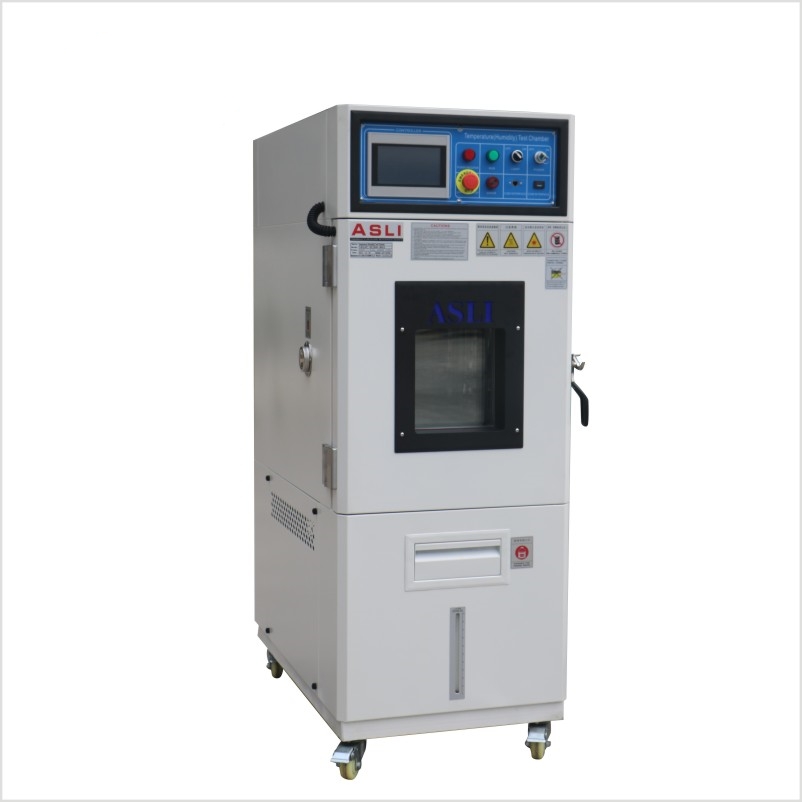

TH-80-D Constant Temperature & Humidity Test Chamber for PCB & Semiconductor Testing | Small Sample Testing

The TH-80-D Constant Temperature & Humidity Test Chamber is designed for precise environmental testing of PCB, semiconductor components, and small samples. This compact yet powerful chamber ensures stable temperature and humidity conditions, meeting industry standards for electronics, aerospace, and material testing. ASLI TEST INSTRUMENT provides high-performance reliability with customizable features to meet diverse testing requirements.

Inquire Now
Description

Constant Temperature & Humidity Test Chamber

           Model TH-80  TH-150  TH-225  TH-408  TH-800  TH-1000
Internal Dimension 400x500x400 500x600x500 600x750x500 600x850x800 1000x1000x8001000x1000x1000
WxHxD (mm)
External Dimension  950x1650x9501050x1750x10501200x1900x11501200x1950x13501600x2000x14501600x2100x1450
WxHxD (mm)
Temperature RangeT min:   Low Temperature (A:25℃  B:0℃  C:-20℃  D:-40℃  E:-60℃  F:-70℃)
Tmax:  High Temperature (150℃, 180℃, 200℃)
Humidity RangeOptional: ( 20%~98%R.H /10%-98% R.H. / 5%-98% R.H )
Analytic Accuracy/ 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.
Distribution uniformity
of temperature
and humidity
Control Accuracy  ±0.5℃; ±2.5% R.H.
of Temperature and
Humidity
Temperature Rising/ The temperature is rising approximately.  0.1~3.0℃/min
Falling Speed RateThe temperature is falling approximately.  0.1~1.5℃/min;
Customizable( The Falling Speed Rate Min.1.5℃per minute is a special optional condition)
Material The material of the inner box is SUS 304# stainless steel, and the outer box is stainless steel or
SEE cold-rolled steel with paint coated. Insulation material is resistant to high temperatures,
high density, formate chlorine, ethyl acetate foam insulation materials
Cooling System Wind cooling or water cooling/single segment compressor(-40℃, double segment
compressor -70℃)
Protection Devices Fuse-free switch, overloading protection switch  for compressor, high and low voltage
coolant protection switch, over-humidity, and over-temperature protection switch, fuses,
fault warning system, water shortage storage warning protection
Optional Accessory Inner door with operation hole, Recorder, Water Purifier, Dehumidifier
Compressor French Tecumseh Brand,Germany Bizer Brand
Power AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ
Approx. Weight (Kg) 150 180 250 320 400 450
