Walk in Temperature Humidity Environmental Test Chamber for PV Solar Panel

Walk In Climate Chamber, also called walk in environmental test chambers or walk in temperature humidity chamber, is used to do accelerated temperature and humidity environmental testing, alternating or constant damp heat test, and high and low-temperature routine tests and low-temperature storage for large-scale parts, semi finished or finished products, electronic components, automotive, rubber, plastics, pharmaceutical industry, aerospace technology, military technology and communications equipment, etc.

Inquire Now

Description

Professional PV Module industry Walk in Temperature Humidity Environmental Test Chamber manufacturer
Material: SUS#316
Customized Size
Programmable LCD touch screen Controller

IEC 61215 UL 1703 Standard Walk in Temperature Humidity Environmental Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of big test samples, such as electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

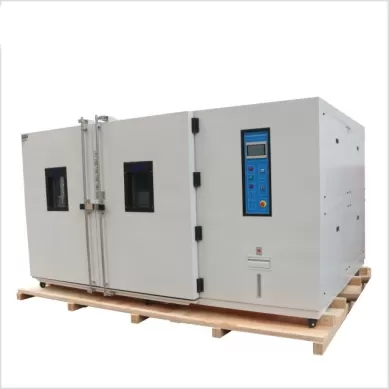

IEC 61215 UL 1703 Standard Walk in Temperature Humidity Environmental Test Chamber for PV Solar Panel

Programmable Walk-In Temperature Humidity Instrument For Battery Test Technical Parameters:

Model	THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)	Customers designated space size and design
Temperature Range	Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional)
Humidity Range	20%~98%R.H. (10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Indication Resolution / Distribution Uniformity of Temperature & Humidity	0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H.
Control Accuracy of Temperature and Humidity	±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Velocity	Temperature rising approx. 0.1~3.0°C/min; temperature falling approx. 0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional)
Cooling System	Water cooled
Protection Devices	Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Slope for cart , Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC 380 V(±10%),50/60HZ ,3 phase 5 Lines

IEC 61215 UL 1703 Standard Walk in Temperature Humidity Environmental Test Chamber for PV Solar Panel

Programmable Walk-In Temperature Humidity Instrument For Battery Test Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test ,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

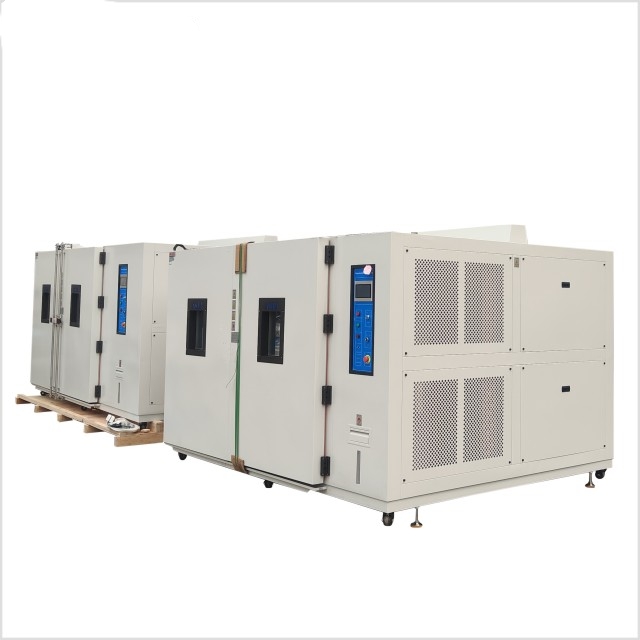

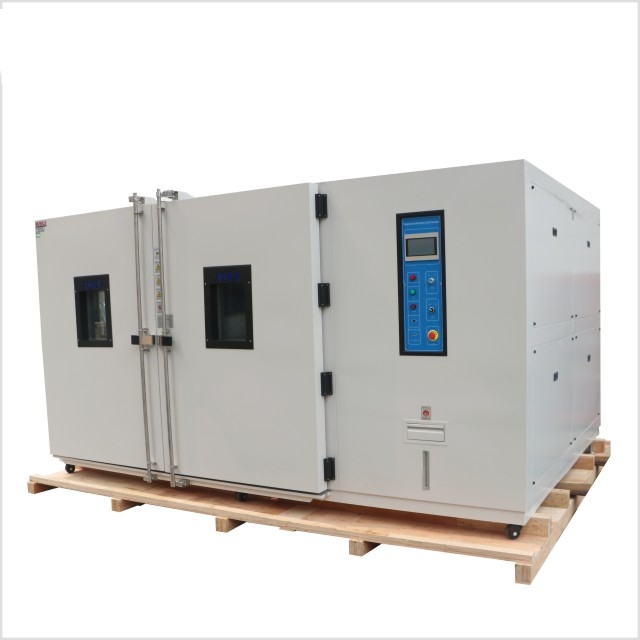

Pictures for reference:

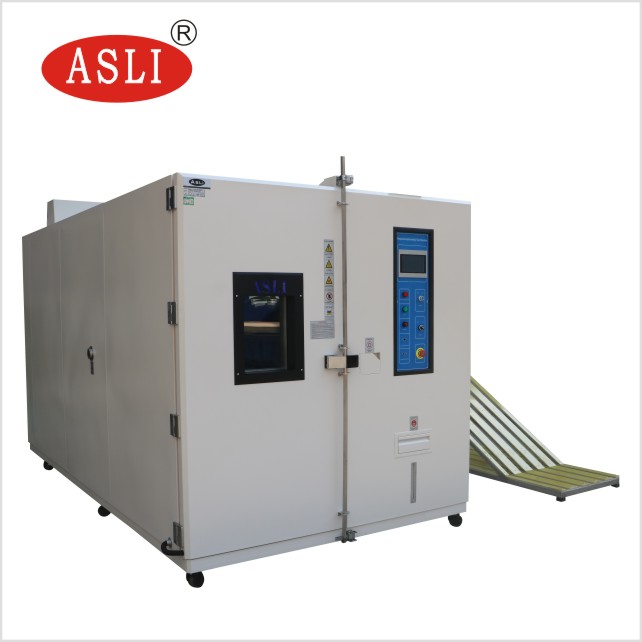

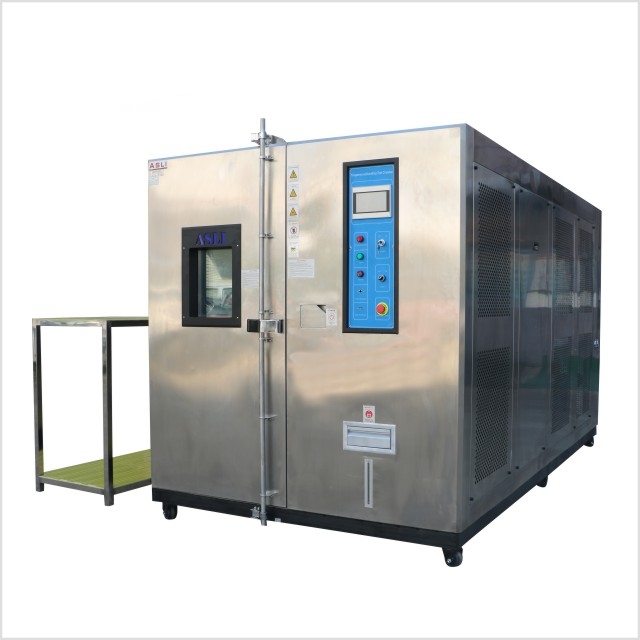

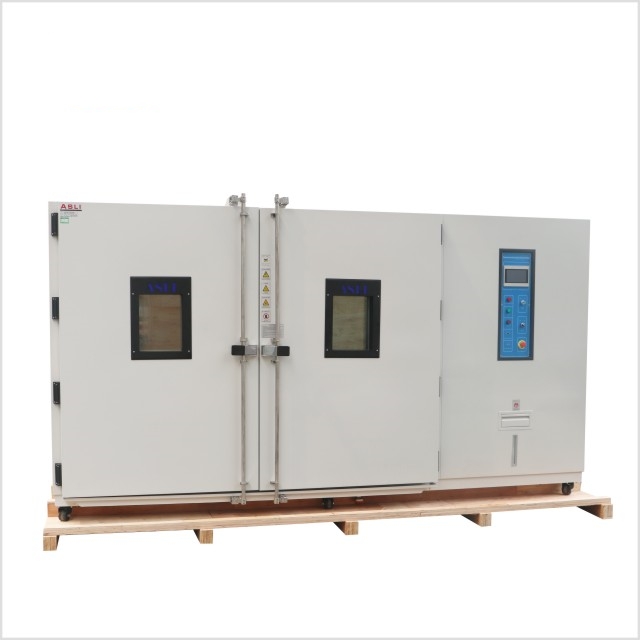

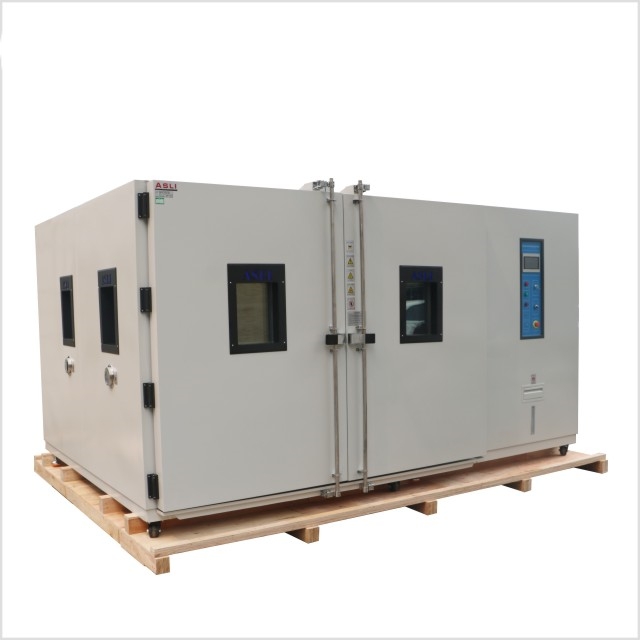

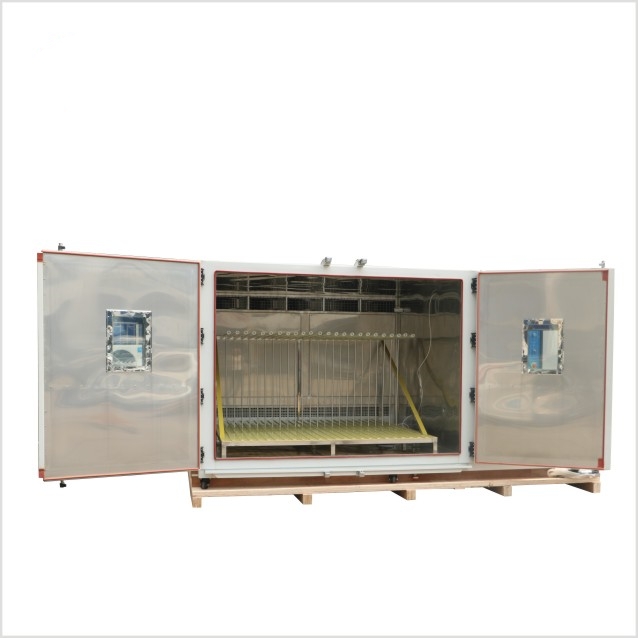

IEC 61215 UL 1703 Standard Walk in Temperature Humidity Environmental Test Chamber for PV Solar Panel

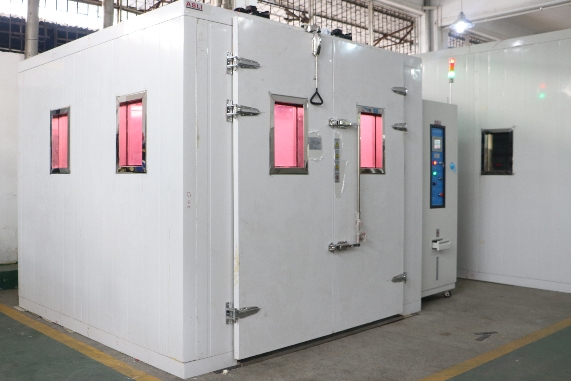

ASLI Machine at customer's test lab

Any doubt or needs about IEC 61215 UL 1703 Standard Walk in Temperature Humidity Environmental Test Chamber for PV Solar Panel, please don't hesitate to contact us.
