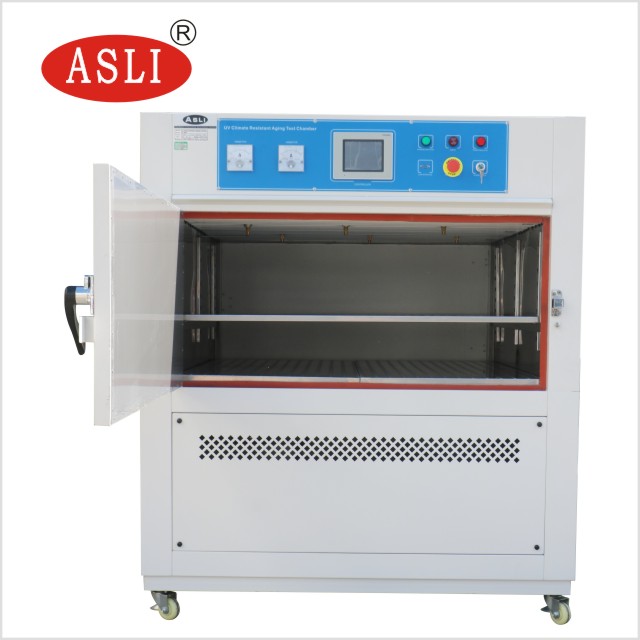

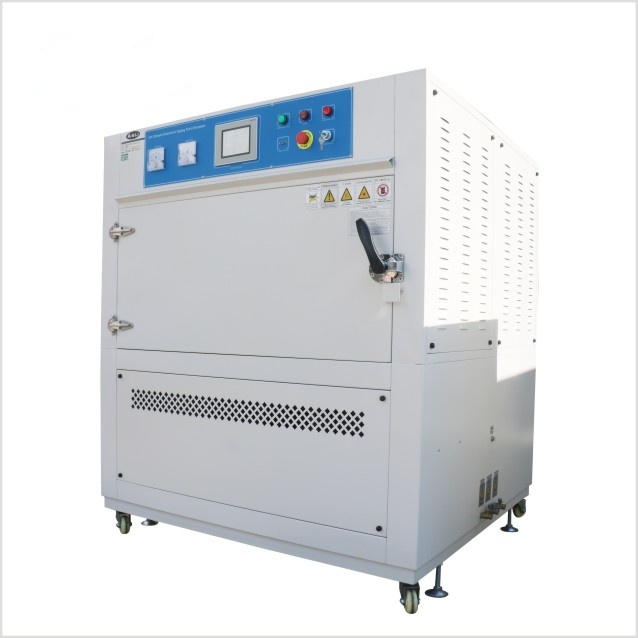

Economic UV Climate Resistant Aging Test Chamber
Technical Parameters
1. Model : UV-880
2. Principle and Usage
2.1 UV aging tester adopts fluorescent UV lamp as light source, by simulating natural light's ultraviolet (UV) radiation and condensation, accelerated resistant climate test was carried out on the material, in order to obtain material weatherability.
2.2 UV Climate Resistant Aging Test Chamber can simulate the ultraviolet ray in natural climate, rain, high low temperature, high humidity , condensation and dark, etc., environmental conditions,by reproduce these conditions, merged into a loop, and have it automatically complete cycles, this is the working principle of ultraviolet aging test chamber, was widely used in the evaluation of material climate resistant.
4. Mechanical Structure
1) Internal & External Casing Material: SUS#304 Stainless Steel
2) Operating room with 20 UV lamps
3) Heating with inside water mode, heat up quick and with uniform temperature distribution.
4) The door with one-way open or two way which depends on the testing products dimension, easy for opening and closing.
5) Automatic water filling of the inside water wank.
6) Sample shelves made by draft spring or stainless steel which also depends on the size and shape of the testing products.
7) The bottom of the chamber adopts high quality fixable PU casters.
8) Drainage system use scroll and U type deposition drainage devices.
9) 50mm distance between sample surface and the lamps, and parallel or with 45°angle lilt , optional.
5. Heating System
1) Heating with high speed U-shaped titanium alloy electric heat tube ;
2) Independent system, with no effects to the testing and electrical control.
3) Temperature control and power output all calculate by micro-computer, thus with high precision and high efficiency of electricity efficiency.
4) Heating system with over temperature protection function.
