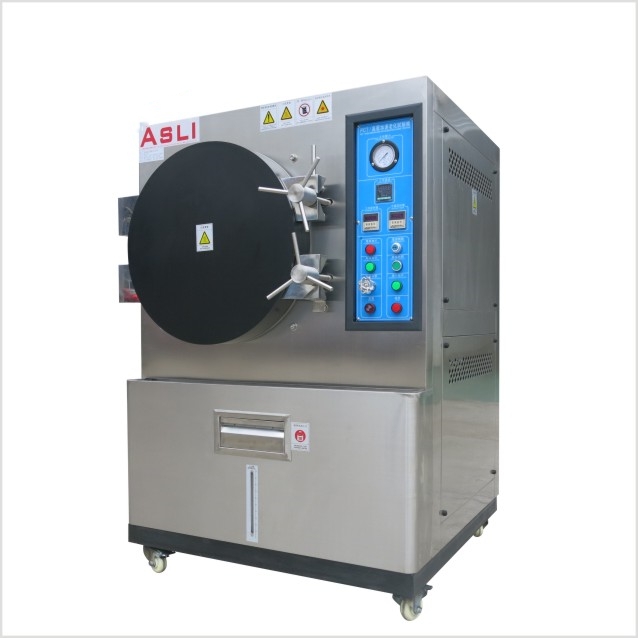

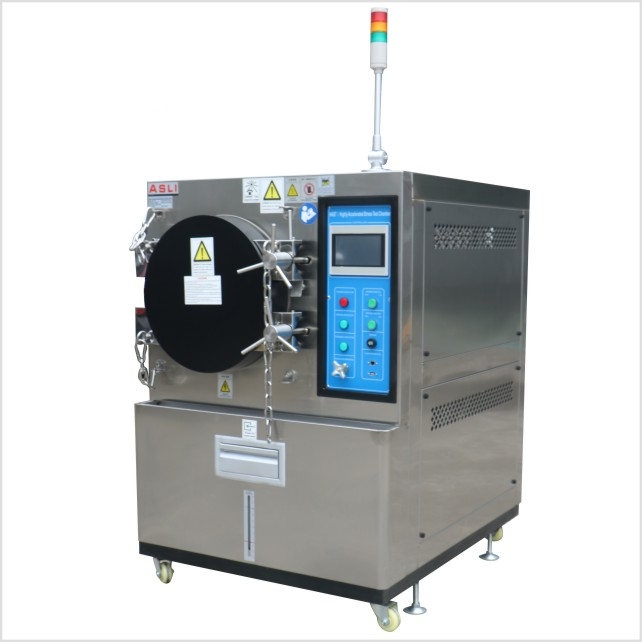

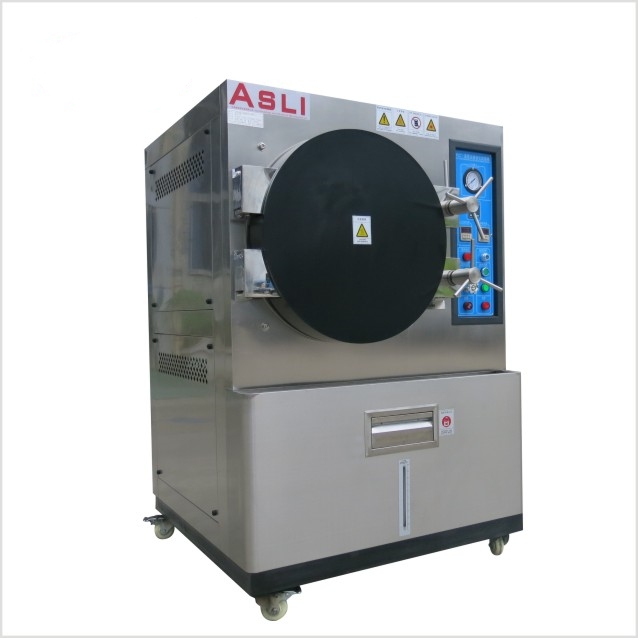

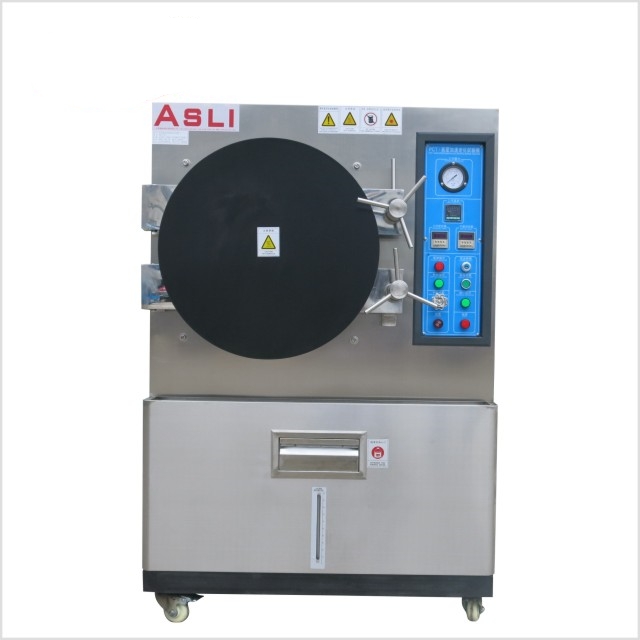

HAST PCT Unsaturated High Pressure Accelerated Environmental Aging Chamber
Control System:
1.Micro-computer saturated steam LED digital display temperature controller ,LED digital time controller and pointer type pressure display gauge.
2. This system complied with high pressure accelerated aging reliability test standards as : CNS,ISO,JIS,ASTM,DIN.. BS,IEC, NACE,UL,MIL…
3.Control object: micro computer +P.I.D. +S.S.R. Automatic calculating saturated steam temperature .
4. Micro-computer control .
5. Temp. Control Accuracy : (+/-)0.5ºC
6. Resolution : 0.1ºC
7. Pressure control accuracy : (+/-)0.2Kg/cm2
Performance:
1. Temp.Range: ( RT+10ºC ) ~ 135ºC Free setting (saturated steam
temperature). 2. Humidity Range : 100%RH (default value of saturated steam humidity )
3. Pressure Range: 0.5Kg/cm2 ~ 3.0Kg/cm2 Absolute pressure; (safe pressure
capacity 3Kg/cm2 = 1environmental pressure + 2Kg/cm2 )
4. Time Range : 0 ~ 999H / M / S ; optional ; free setting
5. Temp. Uniforminity : (+/-)2.0ºC(100ºC)
6. Temp. Rising Time : ( RT+10ºC ) ~ 120ºC About 45 mins
7. Pressure Time : (Ambient)/ 0.0Kg/cm2 ~ 1.00Kg/cm2 about 45 mins
Technical Parameters:
Internal Dimension
Φ×D (mm) | 300×250 | 350×450 | 450×550 | 550×650 | 650×750 |
External Dimension
Φ×D (mm) | 850×1300×900 | 900×1350×900 | 1000×1480×1000 | 1150×1650×1200 | 1300×1800×1350 |
| Steam Temperature Range | Steam Temperature Range: 100ºC~135ºC, (143ºC is optional) |
Relative Pressure/
Absolute Pressure | Relative pressure: display values indicated on the pressure gauge
Absolute pressure: Value that add 100 Kpa based on display values indicated on the pressure gauge
(The actual value in the inner box) |

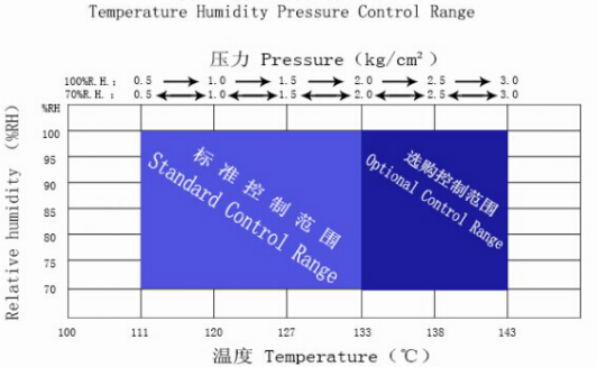

Comparison Table of
Temperature, Humidity,
Pressure |  |
| Steam Humidity | 70~100%R.H. steam humidity adjustable |
Steam Pressure
(Absolute Pressure) | 101.3Kpa +0.0Kg/cm2~2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) |
| Recursive Device | Steam in forced-circulation |
| Safety Protective Devise | Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |

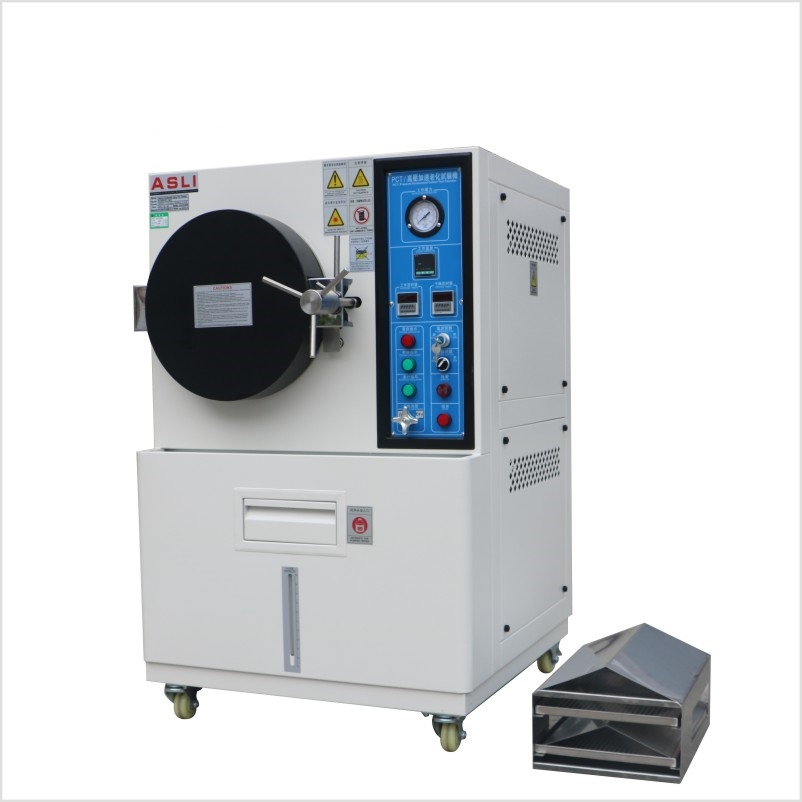

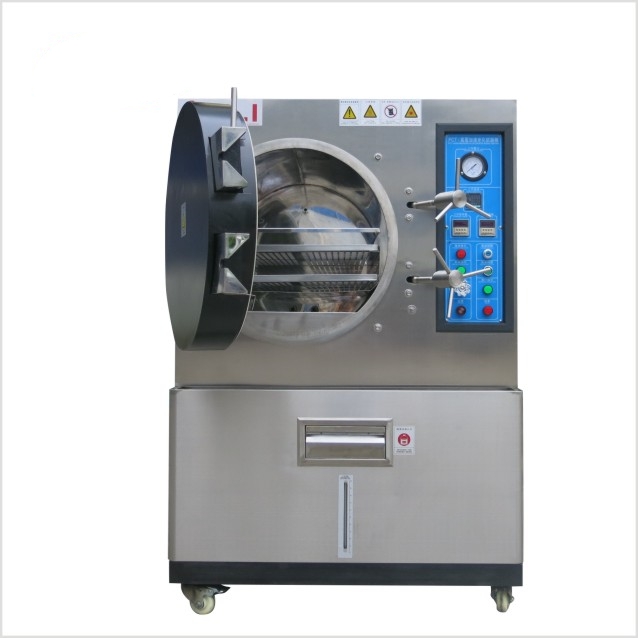

| Accessories | Two layers stainless steel plate |
| Equipment Capacity(L) | 17 | 43 | 87 | 155 | 250 |
| Powder | AC220V, 1∮ 3 Lines ,50/60HZ; AC380V ,3∮ 5 Lines,50/60HZ |
