PCT HAST Pressure Aging Test Chamber

100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber

100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber is mainly used to test the physical and other related properties of electrical, electronic products, components, parts, metal materials and their magnetic materials under the simulated climate conditions of high temperature, high temperature, high humidity and pressure, judge whether the performance of products can meet the requirements through verification, and provide help for the design, improvement, verification and delivery inspection of products.

Inquire Now
Description
Product Description

application:

100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber is widely applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.


Product Parameters

PCT Pressure Cooker Test Chamber technical parameters:

ModelPCT - 25PCT - 35PCT - 45
Internal Dimension Φ×D (mm)300×250350×450450×550
External Dimension Φ×D (mm)750×1200×800800×1250×800900×1380×900
Temperature Range of Saturated Steam (Operating temperature)(Temperature Range of Saturated Steam:100ºC~135ºC) ,
 Temperature Range: 120ºC,100Kpa/ 133ºC  200 Kpa;(143ºC is special order)
Relative Pressure / Absolute PressureRelative pressure: display values  indicated on the  pressure gauge
Absolute pressure: Value that adds 100 Kpa based on the display values indicated on the  pressure gauge  (The actual value in the inner box)

Humidity of Saturated Steam
100% RH saturation steam humidity
Steam Pressure(Absolute Pressure)101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2  is special standard)
Recursive DeviceSteam Natural convection circulation
Safety Protective DeviceWater short storage protects, over pressure protection.(have automatic / manual water replenishing, automatically discharge pressure function )
AccessoriesTwo-layer stainless steel plate
Equipment Capacity(L)174387
Powder AC 220V(±10%), 1∮ 3  Lines ,50/60HZ ;

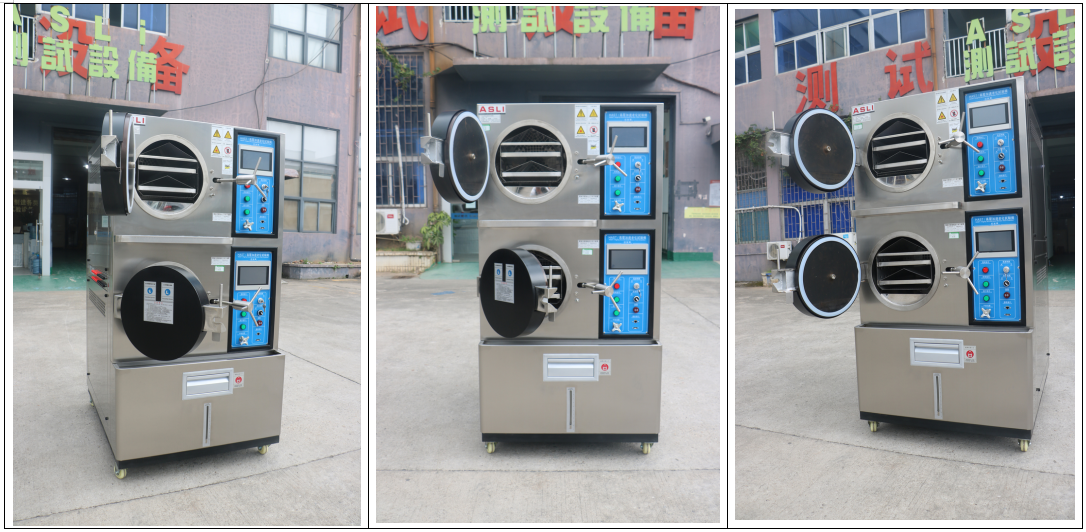

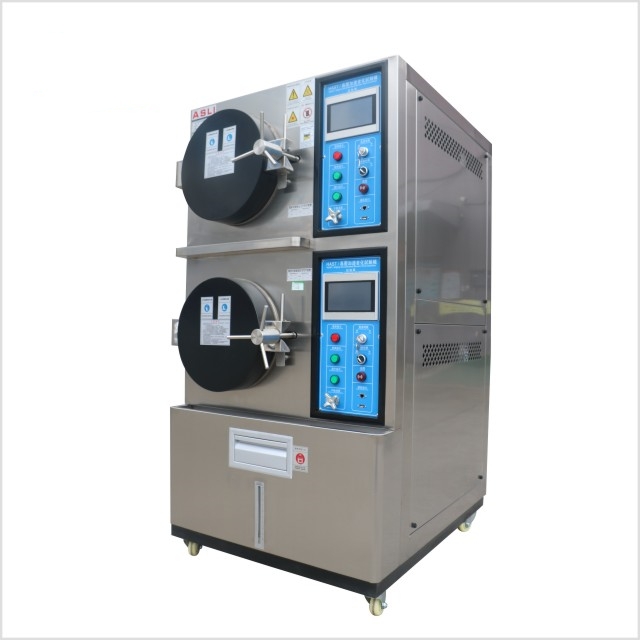

Detailed Photos


100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber

100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber
100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber

 100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber

100% humidity Saturated PCT Test Chamber safety device:
1. Safety device for the pot: If the inner box is not closed, the machine can not start
2. Safety Valve: When the inner box's pressure is higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When the inner box's temperature is too high, it will alarm, and automatically cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, which can protect the worker from scalding.

100% humidity Saturated PCT Test Chamber features:
1. Automatic water function, and automatic filling of water upon the water's short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: The LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reaches the setting value, then starts timing to ensure the test is complete.
5. An accurate pressure-temperature chart always shows the inner box's pressure and relative humidity.
6. The water device automatically discharges not saturated steam in order to achieve the best steam quality.
7. An integrated silic gel door gasket, air tightness is very good, and long operation life.
8 . The inner box is mirror-polished, graceful,and non-polluting

Package: PP film first, and then 10mm foam between the machine and the case, and outside is standard
 100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber
Our Services
Warranty: one-year free warranty for the whole machine set, lifelong maintenance.
Service: OEM service, Design service, Buyer label service.
After-sales service: feedback within 2 hours after receiving the call.

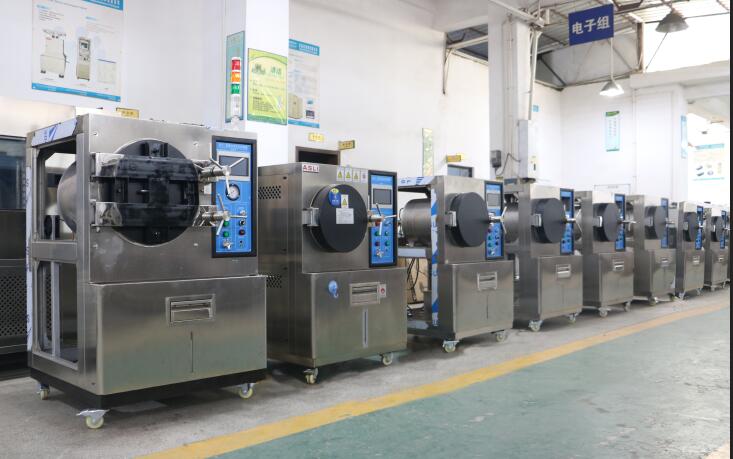

Customer Reference:
100%R. H. Steam Humidity Saturated Pct Pressure Cooker Test Chamber


Short introduction about ASLi factory:
We have a long history of testing equipment manufacturing. in the past 26 years, we have devoted ourselves to the simulation environmental testing equipment and mechanical vibration and shock testing machines.100% Humidity Saturated PCT Pressure Cooker Test Chamber is our star product, and we have obtained the CE certification for this machine.
