Other Mechanical Environmental Tester

Mobile Phone Double Drum Tumbling Barrel Drop Impact Tester

Mobile Phone Double Drum Tumbling Barrel Drop Impact Tester is suitable for the roll and drop test of mobile phone and similar products, with the function of 6 digit digital display and counting, and can conduct the test of 2 samples simultaneously in 2 test bins.Mobile phone drum drop testing machine is suitable for mobile phone, PDA, electronic dictionary, CD, MP3, remote control and other small portable electronic products for continuous slewing and falling test.After N times of falling and falling behind, the product's ability to withstand rotary drop can be evaluated by setting the number of times to reach.

Inquire Now
Description

Product introduction:
Mobile Phone Double Drum Tumbling Barrel Drop Impact Tester is suitable for the mobile phone, PDA, electronic dictionaries, CD, MP3, remote control device and other small portable electronic products which need continuous rotary free falling testing. AS-DT-150 has two testing zones which can do the test at the same time, through the testing times reach to setting , then check the testing samples be damage or not.

Testing Standards:
GB/T2423.8-1995,IEC60068-2-32:Ed2

Double Drum Barrel Drop Tester Technical Parameters

Test Speed5~20 times/min
Drop of Height500mm and 1000mm
Free Fall ZonesTwo
Timer1~999999 adjustable
Max. Load5Kg
PowerAC220V
External dimension1500*1300*1150mm
Weightabout 200Kg

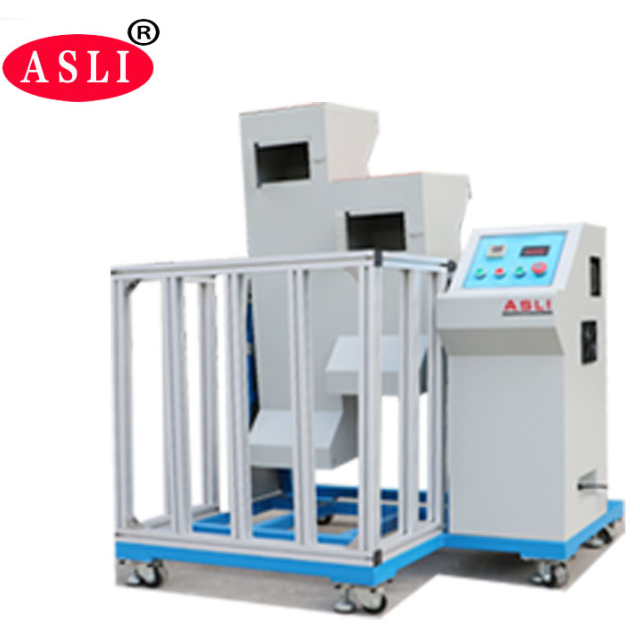

Pictures for reference:

Mobile Phone Double Drum Tumbling Barrel Drop Impact Tester

Mobile Phone Double Drum Tumbling Barrel Drop Impact Tester


Drop Drum Tumble Tester Configuration List:
Machine: 1set
Gear Reducer Motor: 1 set
Rubber press: 4 piece
Wood floor mat: 4 piece
Glass door: 2 sets
Guard railing: 1 set

Impact Testing Machine package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK

Our advantage
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products


If you have any doubt or needs about Mobile Phone Double Drum Tumbling Barrel Drop Impact Tester, please feel free to contact us.
