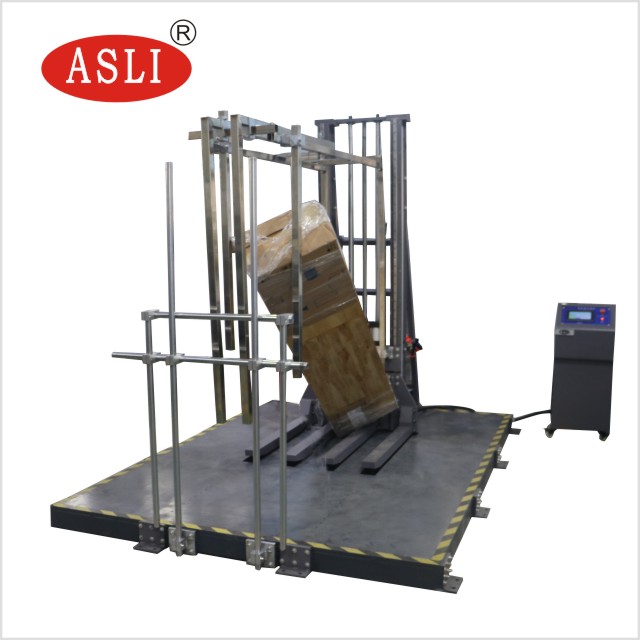

ISTA Standard Zero Drop Test Machine for Heavy Products

ISTA Standard Zero Drop Test Machine for Heavy Products used to test the damage degree of the product packages when they free fall to the land., including the arris, angle and face of the container packages, as well as to evaluate the damage degree of the electronic building brick when they fall, it mainly used to assess products ability to stand the falling during transportation and loading and unloading. The test results can used as the reference for improvement and perfecting packaging design.

Inquire Now

Description

ISTA Standard Zero Drop Test Machine for Heavy Products

Drop Test Machine mainly used for package in the transportation, loading and unloading process to improve the ability to withstand fall, perfect packaging
Drop Test Machine used for evaluating the damage and impact resistance when handling and carrying a package, to do a free fall test for the area, angle and edge of the package.

The zero drop tester is mainly used to evaluate the impact of the packaged parts on the impact of drop during the actual transportation, loading and unloading process, and to evaluate the impact resistance strength of the packaged parts during the transportation process and the rationality of the packaging design. The zero drop tester is mainly used for the drop test of larger packages.

Our machine also can meet ISTA standards.
ASTM D 5276-98 Standard Drop Test Machine, Zero Drop Testing Equipment for Payload 300kg

Technical Parameters of Customized Available Drop Testing Equipment :

Model	AS-DT-120
Max. Weight of Test Samples (Kg)	300(customized)
Height of Drop (mm)	0~1200
Max. Dimension of Test Sample WxHxD (mm)	1200x1200x1200
Falling Floor Size WxHxD (mm)	1700x50x1200
Drop Method	Face, edge, angle
Test Bench External Dimension WxHxD (mm)	2000x2200x1000
Weight (Kg)	1500

Feature for package drop testing machine:
1. The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept the original condition under power cut and the swing arm will not break away unusually.
2. The tester has set limits upward and down, will not exceed safety range when testing.
3. Support arm with electronic reset capability, can avoid the accident by manual operation.
4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing height.

Packing Detail:

Exhibition:

If you need more information about ASTM D 5276-98 Standard Drop Test Machine, Zero Drop Testing Equipment for Payload 300kg, please feel free to send your inquiries.
