IEC 60068-2-32 Standard Pneumatic Free Drop Impact Test Machine

IEC 60068-2-32 Standard Pneumatic Free Drop Impact Test Machine is suitable for mobile phones, mobile phones, walkie-talkies, electronic dictionaries and other electronic products and parts free fall test. This machine will be the test sample without packaging, attached with the random battery fixed on the test equipment in the state of shutdown, from the height of 1000mm free drop on the surface of the steel plate, except allow surface scratches, small pits, function, appearance and assembly should meet the requirements of the relevant standards.

Inquire Now

Description

Application:

This IEC 60068-2-32 Standard Pneumatic Free Drop Impact Test Machine for Lab Electronic Products Mobile Phoneis suitable for free fall test of mobile phone (mobile phone), walkie-talkie, electronic dictionary, building intercom, charger, power supply, CD/MD/MP3 and other small consumer electronic products and parts.

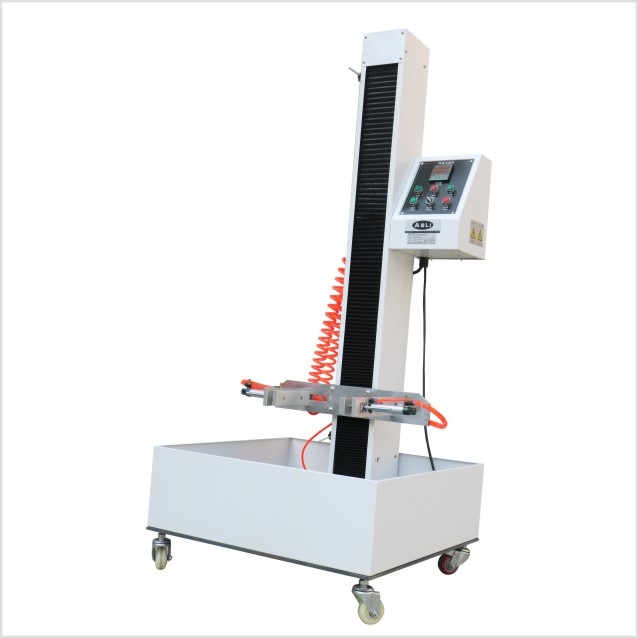

IEC 60068-2-32 Standard Pneumatic Free Drop Impact Test Machine for Lab Electronic Products Mobile Phone

Drop Test Machine Main Parameter:
1. Maximum Load: 5 Kg
2. Effective drop height: 300~1500mm
3. Drop height indication: 1cm
4. Drop height display: LED meter digital display
5. Maximum Dimension of Sample: 300*400mm
6. Drop floor : steel plate
7. Drop mode: edge, corner, face all-round drop
8. Transmission mode: electric lifting, pneumatic drop
7. Base plate size: 500x600x20mm
8. Use air pressure: <1Mpa
9. Machine size (approx.): W700 x D900 x H2200mm
10. Machine weight: 80kg
11. Power source: 1∮, 220V, 5A

Feature:
The machine adopts pneumatic structure, and the tested parts will be clamped in a special fixture (adjustable stroke), press the down and down button, the cylinder will be released, and the test pieces will be tested in free fall.Drop height can be adjusted up and down, with a height scale, the drop height can be known.A variety of drop floor can be selected to meet different test standards.

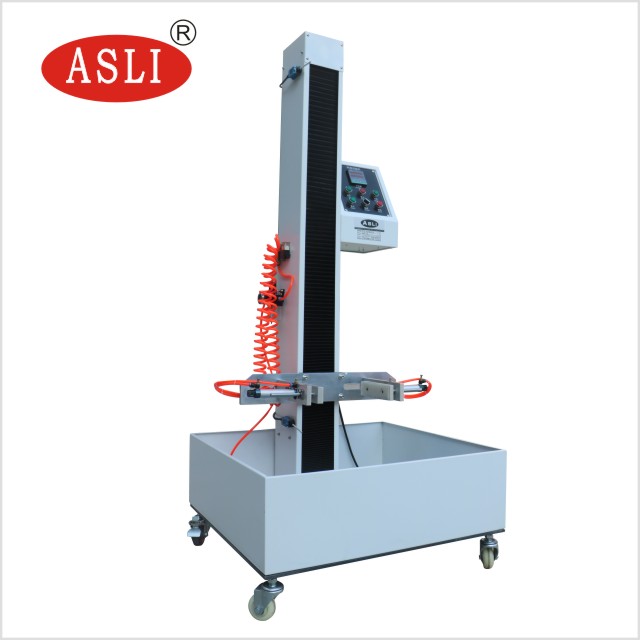

IEC 60068-2-32 Standard Pneumatic Free Drop Impact Test Machine for Lab Electronic Products Mobile Phone

Meet Standard:
JIS C 0044 IEC 60068-2-32

Features of equipment:
1. The cabinet is treated with electrostatic baking varnish, the whole machine is designed reasonably, the operation is safe, stable, accurate and beautiful;
2, pneumatic clamping products, the front end of the fixture is equipped with silicone rubber, so that the product is not easy to deform;
3, test height electric lifting mode, high-precision instrument indicating test height;
4, equipped with a protective box, can prevent the product from falling out of the outside
