Other Mechanical Environmental Tester

Corrugated Cardboard Package Carton Box Compression Test Machine

Corrugated Cardboard Package Carton Box Compression Test Machine mainly used in the various types of secondary normal size corrugated carton compressive strength test or other material made of compressive strength of packaging container FCL compressive strength test and test, such as food and beverage instant noodles packing, cosmetic packaging, beer packing, cereals and oil and so on the packaging. The instrument control accuracy is high, the development of advanced technology, for the present domestic the most cost-effective one universal carton compression tester.

Inquire Now
Description

Corrugated Carton Testing equipment is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.The main technical parameters Corrugated Box Compression Tester

Test Standard:
TAPPI-T804JIS-20212GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3GB/T4857.4


Main Technical Parameters:

Computer Carton Corrugated Cardboard Package Carton Box Compression Test Machine

Model

AS-PCC-3000

 Unit (switchable)

 Kg, Lb, N

 Capacity (optional)

3000kg   (30KN)

Load Resolution

1/250,000

 Stroke (exclude the grips)

  400 mm

 Load Accuracy

  ≤0.5%

Max. Sample Dimension

Approx. W1500×H1500×D1500mm

Speed of Compression

250-300mm/min

Operation Mode

PC (PC Connected by RS485 Interface)

Report Items

Serial number, Peak value, Average value, Designated holding pressure value; all memorable

Structure

AC Frequency Conversion Motor Ordinary screw rod

Dimension

Host: Approx. W2000xH2200xD1500mm

Cabinet: Approx. W1150xH1350xD640mm

Power

 AC380V, 3 Phases, 5 lines

Weight

 Approx.850kg

Safety Devices

Overload protection, over-voltage protection & limited position protection device

Standard

TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

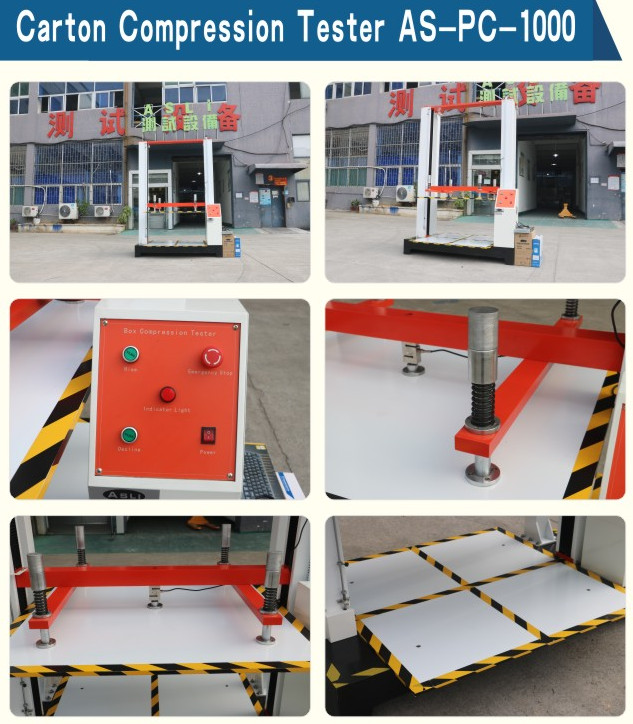

Pictures for reference:

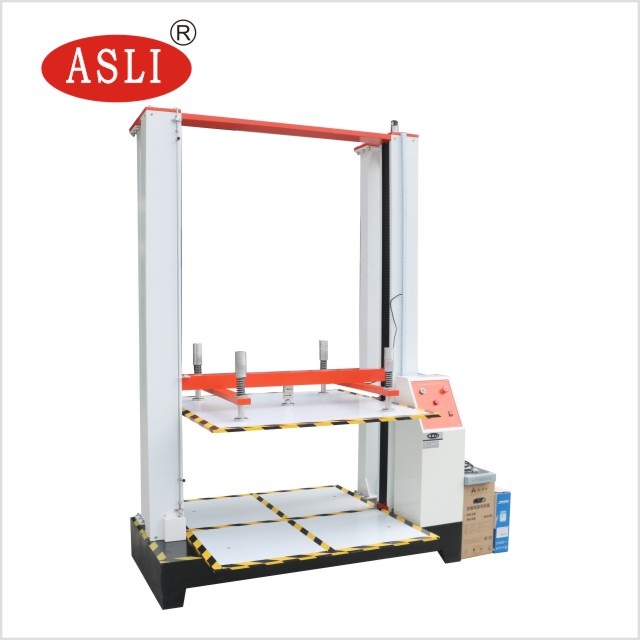

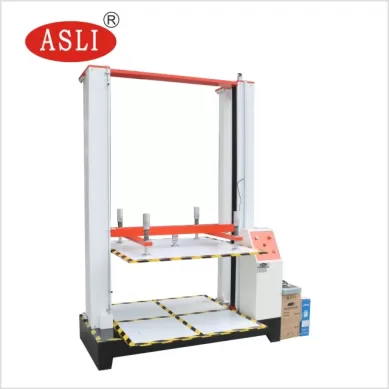

Corrugated Cardboard Package Carton Box Compression Test Machine

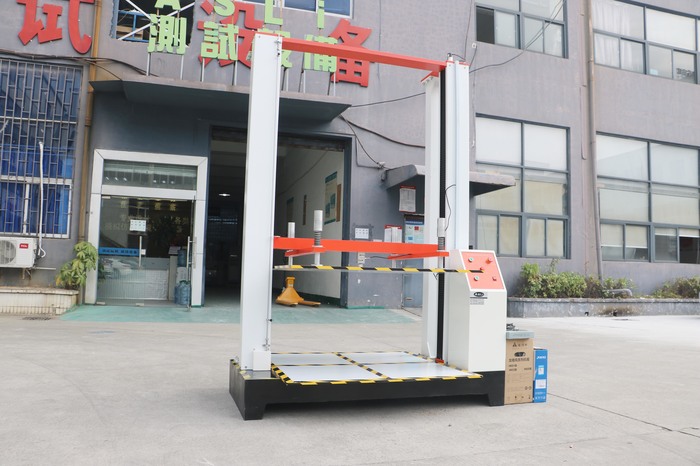

Corrugated Cardboard Package Carton Box Compression Test Machine


APPLICATIONS

Deformation under defined load: Test deformation under defined load of various corrugated cartons and beehive crates

Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates

Maximum load: test the maximum load of various corrugated cartons and beehive crates

Stacking test: stack test of various corrugated cartons and beehive crates

Cyclic test: dynamic strain according to strength & stroke


If you have any doubt or needs about Corrugated Cardboard Package Carton Box Compression Test Machine, please don't hesitate to send your inquiry.
