Other Mechanical Environmental Tester

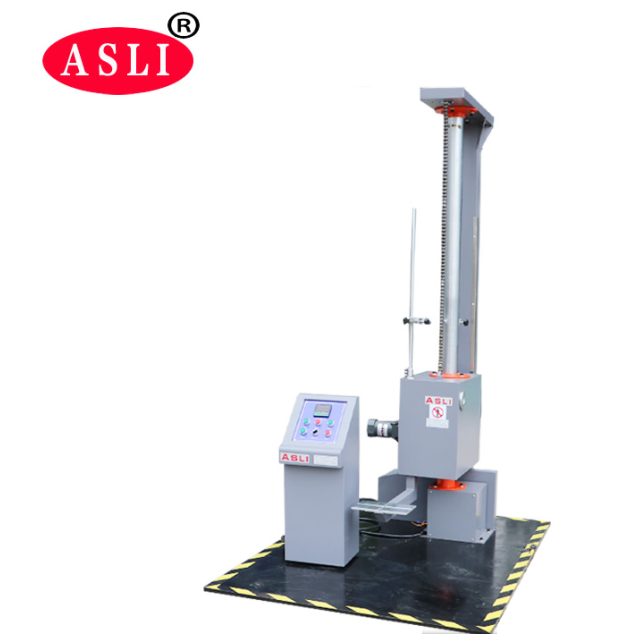

Carton Box Drop Resistance Testing Equipment for Face Angle Edge Testing

During the products handling or transport process, there may be drop/ fall, which results in damage within the products. and carton box drop resistance testing equipment for face angle edge testing simulates the drop/ fall of a finished product to evaluate the damage. all the rhombohedrons, angles and faces of the products can be tested..

Inquire Now
Description
Product Description

Carton Box Drop Resistance Testing Equipment for Face Angle Edge Testing is widely used to test a variety of products packaged in the handling or transportation to test the caused damage inside the product, and for the prevention of pesticide in advance, can use the machine to be tested is expected to arrive the best solution, so as to minimize transit losses, and to assess the impact of electronic components dropping resistance by the strength in the handling; packaging containers Ling, angle, surface reliability of the equipment.

Product Parameters
Name
Drop Tester
Model
AS-DT-120
AS-DT-150
AS-DT-200
Max. Weight of Test Samples (Kg)
≥200
100
100
Height of Drop (mm)
0~1200
300~1500
300~2000
Max. Dimension of Test Sample WxHxD (mm)
1200x1200x1200
1000x800x1000
1000x800x1000
Falling Floor Size WxHxD (mm)
1400x50x2000
1700x50x1200
1700x50x1200
Drop Method
Face, edge, angle
Test Bench External Dimension WxHxD (mm)
1400x2000x1800
1700x2700x1200
1700x2700x1200

Detailed Photos
Carton Box Drop Resistance Testing Equipment, Small Package Drop Test Machine
Carton Box Drop Resistance Testing Equipment, Small Package Drop Test Machine
Carton Box Drop Resistance Testing Equipment, Small Package Drop Test Machine
Carton Box Drop Resistance Testing Equipment, Small Package Drop Test Machine

Carton Box Drop Resistance Testing Equipment, Small Package Drop Test Machine

Drop Resistance Testing Machine Features

1. The spindle is used by precision grinding shaft lever, high precision, good stability
2. LCD screen displays multi-parameter.
3. Power failure safety design, keeping the original state when the power is failed.
4. Up and down lifting limitation setting
5. Adopt single arm supports test object.
6. Swing arm system is controlled by air pressure.
7. Free adjust pressure and speed up to 2G with object weight.
8. Test elctronic parts, finished products or angle surfae of the package container.
9. Decompression change design, low noise.
10. Best after sales service: One year free parts maintenance.
11. Meet international test standards.
12. Customization is available & welcomed.

Our Company
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Carton Box Drop Resistance Testing Equipment for Face Angle Edge Testing is our star products , and we had obtained the CE certification for this machine .

Packaging & Shipping

Carton Box Drop Resistance Testing Equipment, Small Package Drop Test Machine


Our Service
1.High quality guarantee.

2.Shipment with professional documents.

3.Packing as your request, with photo before shipment.

4.Reply within 48 hours and provide solution within 3 working days

5.Professional after-service from our engineers.

6.Warranty period 12 months.


Exhibition

Carton Box Drop Resistance Testing Equipment, Small Package Drop Test Machine

If you need more information about Carton Box Drop Resistance Testing Equipment for Face Angle Edge Testing, please feel free to send your inquries.
