Other Mechanical Environmental Tester

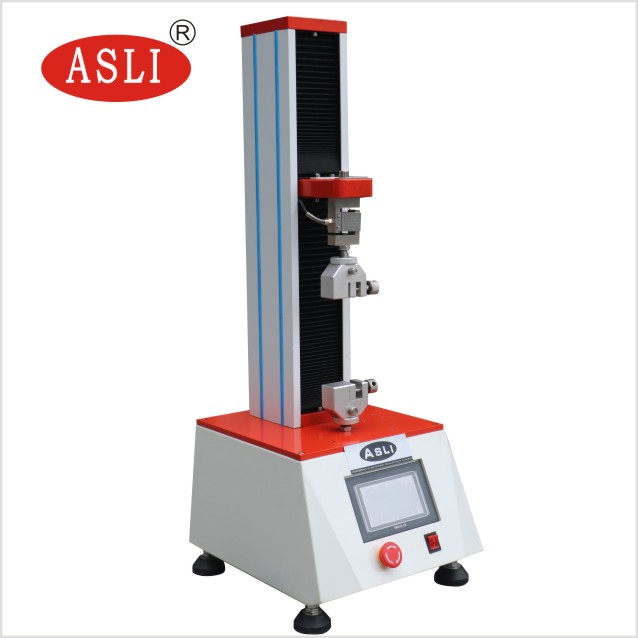

500N Desktop Micro-Computer Tensile Strength Tester

500N Desktop Micro-Computer Tensile Strength Tester is widely used in plastic film, solar photovoltaic, wire and cable, adhesive products, electronic products, textile materials and other industries, universities, research laboratories,  inspection and arbitration department, technical supervision and other departments.

Inquire Now
Description
Product Description

application:

500N Desktop Micro-Computer Tensile Strength Tester is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality contorl (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.application:

Desktop Micro-Computer Tensile Strength Tester
Desktop Micro-Computer Tensile Strength Tester



Product Parameters

Desktop Micro-Computer Tensile Strength Tester technical parameter:

ModelAS-DT-50
Sensing MethodLoad Cell
Volume (Kgf)3,5,10,20,30,50
Max. Route(mm)300
Load Accuracy±1%
 Load Resolution1/1000
 Speed Input Method Knob-style
Test Speed (mm/min)25-300
Dimension W×H×D (mm)620×1070×270
 Weight (Kg)40
 PowerAC220V 1 phase 3 lines


Desktop Micro-Computer Tensile Strength Tester Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

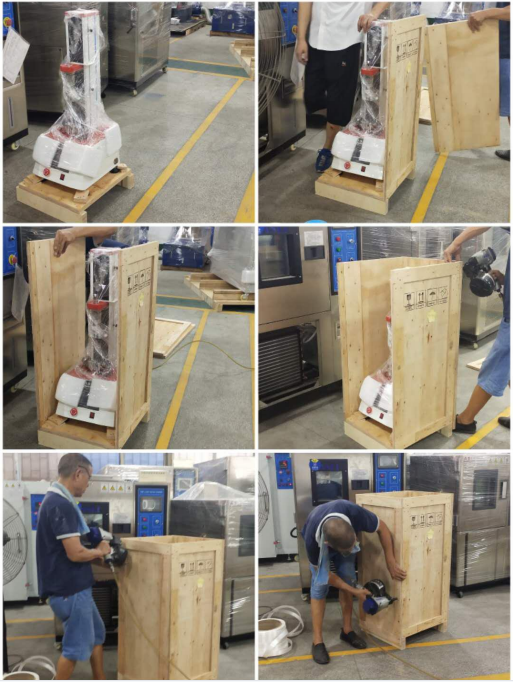

For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK


ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,500N Desktop Micro-Computer Tensile Strength Tester, mechanical shock tester,environmental combined vibration chamber,etc
Desktop Micro-Computer Tensile Strength Tester
