Other Mechanical Environmental Tester

2 Meters Steel Ball Drop Test Machine with IEC 60950-1 Standard

2 Meters Steel Ball Drop Test Machine with IEC 60950-1 Standard adopts DC electromagnetic control method. The steel ball of the required weight is placed under the electromagnetic suction cup, the steel ball is automatically sucked up, pressing the falling key,the steel ball is released by the suction cup. The steel ball will do free fall testing. and impact the surface of the piece. The drop height can be adjusted up and down, a height scale is attached to know the drop height of the product.

Inquire Now
Description

Applications:
2 Meters Steel Ball Drop Test Machine with IEC 60950-1 Standard is used to measure the impact resistance by the specified steel ball at specified height. It applies for ceramic, acrylic, glass, plastic and etc.


Ball Drop Test Machine Parameter:

ModelAS-DB-200
Max. Height0 ~ 2 m
Drop MethodFree falling
Weight and diameter
of Steel Ball
One set steel ball:
112g(Φ30mm), 198g(Φ36mm), 225g(Φ38mm), 357g(Φ41mm), 533g(Φ51mm), 1042g(Φ64mm), 2280g(Φ82mm)
Steel ball standard: JIS K-5400
DimensionApprox. W530*H2040*D530 mm
Packed DimensionApprox. W640*H2210*D640 mm
Weight100 Kg
PowerAC220V, 1 phase 3 lines
RailAccording to customer's requirement




Application:

1. Keep the testing sample inside of the Safety fence,adjust the position of sample by the infrared light spot then Fix the sample by the clamp.

2.twist the handle, adjust the required height, then tight it.
3. Power on (220v)
4. Press the power switch, power indication light on.
5. Press the start button,choose the required  steel ball,touch the electromagnet, steel ball will be be absorbed on the electromagnet.
6.Press test bottom to start the test
7.Switch off the power after finishing the test

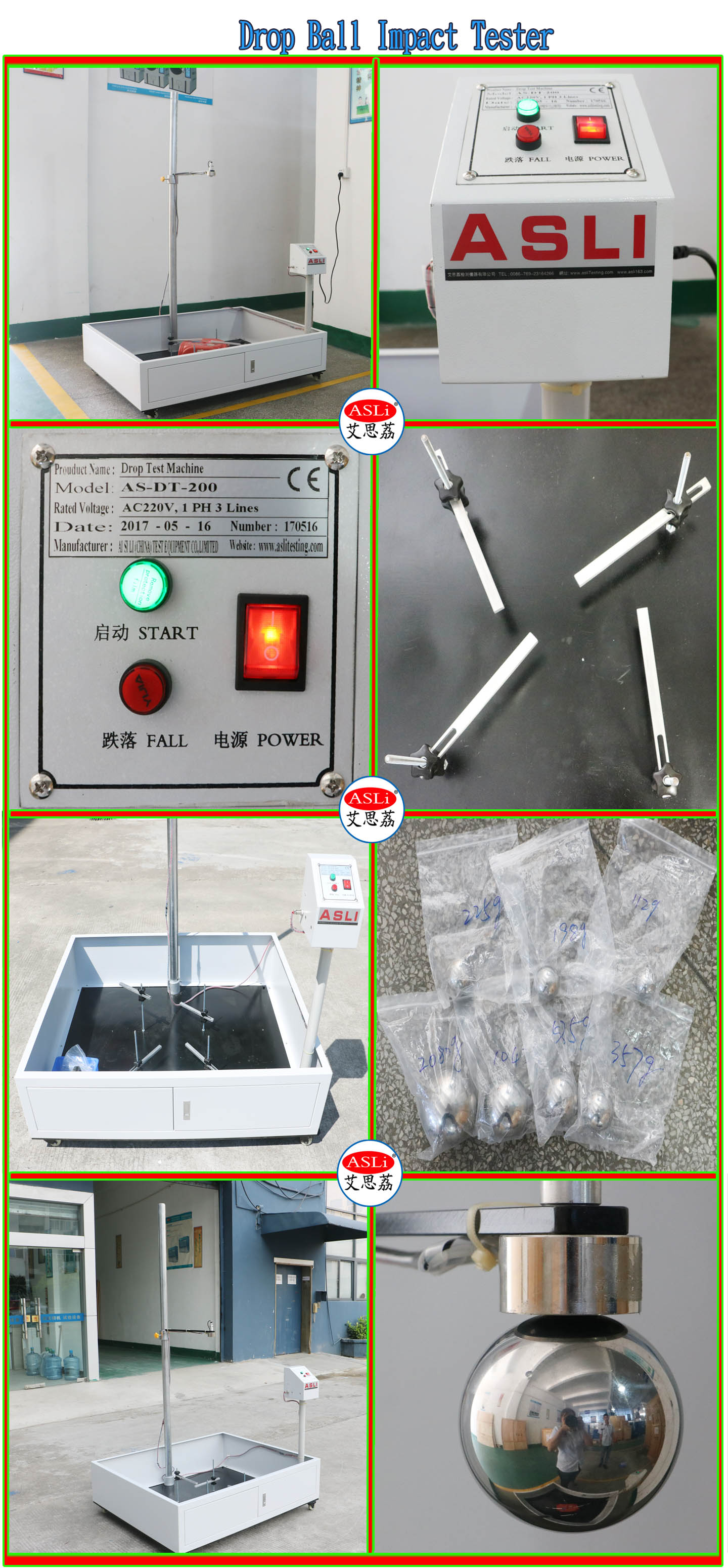

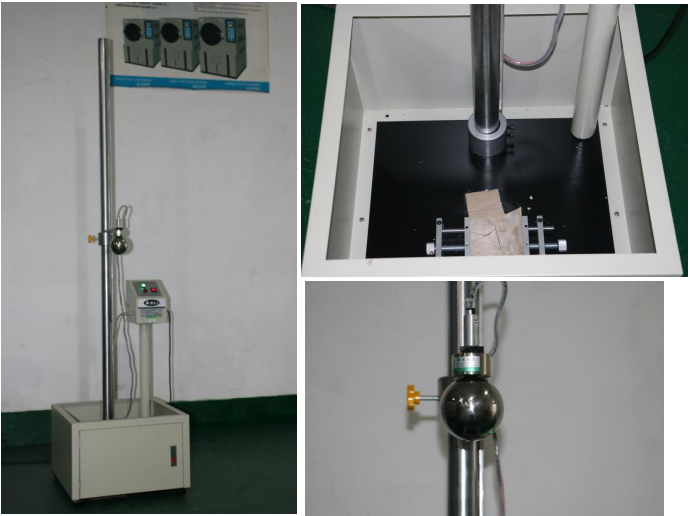

Pictures for reference:

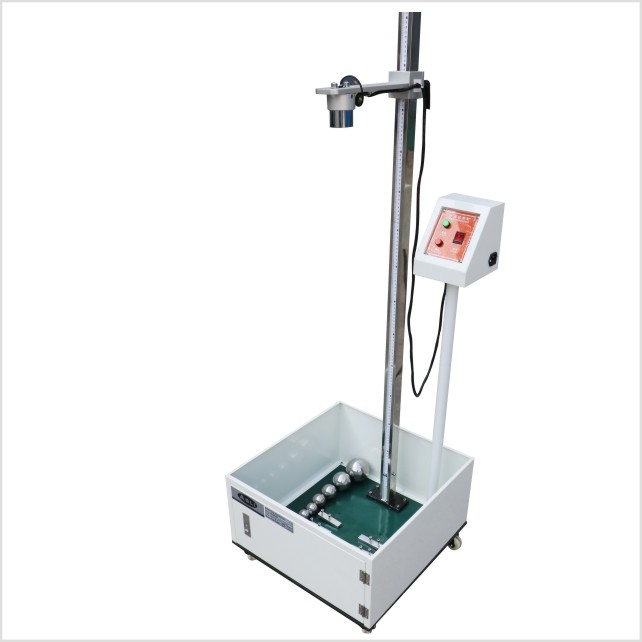

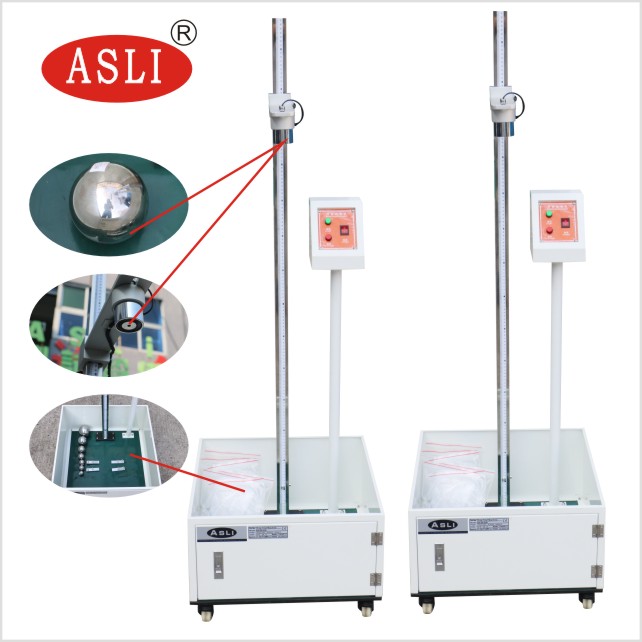

2 Meters Steel Ball Drop Test Machine with IEC 60950-1 Standard

Any doubt or needs about 2 Meters Steel Ball Drop Test Machine with IEC 60950-1 Standard, please don't hesitate to contact us.
