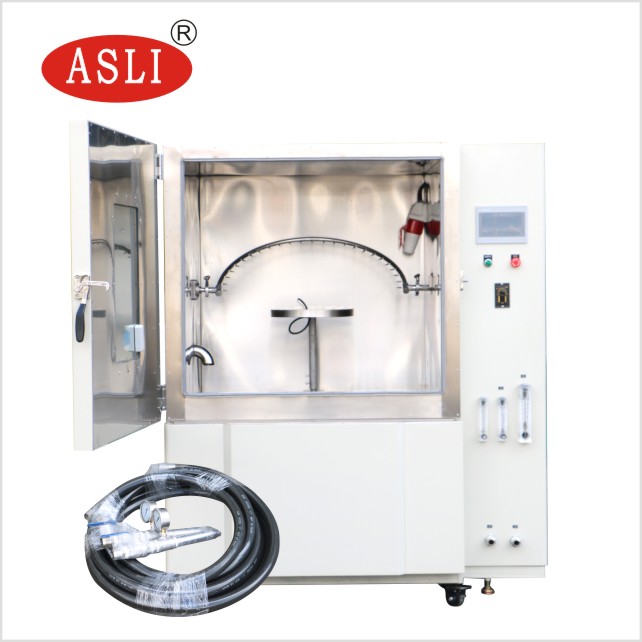

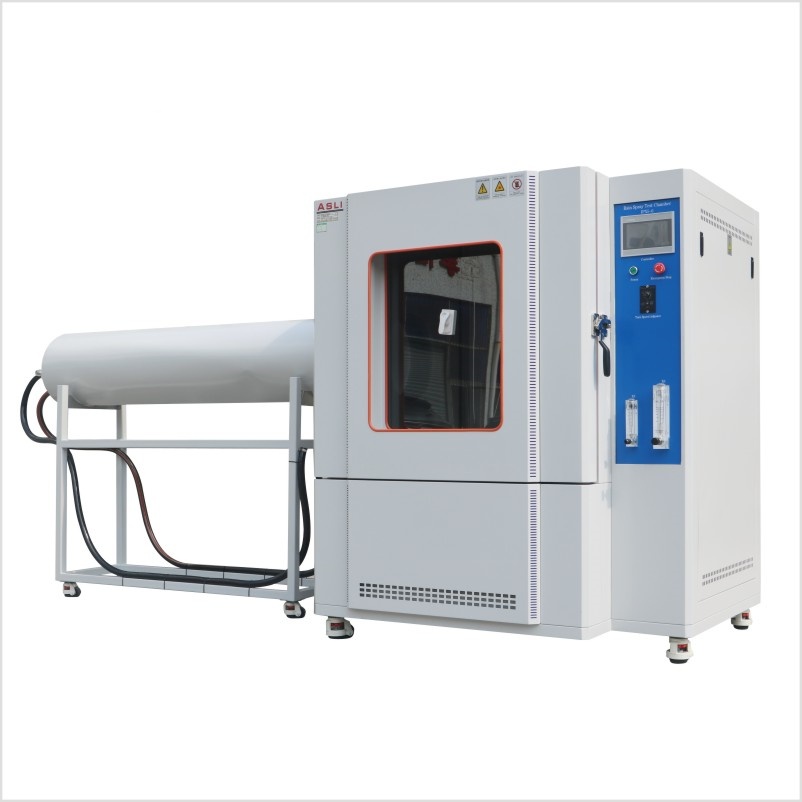

IP Class Rain Water Spray Simulation Environmental Test Chamber

IP Class Rain Water Spray Simulation Environmental Test Chamber is mainly used to check whether the product shell/seal can guarantee the good working performance and technical status of the equipment and components after the rain test or during the test. At the same time, the product may be affected by water immersion in the process of transportation and use, which provides reference basis for product technical standards. Applicable to the artificial rain test based on natural conditions, without rain with strong wind speed, without considering the high temperature of the sample and rain temperature difference caused by a large number of water.

Inquire Now

Description

IP Class Rain Water Spray Simulation Environmental Test Chamber

Application:
weathering water resistance test chamber is applied to test the shell's waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product's waterproof performance and assess the product's waterproof performance's loss classification.

1.IPX1, IPX2 test
     IPX1, X2 Negative pressure to absorb design
     Unique nozzle, not easy to block
2.IPX3, IPX4 test
     Pipe swing-type designed with gear motor, angle and speed adjustable.
     Nozzle Angle aiming at the circle center
3.IPX5, IPX6 test
      IPX5, IPX6 titanium alloy Nozzle
      Water column non-proliferation
  4.IPX9K test
      IPX9K imported pump, high temperature & high pressure resistant
      Standard titanium alloy Nozzle
      Homogeneous distribution of pressure

weathering water resistance test chamber Technical parameters:

Model	RT-1000A	RT-1000B
Test Standard	JIS, ISO, IEC60529, DIN40050, GB2423, GB4208 standard
Internal Dimension WxHxD (mm)	1000x1000x1000
External Dimension WxHxD (mm)	1600x1900x1400
JIS Test	Flow:1.8L/Min~3.9L/Min	Flow:24.5L/Min~39.2L/Min
	pressure:0.1kgf/cm2~0.3 kgf/cm2	pressure: 1kgf/cm2~3 kgf/cm2
Drop Test	1~1.5mm/Min Adjustable IPx1 IPx2 drop speed: 1~1.5mm/Min adjustable	3~3.5mm/Min Adjustable drop speed:3~3.5mm/Min adjustable
Rain of Pipe-Swing Test	IPx3 IPx4 swing pipe: RT~±80ºC Flow:0.07L/min per Nozzle
Water Spray Test	IPx3 IPx4 jet:2.5m~3m flow :12.5L/min ~100L/Min
High Pressure Jet Test	80Kgf~100Kgf IPx9K pressure of jet:80Kgf~100Kgf Flow:14~16L/Min
Rotating Speed of Rotating-Plate	4~20 RPM adjustable

weathering water resistance test chamber feature:
1. Water pressure and flow rate adjustable.
2. Unique sprinkler can stably control the rain quantity and pressure.
3. This equipment (Model B) can make the test products' temperature rising from RT-85ºC
4. Inner case's material is imported steel plates, Shell is made of #304 stainless steel.
5. This equipment applies rain spray test for products and parts.

For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
