EN 60529 Standard Sand Dust Resistance Test Machine
Application:
environmental sand dust resistance test machine is used for dust test including floating dust and cyclone dust: for all kinds of automobile parts, such as, automobile lamps, meter, safe belt, seat regulator, dirt-proof boot of electrical appliance, lockers etc.
Sand dust resistance test machine technical parameters:
| Model | DT-C1 | DT-C2 |
| Remark | C for cyclone dust |
| Concentration of Sand and Dust | C1:
5000mg/ m3, 5m/s | C2:
100mg/ m3, 10m/s |
| Internal Dimension WxHxD (mm) | 1000x1000x1000 |
| External Dimension WxHxD (mm) | 1650x1850x1450 |
| Temperature Range | RT(25ºC±15ºC), or lab temperature |
| Humidity Range | 35~90% R.H., or lab humidity |
| Talcum Powder Dosage(Kg/m ²) | 2 ~4 |
| Metal Net Mesh Standard Diameter(μm) | 50 |
| Diameter Between Metal Wires(μm) | 75 |
| Powder Spray & Dust Fall Mode | 1. Dust fall freely: adopt centrifugal fan to blow the sand or dust to the 1/5 of roof, then fall freely.
2. Blow the sand or dust: pressure spray dust from the bottom, multi-steps pressure adjustable |
| Test Standard | Meet JIS, ISO, IEC60529,DIN40050,GB2423 test standard |
| Power | AC 220V(±10%), 1 phase 3 Lines,50/60HZ ; |
EN 60529 Standard Sand Dust Resistance Test Machine features:
1. Adopt strong spray dust device, the user can operate independently for No.1 floating dust, No.2 floating dustt,No.3 floating dust on the gauge panel.
2. Adopt vibration device; spray dust's density can be the same every time.
3. Precision collection for dust concentration, Can reduce the misestimate concentration because of improper operation
4. Meet DIN, IEC, GB, ISO, JIS standard
5. Control system: be connected with and monitored by computer
6. Convenient design for dust cleaning.
7. Synchronous resonance function to ensure of the uniformity of dust concentration

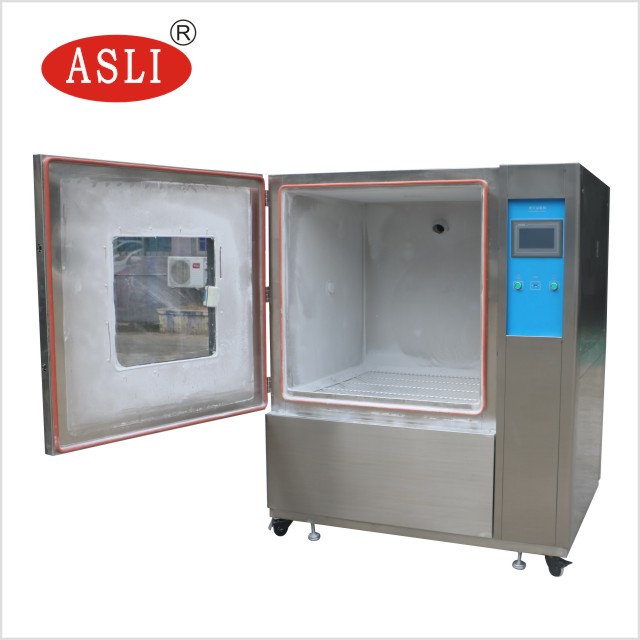

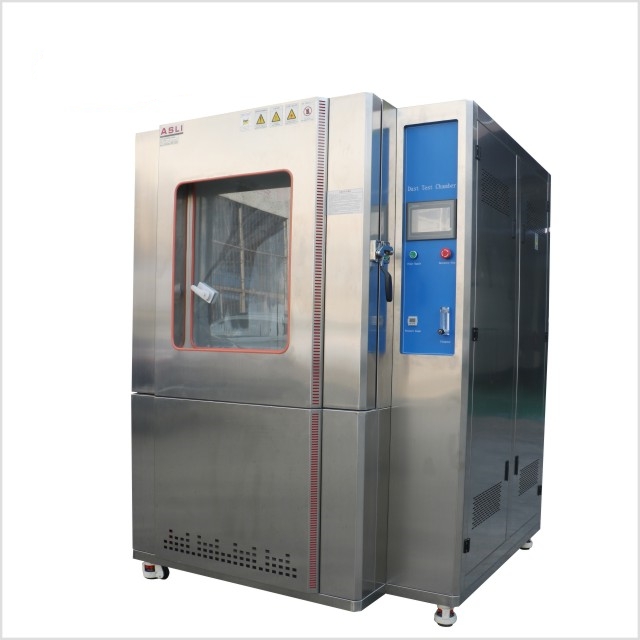

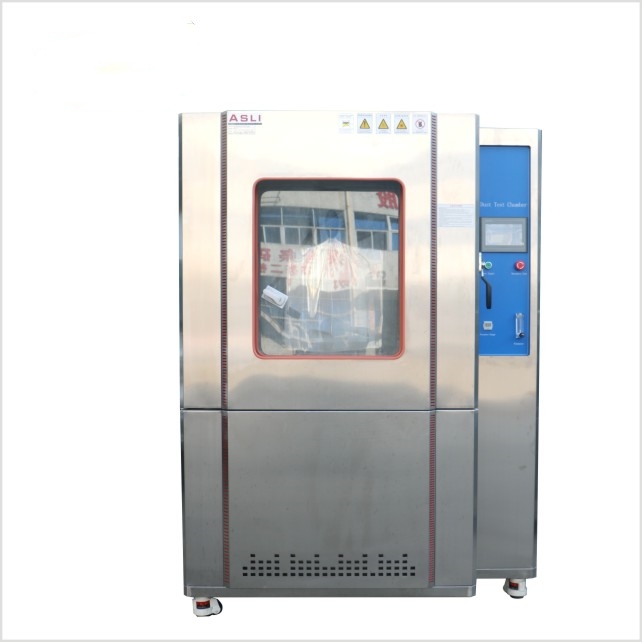

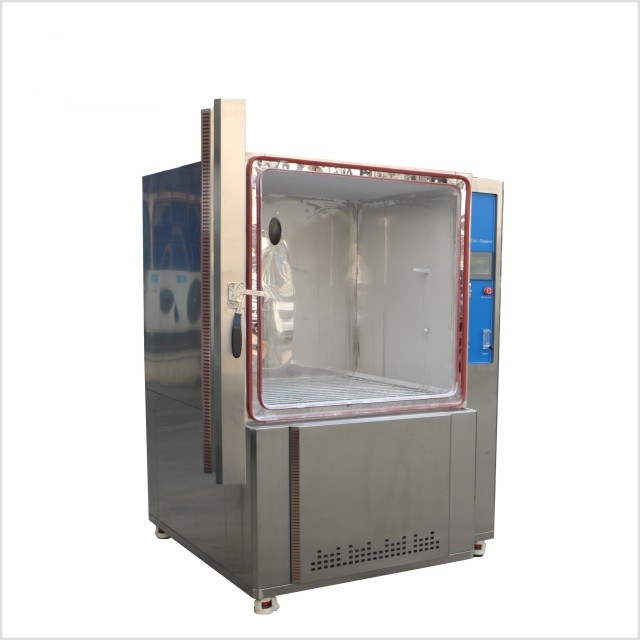

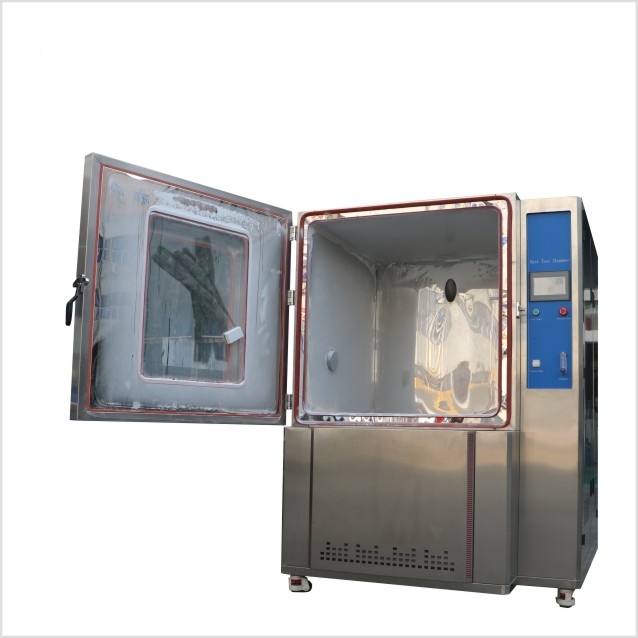

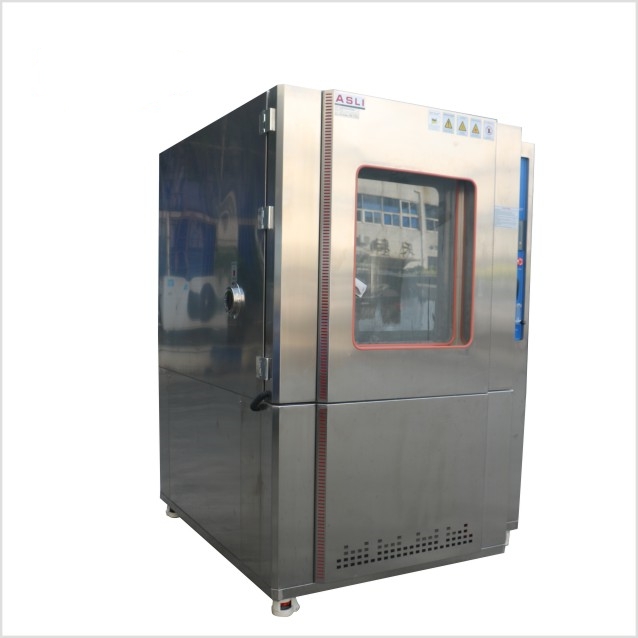

Pictures for reference:
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,environmental sand dust resistance test machine,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
any doubt or needs about EN 60529 Standard Sand Dust Resistance Test Machine, please don't hesitate to contact us.
