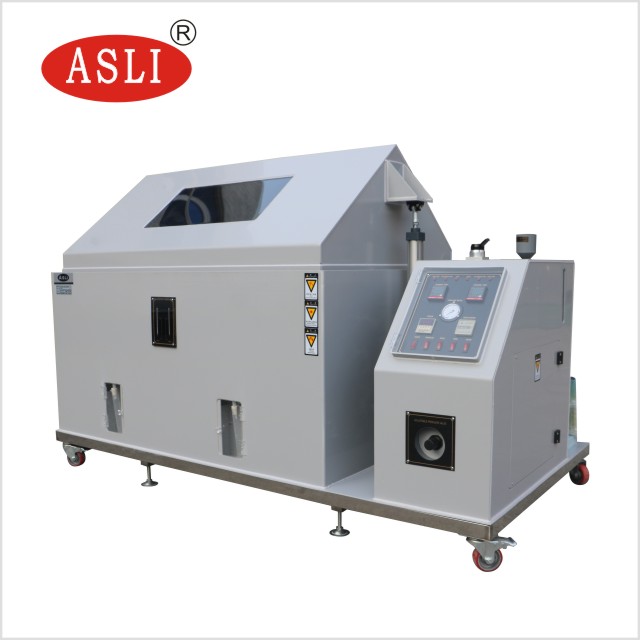

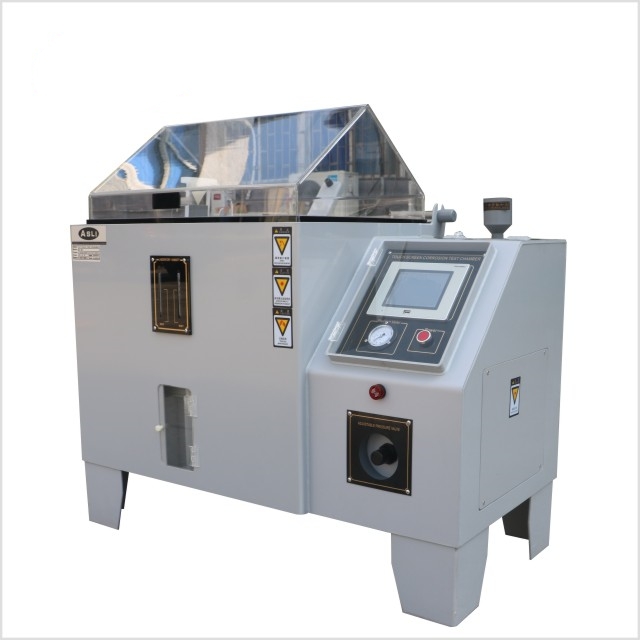

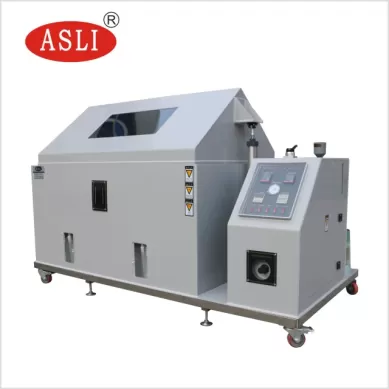

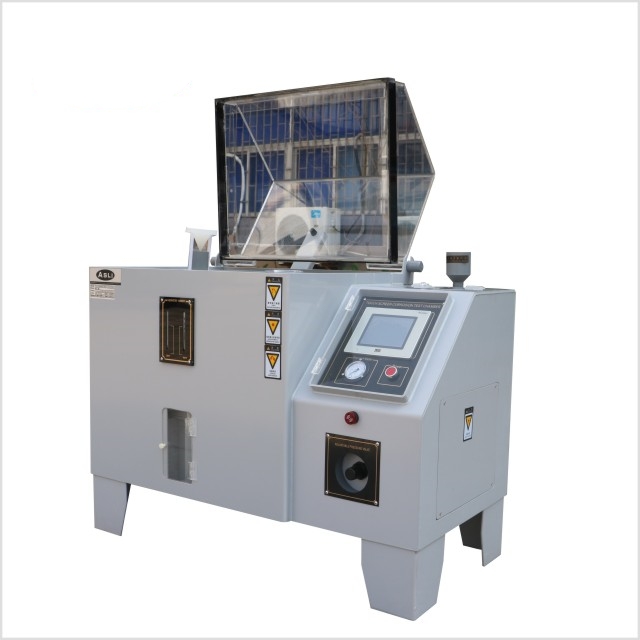

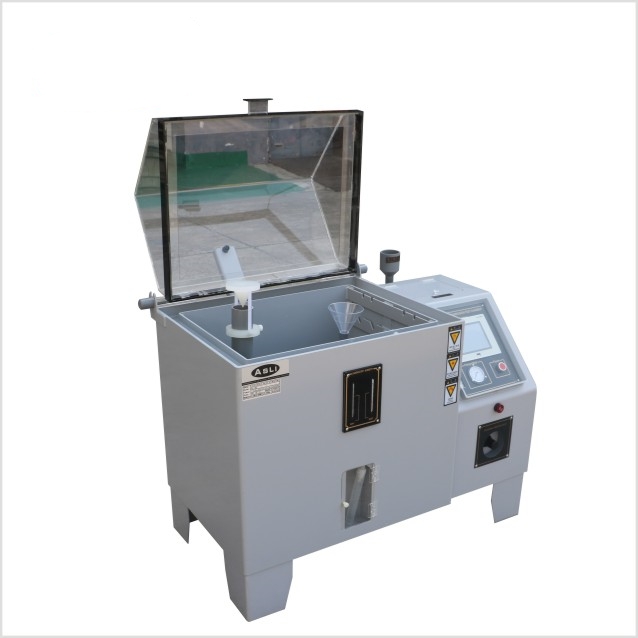

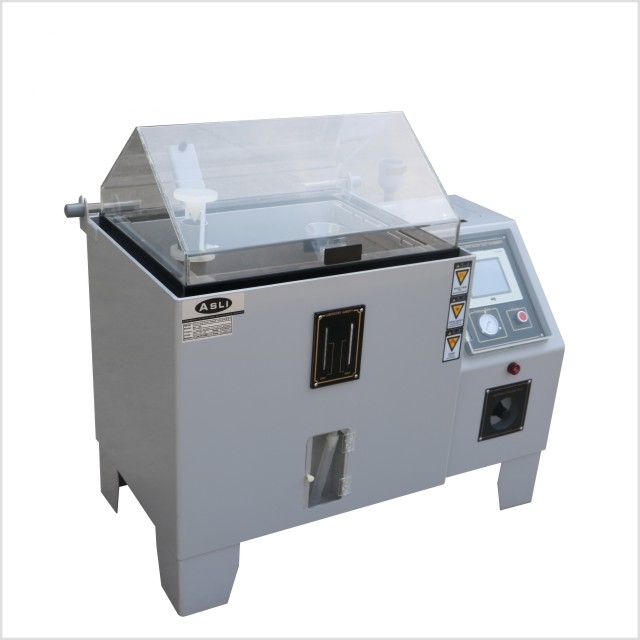

ASTM B117 Salt Spray Corrosion Test Machine

The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.

Inquire Now

Description

ASTM B117 Salt Spray Corrosion Test Machine for Accelerated Corrosion Testing can be used for a variety of materials including coating, surface treatment, electroplating, organic and inorganic coating, anodizing, rust proof oil and preservative treatment test of its corrosion resistance, so as to establish the quality of the products.

Standard :

1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
ASTM B117 Environmental Salt Spray Equipment Chamber Test Machine for Accelerated Corrosion Testing

ASTM B117 Environmental Salt Spray Equipment Chamber Test Machine for Accelerated Corrosion Testing

Name	ASTM B117 Salt Spray Corrosion Test Machine
Model	SH-120	SH-160	SH-200
Internal Dimension WxHxD (mm)	1200x500x800	1600x500x800	2000x500x800
External Dimension WxHxD (mm)	2100x1400x1300	2300x1400x1300	2700x1400x1300
Lab Temperature	Saline test (NSS ACSS) 35±1 ºC ;Corrosion Test (CASS)50±1 ºC
Pressure Bucket Temperature	Saline test method (NSS ACSS) 47±1 ºC / Corrosion Test (CASS)63±1 ºC
Lab Capacity(L)	480	640	800
Saline Capacity(L)	40	40	40

ASTM B117 Environmental Salt Spray Equipment Chamber Test Machine for Accelerated Corrosion Testing

Specifications

1.LCD display and a pid controller or touch screen programmable controller.
2.Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products, strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
3.Controller are in the same panel, the operation simple and clear.
4.Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test lab

Packing Detail:
Any doubt or needs about ASTM B117 Salt Spray Corrosion Test Machine, please don't hesitate to contact us.
