------Internal dimension can be customized
------Different Temperature Can be Choose
------Programmable LCD touch screen controller is optional
Application:

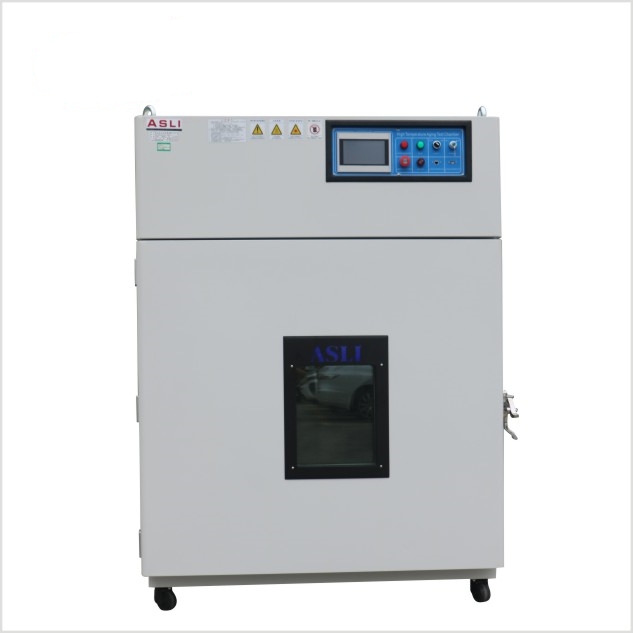

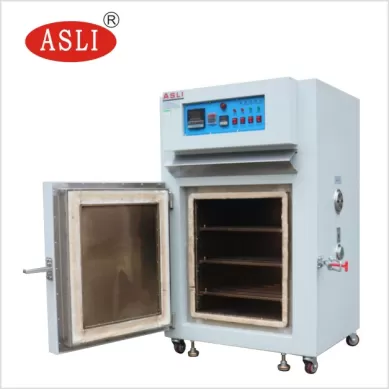

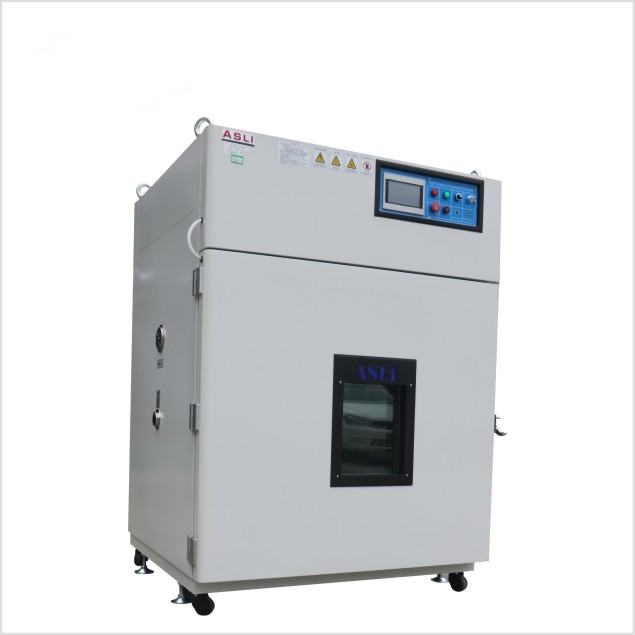

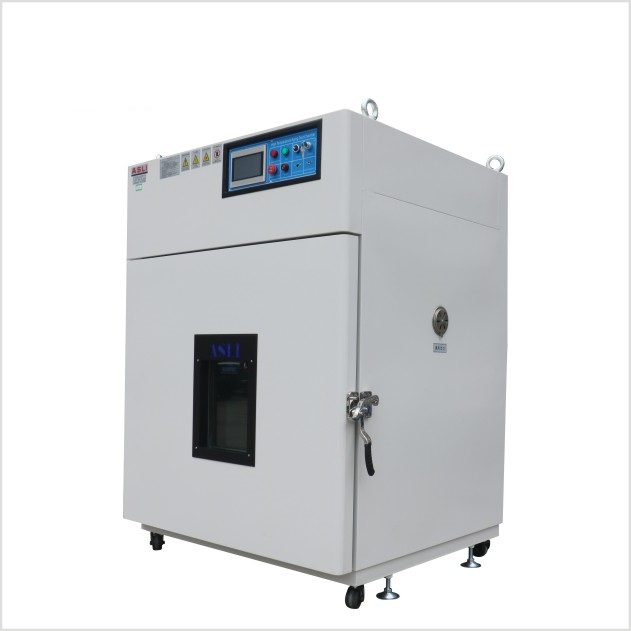

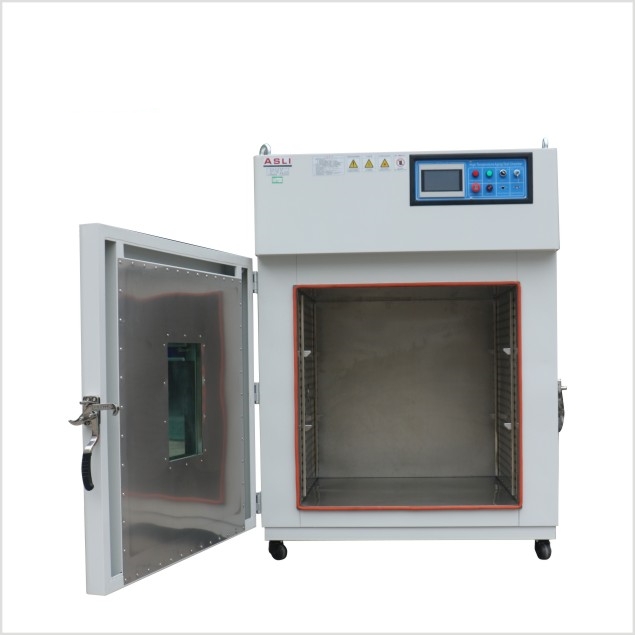

300 Degree High Temperature Drying Oven is designed to do a drying test, baking test, heat treatment test, disinfecting test, etc. It can be filled with inert gas and dry some ingredient complex materials quickly. It is applicable for drying, cure, melting and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.
Product Parameters
| Model | RHD - 45 | RHD - 60 | RHD - 90 | RHD - 120 |
Internal Dimension
W×H×D(mm ) | 450×400×400 | 500×600×500 | 600×900×500 | 800×1200×700 |
External Dimension
W×H×D(mm ) | 650×900×550 | 700×1200×650 | 850× 1600×700 | 1200× 1680×900 |
Interior and Exterior
Material | Interior material is SUS 304# stainless steel,
exterior is stainless steel or SEE cold-rolled steel with paint coated. |
| Temperature Range | R.T. to 200; (300 to 500ºC is optional) |
Indication Resolution/
Distribution Uniformity
of Temperature | 0.1ºC/±2.0ºC;( When temperature is 100ºC) |
Control Accuracy of
Temperature | ±0.5ºC; |
Temperature Rising
Velocity | Temperature rising velocity: from R.T. to 200ºC,needs approx. 35mins |
| Control Method | Micro PID+SSR+Timer |
| Storage Shelf | Two layers |
| Viewing Window | When temperature is RT to 200ºC ,with viewing widow
When temperature is 200ºC to 500ºC ,without viewing widow |
| Power | AC 220V 50/60HZ ; AC 380V 50/60HZ |
1. Automatic temperature control with digital thermal-sensor
2. Excellent thermal insulation property of ovens wall, lower energy consumption,
3. Be able to pre-set temperature, digital temperature display with LED panel.
4. Temperature value flashes on indicator when reach preset value.
5. Circulation fan facility to keep even temperature and uniform heating Detailed Photos
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Our advantage
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. 300 Degree High Temperature Drying Oven is our star products , and we had obtained the CE certification for this machine .
Our reputation is built on superior quality and outstanding customer service. Warmly welcome your coming.
