How Thermal Shock Test Chambers Enhance Product Environmental Adaptability
In modern product development, environmental adaptability has become critical to ensuring product reliability and durability. Many industries employ thermal shock test chambers to simulate extreme temperature fluctuations, testing how products withstand rapid temperature shifts. Thermal shock tests, which replicate sudden heating and cooling cycles, are invaluable in industries like electronics, automotive, aerospace, and materials science. This article explores the principles of thermal shock test chambers, key technologies, and their significant role in enhancing product adaptability.

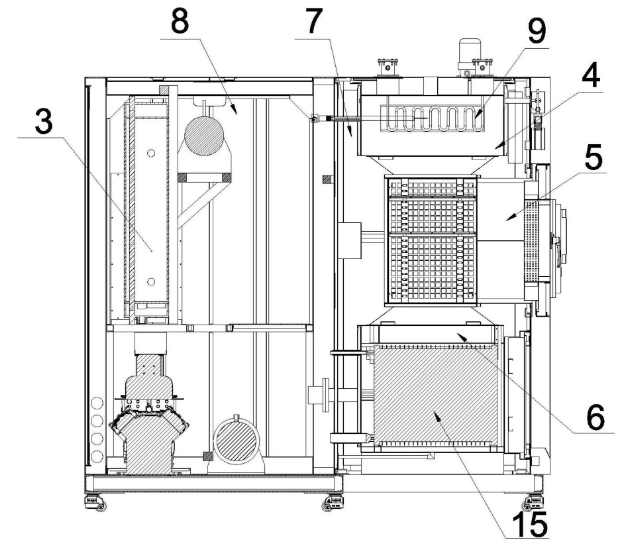

（Thermal shock test chamber structure diagram）
1. Working Principles of Thermal Shock Test Chambers

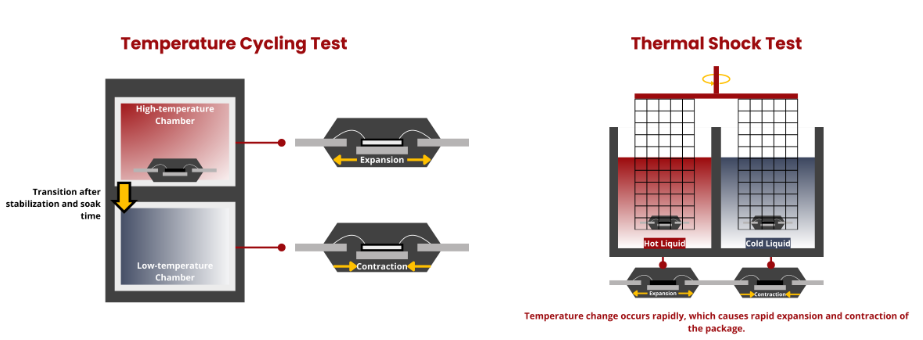

Thermal shock test chambers are typically divided into two zones: a high-temperature zone and a low-temperature zone. During testing, products are rapidly transferred between these zones to simulate intense temperature fluctuations. This process subjects the test samples to an accelerated “aging” effect similar to real-world environmental stresses.
Zone Switching: Within the chamber, samples are moved between hot and cold zones, allowing materials to undergo rapid “thermal expansion and contraction” cycles, simulating real-life temperature shock scenarios.
Heat Conduction and Exchange Efficiency: High-quality thermal shock test chambers feature highly efficient heat exchange systems that ensure uniform and rapid temperature switching.

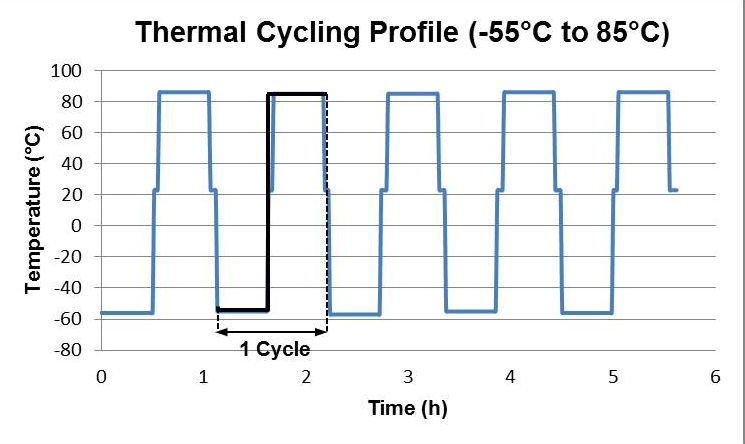

(Temperature curve of thermal shock test）
2. Key Technical Features of Thermal Shock Test Chambers
To achieve accurate results and maintain device durability, thermal shock test chambers incorporate advanced technology. Here are some of their core features:
Fast Temperature Switching: High-performance test chambers can switch zones within seconds, maximizing the ability to simulate real environmental conditions.
Temperature Uniformity and Stability: Unlike standard temperature test devices, thermal shock chambers require high temperature uniformity, achieved through advanced airflow systems and precision sensors.
Durability and Shock Resistance: Built with high-durability materials that withstand extreme fluctuations, test chambers ensure long-term stability during repeated temperature cycling.
Data Collection and Analysis: Modern thermal shock chambers offer data collection systems that monitor temperature variations and testing duration in real-time, often supporting remote access for comprehensive data analysis.
3. Applications of Thermal Shock Testing in Improving Product Environmental Adaptability
Thermal shock test chambers are widely used across various sectors to assess environmental adaptability and longevity. Below are examples of how different industries benefit from this testing:
Electronics and Semiconductor Industry
Electronic components are particularly vulnerable to temperature changes, which can lead to solder joint cracks or chip failure. Thermal shock testing replicates rapid “thermal fatigue” conditions for electronic devices, ensuring that products like smartphones and industrial controllers maintain reliable performance in varied climates.
Automotive Industry
In the automotive sector, thermal shock testing helps verify the adaptability of engine components, plastic parts, and seals. For instance, rapid temperature cycles simulate the effects of extreme summer heat or winter cold, allowing manufacturers to assess material resilience against cracking or warping.
Aerospace Industry
Aerospace components frequently experience sudden temperature shifts due to changes in altitude and airflow. Thermal shock testing simulates these fluctuations, verifying the durability of critical mechanical, electronic, and structural components, which is crucial for both safety and performance.
Materials Science and Research
In materials science, thermal shock testing is instrumental in studying how materials respond to rapid temperature changes. Testing data informs the design of new materials that can withstand specific temperature ranges, supporting advancements in everything from construction materials to automotive alloys.

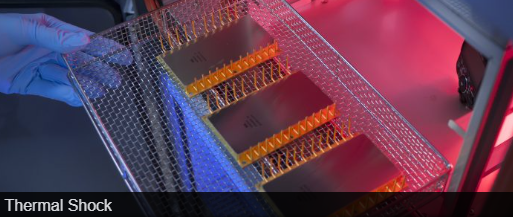

（Thermal shock testing in the electronics industry）
4. Testing Process and Data Interpretation
Thermal shock testing requires precise data collection and interpretation to provide actionable insights. The general process involves the following steps:
Sample Preparation: Before testing, samples are often cleaned or pretreated to eliminate impurities and ensure test accuracy.
Temperature and Time Control: Set high and low-temperature limits based on testing needs. Test duration and switching speed must follow industry standards to replicate real conditions.
Data Collection and Monitoring: Throughout the test, data on temperature, stress, and material changes is collected for analysis.
Results Analysis: Analyze results to assess the product’s performance under thermal shock, noting any cracks, deformations, or joint failures. Data interpretation standards can help customers better understand their product's environmental resilience.
5. How to Use Thermal Shock Testing Results to Optimize Product Design
Thermal shock testing offers critical data that guides product design improvements. Through analysis, companies can enhance structural design and material selection:
Material Selection: Components prone to cracking or warping during testing can be replaced with materials optimized for thermal stability.
Structural Optimization: For areas affected by stress concentration, structural adjustments can reduce damage from expansion and contraction.
Process Improvements: Enhanced welding techniques or high-temperature solder can improve joint integrity, reducing the risk of failure during thermal cycling.
6. Future Trends in Thermal Shock Testing Technology
As automation and data analysis technology advance, thermal shock test chambers will increasingly emphasize smart features, remote access, and enhanced precision. Intelligent chambers now support real-time monitoring and predictive maintenance alerts, giving engineers immediate insights into performance. With IoT integration, cloud-based data access and control will simplify test management, enabling faster data-based design iterations and product development.
