Mechanical Shock and Impact Tester

MIL-STD-810F Standard Mechanical Shock Bump Tester

MIL-STD-810F Standard Mechanical Shock Bump Tester is intended to simulate the effects of repetitive shocks likely to be experienced by components when they are transported in a vehicle from one place to another place or installed for its application on a moving vehicle or platform. The tests can be performed in accordance with worldwide standards such as IS, BS, MIL, DIN, EN, ISO, IEC, DEF & ASTM.

Inquire Now
Description

Aapplication:

MIL-STD-810F Standard Mechanical Shock Bump Tester is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards And other Environmental testing.

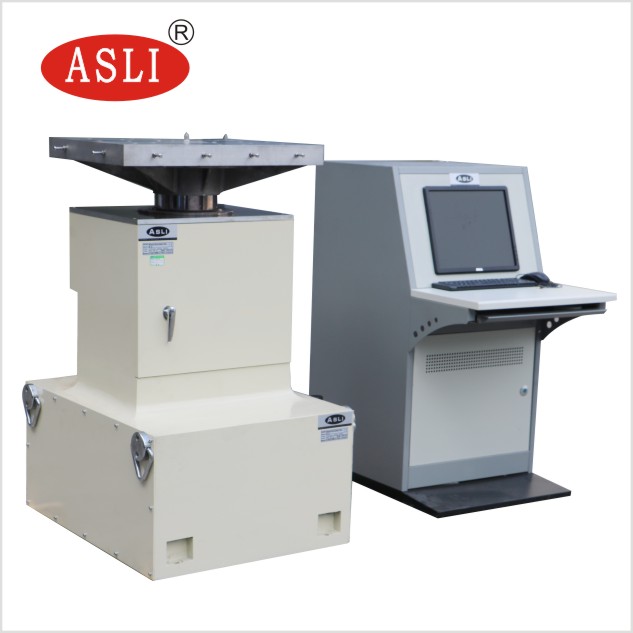

Mechanical Shock Testing Machine
Shock and measure controller

Mechanical Shock Testing Machine, Mechanical Impact Test Equipment with Mil-Std-810g Standard

MIL-STD-810F Standard Mechanical Shock Bump Tester Features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. Extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.

Product Parameters
Technical Parameters
ModelMS-50MS-100MS-200MS-500MS-800
Load capacity (kg)50100200500800
pulse  acceleration( m/s2)50~120050~100050~100050~50050~500
Pulse Width (ms)20~320~320~320~320~3
Frequency     (times /min)10~8010~8010~8010~8010~80
Table Size (mm)500*700700*700700*700800*8001000* 1000
Max. Dropped Height  (mm)6060606060
Pulse Type Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)
External Dimension        W*H*D (mm)800*1300*
1000
800*1300*
1000
850*1350*
1100
1000*1300*
1900
1000*1300*
1900
Weight (Kg)11001250200030003500
Protection Device Door protection, over-load protection, zero signal protection
Power AC 220V(±10%), 1 Ph 3 Lines ,50/60HZ;   AC 380 V(±10%) ,3 Ph  5 Lines,50/60HZ
Environmental Conditions Temperature: 25degree C ±5.0degree C humidity: <85%(25degree C)



Detailed Photos

Mechanical Shock Testing Machine, Mechanical Impact Test Equipment with Mil-Std-810g Standard

Customer Traning at ASLI factory:

Mechanical Shock Testing Machine, Mechanical Impact Test Equipment with Mil-Std-810g Standard

Application:
Mechanical Shock Testing Machine, Mechanical Impact Test Equipment with Mil-Std-810g StandardIf you need more information about MIL-STD-810F Standard Mechanical Shock Bump Tester, please feel free to send your inquiries.
