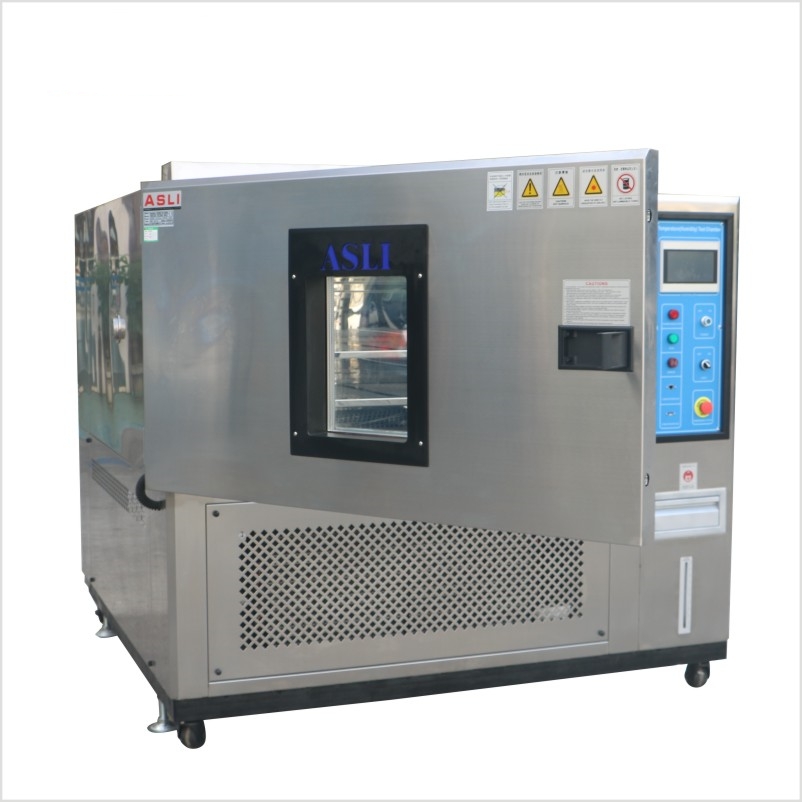

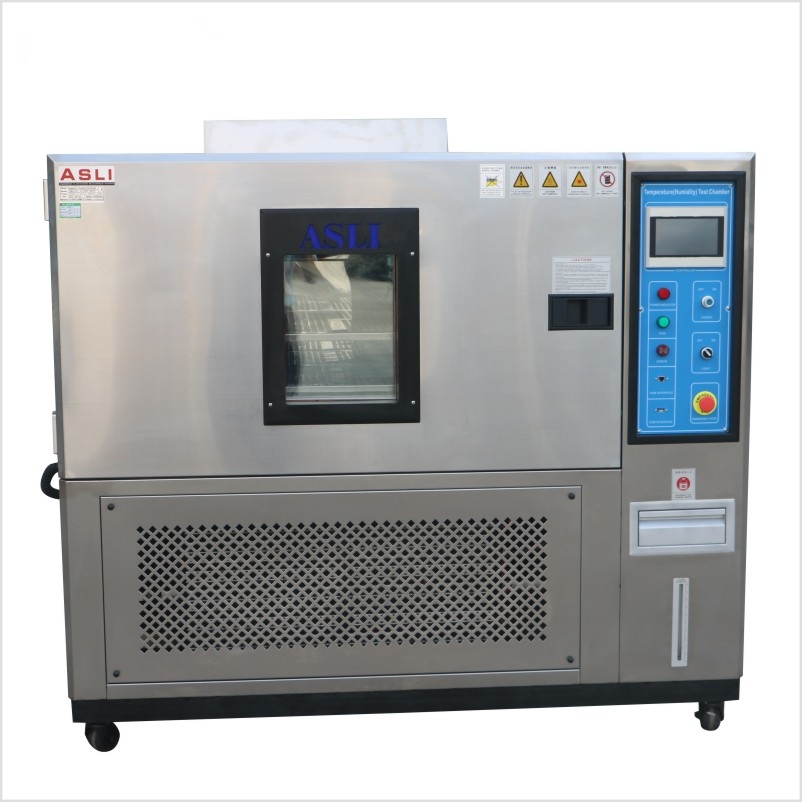

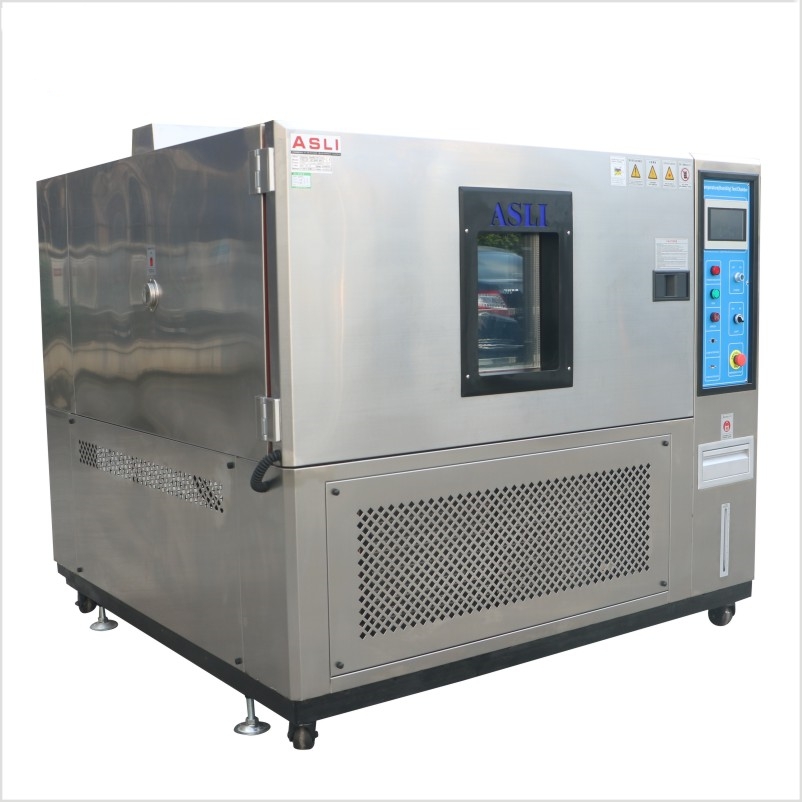

Rapid temperature change test chamber linear nonlinear control with load
Touch Screen Programmable Rapid Temperature Change Equipment is used to test various types of materials for their tolerancesof heat,cold, dry, humidity. It is applied for qualityinspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

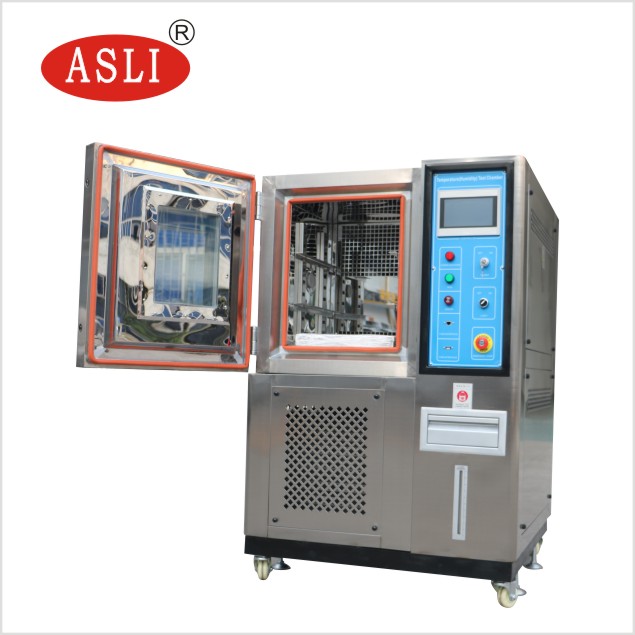

Inner door with operation hole (optional)
Sample Shelves, two layers
| Model | F-TH-150(A~F) | F-TH-225(A~F) | F-TH-408(A~F) | F-TH-800(A~F) |
|
Internal Dimension
W*H*D( mm) | 500*600*500 | 600*750*500 | 600*850*800 | 1000*1000*800 |
|
Internal Dimension
W*H*D (mm) | 1100*1750*1600 | 1200*1800*1700 | 1250*1900*1900 | 1600*2050*2150 |
|
Range of Fast
Temperature Change | Temperature Range: -70~+150degree C; Range of Fast Temperature Change:
-45~+85degree C; Ma*. temperature rising/falling speed is 15degree C/min when
the whole process with linear control . |
| Humidity Range(Optional) | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional ,need Dehumidifier) |
Indication resolution/
Distribution Uniformity
of Temperature and Humidity | 0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H. |
Control Accuracy of
Temperature and Humidity | ±0.5degree C; ±2.5% R.H. |
Temperature Rising/
Falling Velocity | Rising/Falling Speed Rate with linear control : 3~15degree C/min, adjustable
Rising/Falling Speed Rate non-linear control : 3~30degree C/min, adjustable |
| Material | Interior material is SUS 304# stainless steel,e*terior is stainless steel or SEE
cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam
insulation materials |
| Cooling System | Water cooled/single segment compressor |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low
voltage coolant protection switch, over-humidity and over-temperature protection
switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole(Optional), Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC380V 3Ph 5 lines, 50/60HZ |
| Approx. Weight(Kg) | 250 | 350 | 450 | 600 |
|
Programmable Rapid Temperature Change Equipment Features:
2. Rectangular double-paned viewing window for observation of sample under test,with interior lights
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

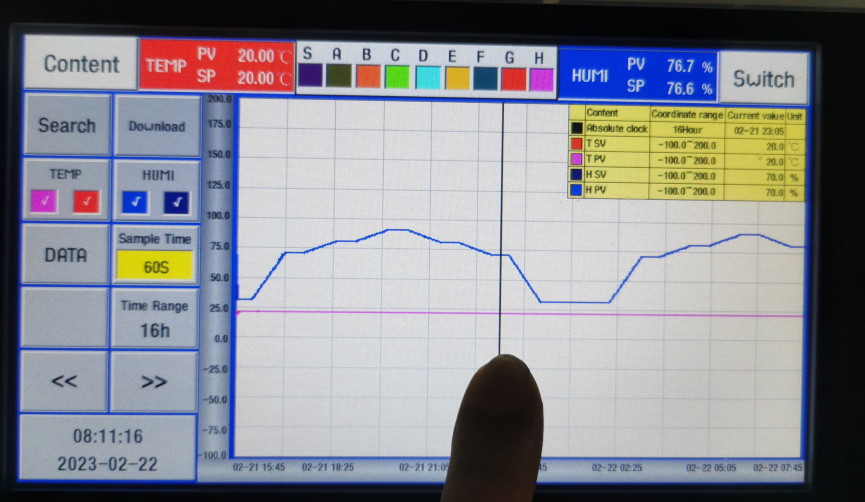

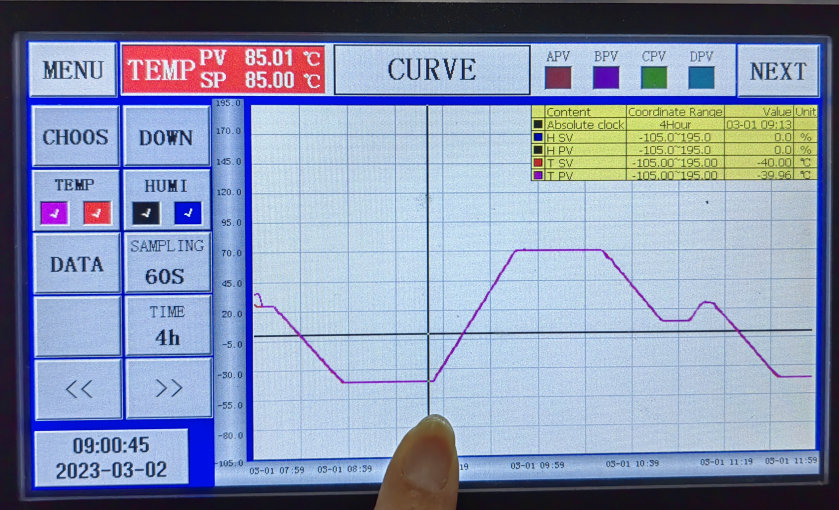

6. LCD display screen is used for the control unit, capable of displaying set point and actual point at the same time
8. Quick or ramp rates control of temperature and humidity.

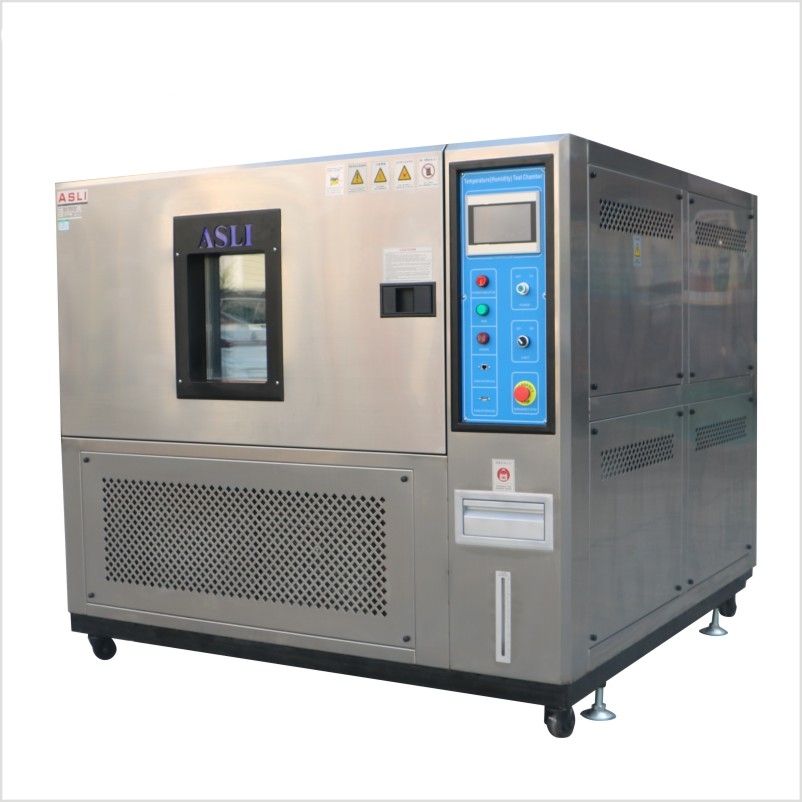

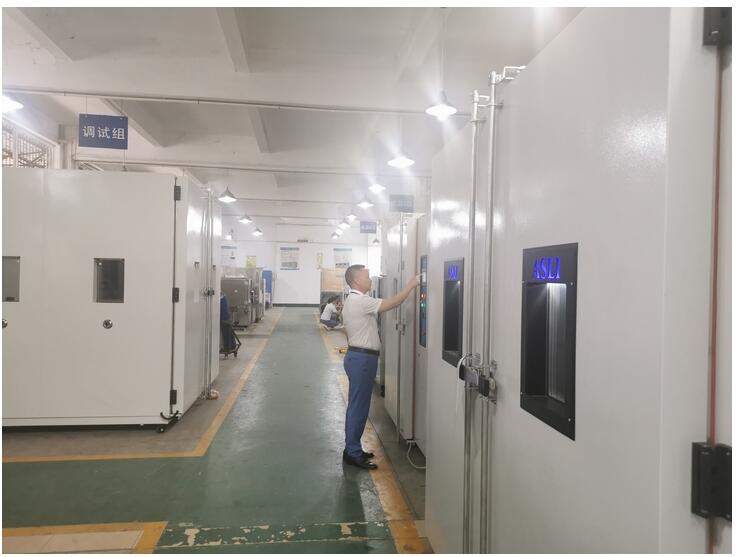

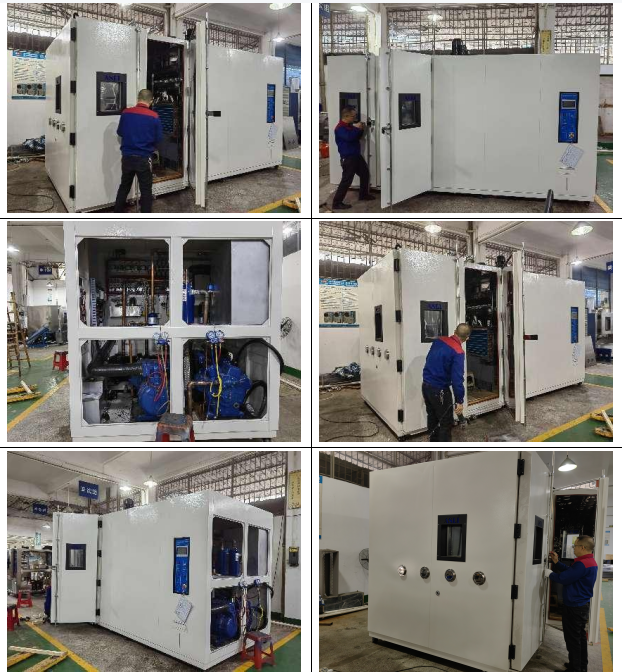

Pictures for Reference:
