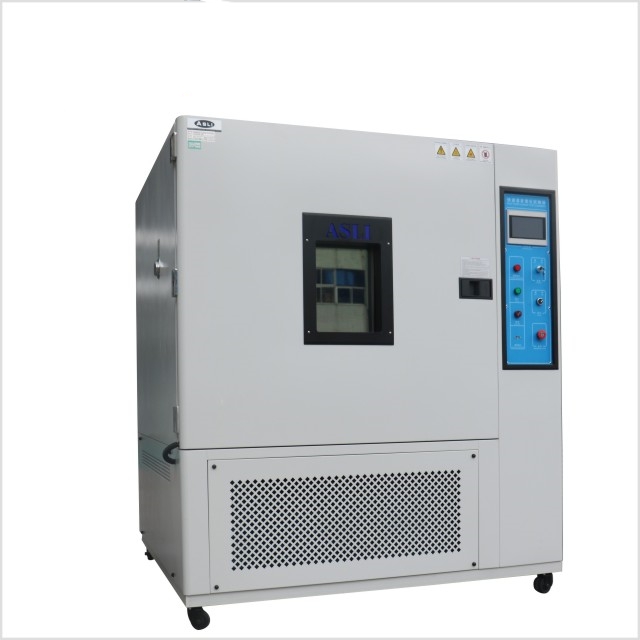

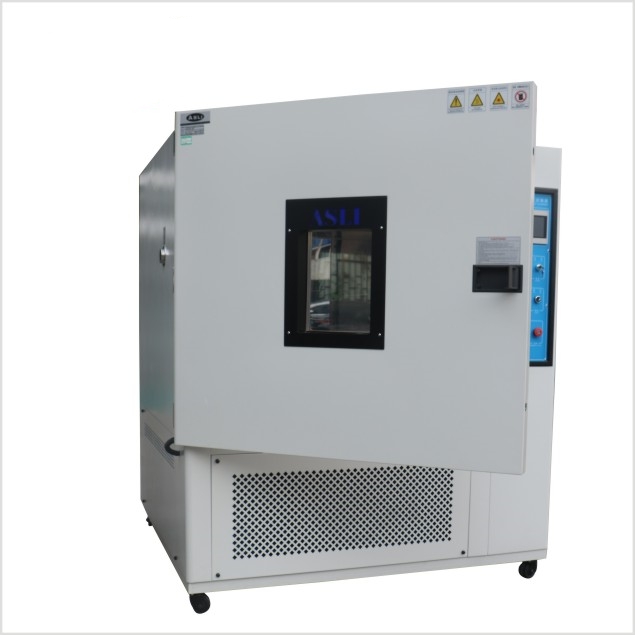

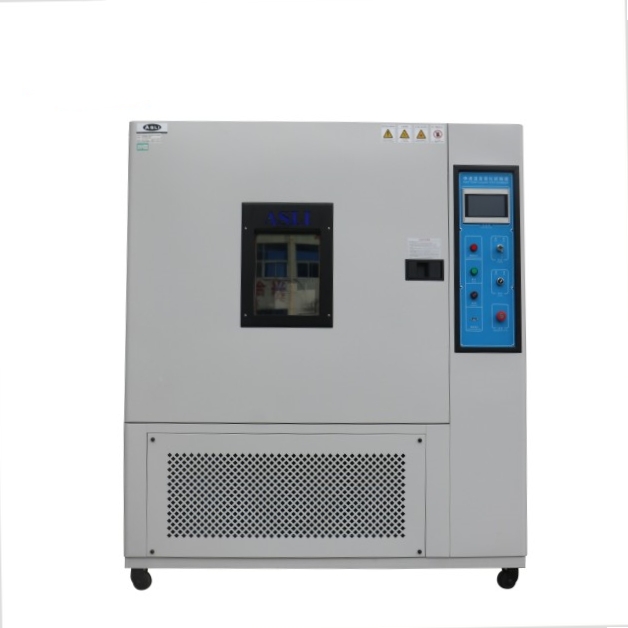

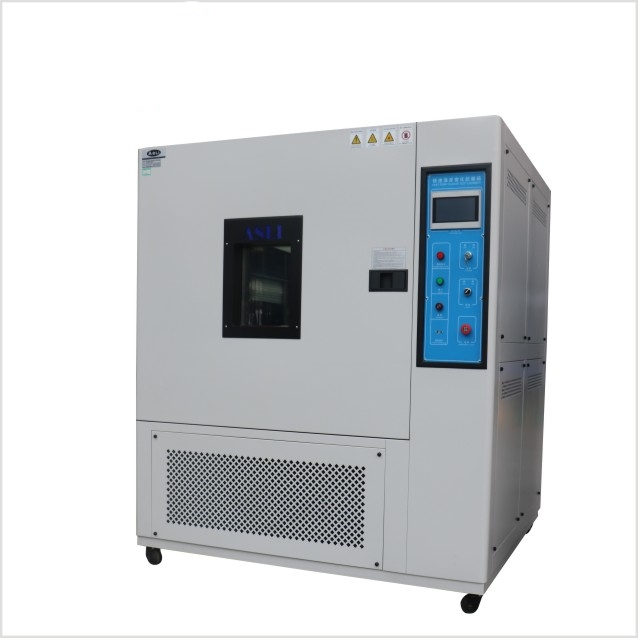

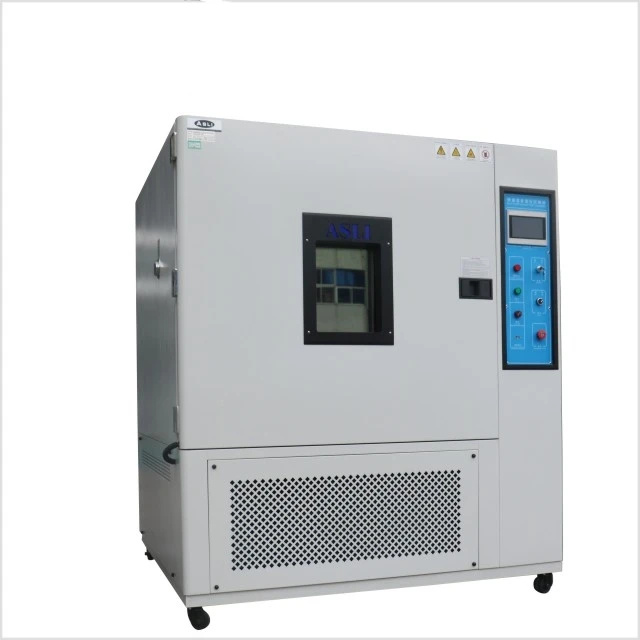

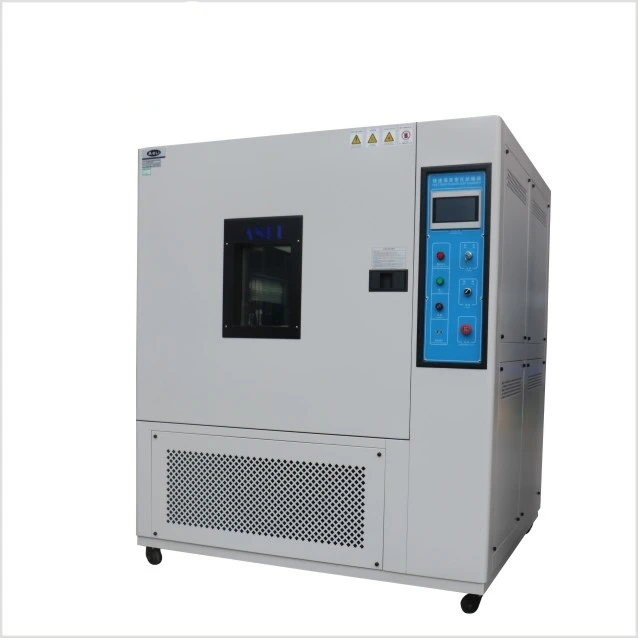

China Rapid Temperature Change Test Chamber – Fast Thermal Cycling
Product Description
Inner door with operation hole (optional)
50mm or 100mm Entrance hole for test wire,
Sample Shelves, two layers
RS-232 or RS-485 communication
Fast Response Temperature Chamber Supplier Rapid-rate Temperature & Humidity Cycle Chamber is used to test various types of materials for their tolerances of heat,cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliances, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

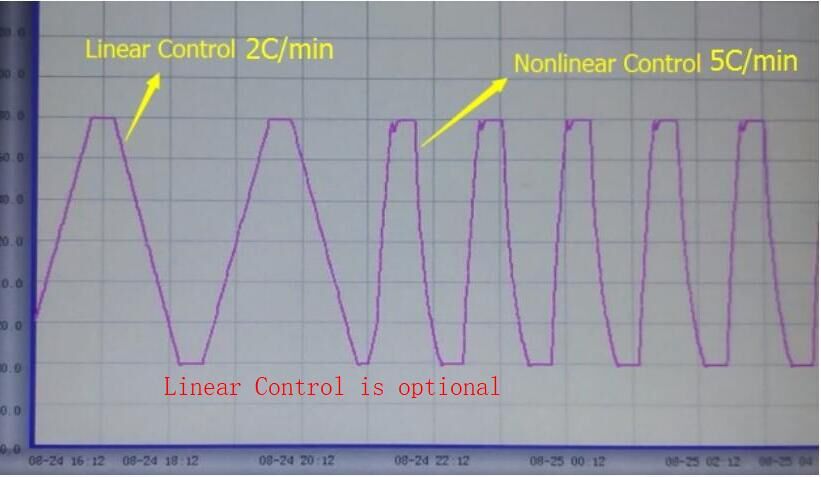

Linear control means: Rising and cooling at a constant rate
Non-linear control means: The cooling rate is fast at first, cooling rate is slow when it nears the set value
Specification
Model | F-TH-150(A~F) | F-TH-225(A~F) | F-TH-408(A~F) | F-TH-800(A~F) |
|
Internal Dimension
W*H*D( mm) | 500*600*500 | 600*750*500 | 600*850*800 | 1000*1000*800 |
|
Internal Dimension
W*H*D (mm) | 1100*1750*1600 | 1200*1800*1700 | 1250*1900*1900 | 1600*2050*2150 |
|
Range of Fast
Temperature Change | Temperature Range: -70~+150 degree C;
Range of Fast Temperature Change: -45~+85degree °C;
Max temperature rising/falling speed is 20 degrees C/min when the whole process is with linear control. |
Humidity Range(Optional) | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional ,need Dehumidifier) |
Indication resolution/
Distribution Uniformity
of Temperature and Humidity | 0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H. |
Control Accuracy of
Temperature and Humidity | ±0.5degree C; ±2.5% R.H. |
Temperature Rising/
Falling Velocity | Rising/Falling Speed Rate with linear control: 3~20degree C/min, adjustable
Rising/Falling Speed Rate non-linear control: 3~30degree C/min, adjustable |
Material | The interior material is SUS 304# stainless steel, exterior is stainless steel or cold-rolled steel with a paint coating. |
Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetate foam insulation materials |
Cooling System | Water-cooled/single-segment compressor |
Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
Optional Accessories | Inner door with operation hole(Optional), Water Purifier, Dehumidifier |
Compressor | French Tecumseh Brand, Germany Bizer Brand |
Power | AC380V 3Ph 5 lines, 50/60HZ |
Approx. Weight(Kg) | 250 | 350 | 450 | 600 |
|
Temperature Rapid Change Tester Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe, and reliable.
2. Rectangular double-paned viewing window for observation of the sample under test,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. A water supply system that is externally connectable, convenient for refilling water into the humidifying pot, and automatically recyclable.
5. French Tecumseh is used as a compressor, with environment-friendly refrigeration R23, R404A

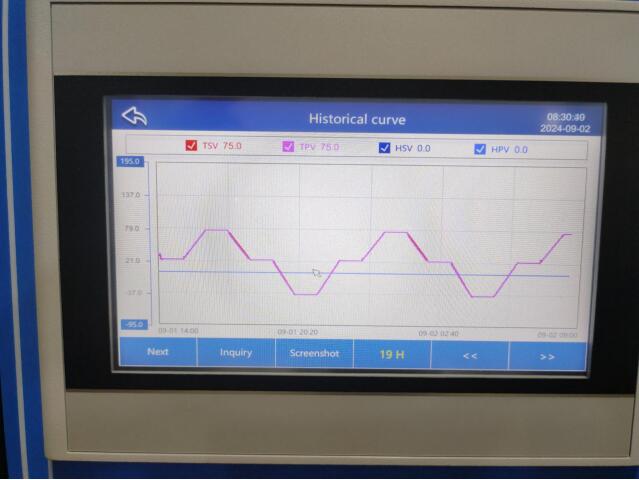

6. The LCD display screen is used for the control unit, capable of displaying the set point and the actual point at the same time
7. The control unit has the functions of multiple segment program editing
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong positioning screws.
