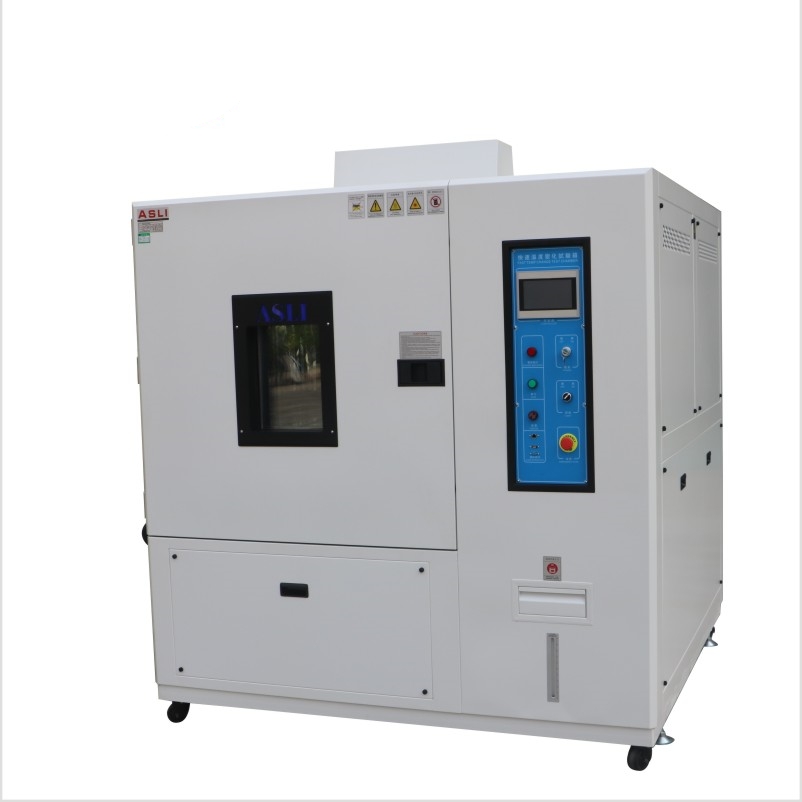

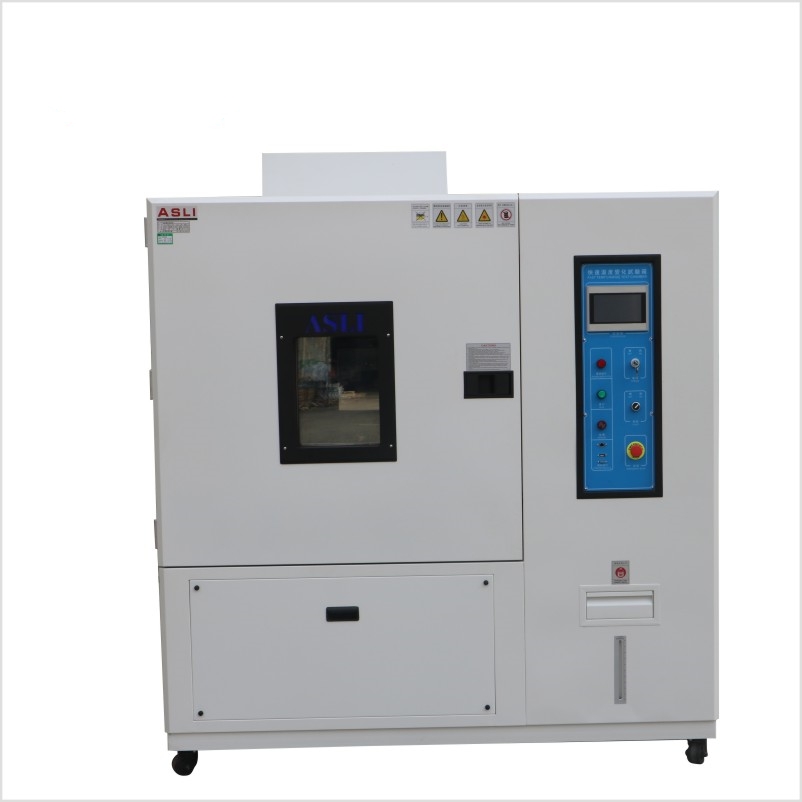

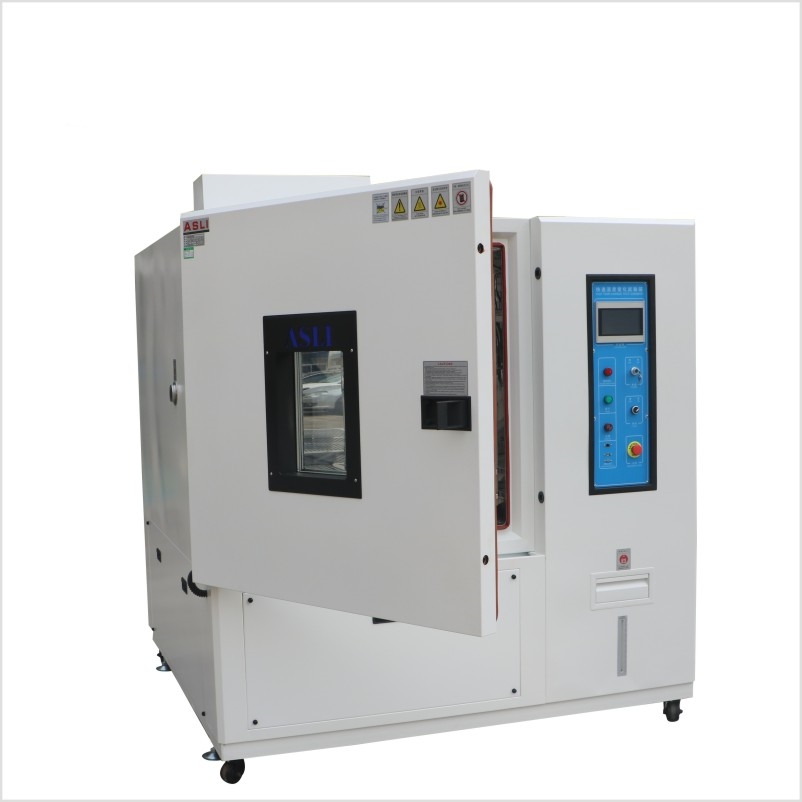

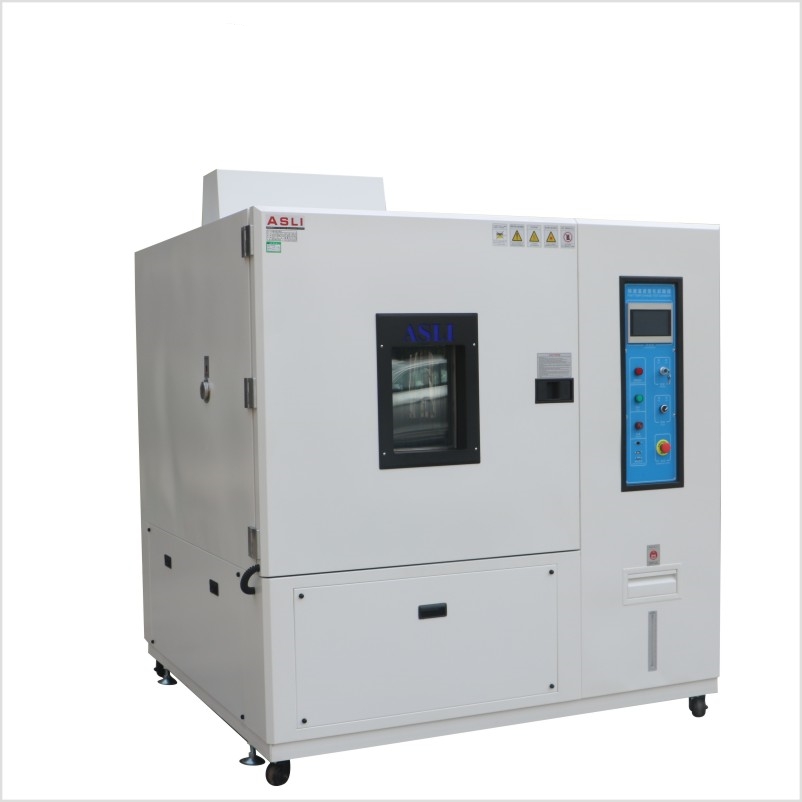

New designed Fast Change Programmable Automatic Laboratory Climatic Environmental Temperature And Humidity Test Chamber
Product Description
Inner door with operation hole (optional)
50mm or 100mm Entrance hole for test wire,

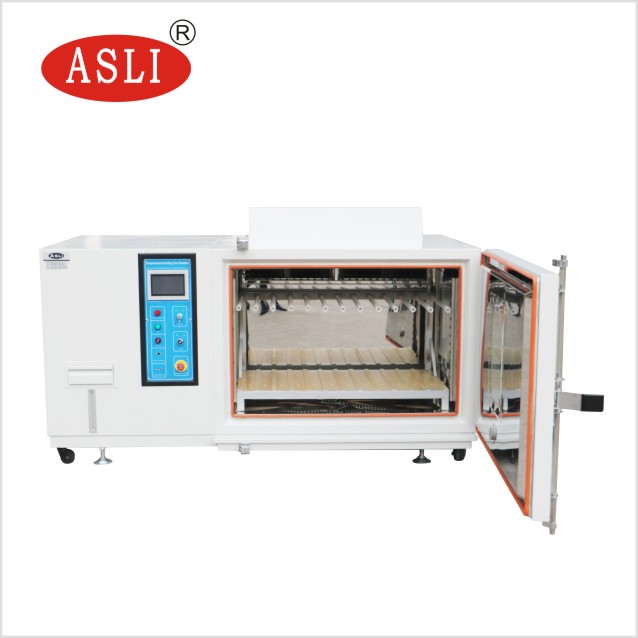

Sample Shelves, two layers
RS-232 or RS-485 communication
Fast Response Temperature Chamber Supplier Rapid-rate Temperature & Humidity Cycle
Chamber is used to test various types of materials for their tolerances of heat,cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Specification
Model | F-TH-150(A~F) | F-TH-225(A~F) | F-TH-408(A~F) | F-TH-800(A~F) |
|
Internal Dimension
W*H*D( mm) | 500*600*500 | 600*750*500 | 600*850*800 | 1000*1000*800 |
|
Internal Dimension
W*H*D (mm) | 1100*1750*1600 | 1200*1800*1700 | 1250*1900*1900 | 1600*2050*2150 |
|
Range of Fast
Temperature Change | Temperature Range: -70~+150 degree C;
Range of Fast Temperature Change: -45~+85degree C;
Max. temperature rising/falling speed is 20 degree C/min when the whole process with linear control . |
Humidity Range(Optional) | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional ,need Dehumidifier) |
Indication resolution/
Distribution Uniformity
of Temperature and Humidity | 0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H. |
Control Accuracy of
Temperature and Humidity | ±0.5degree C; ±2.5% R.H. |
Temperature Rising/
Falling Velocity | Rising/Falling Speed Rate with linear control : 3~20degree C/min, adjustable
Rising/Falling Speed Rate non-linear control : 3~30degree C/min, adjustable |
Material | Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated. |
Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
Cooling System | Water cooled/single segment compressor |
Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
Optional Accessories | Inner door with operation hole(Optional), Water Purifier, Dehumidifier |
Compressor | French Tecumseh Brand, Germany Bizer Brand |
Power | AC380V 3Ph 5 lines, 50/60HZ |
Approx. Weight(Kg) | 250 | 350 | 450 | 600 |
|
