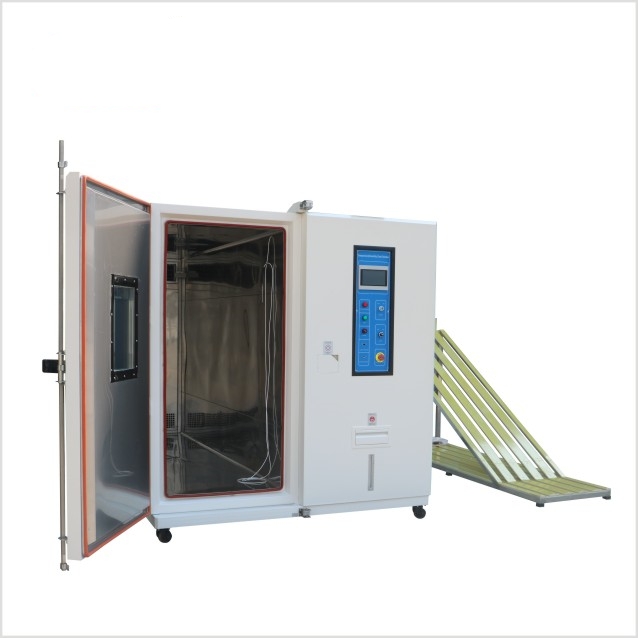

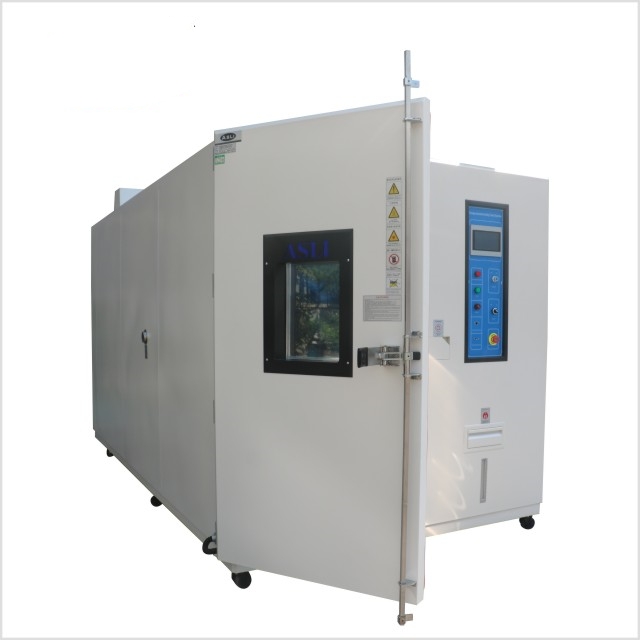

Fast rate temperature change test chamber with 3 kW load
Touch Screen Programmable Rapid Temperature Change Equipment is used to test various types of materials for their tolerances to heat, cold, dry, and humidity. It is applied for quality inspection for all types of electronic products, electric appliances, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical, and aerospace industries.
Application: The
Fast Temperature Change Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, and humidity. It is applied for quality inspection for all types of electronic products, electric appliances, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical, and aerospace industries.
Inner door with operation hole (optional)
50mm or 100mm Entrance hole for test wire, Dia. 50mm or 100mm

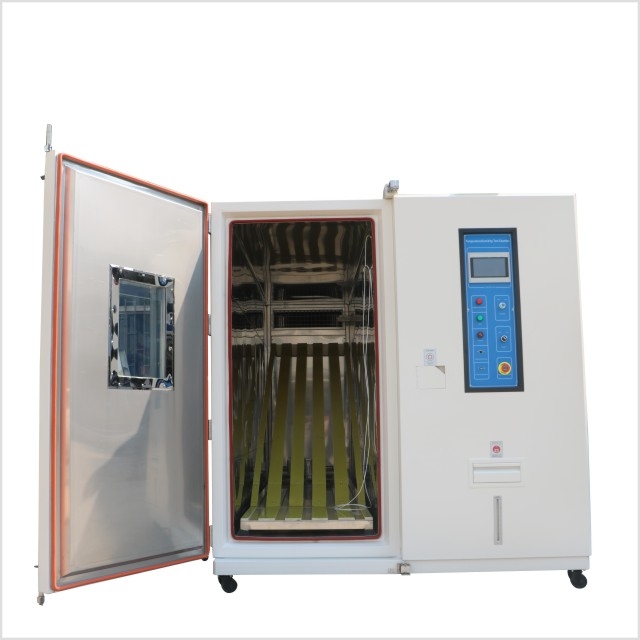

Sample Shelves, two layers
RS-232 or RS-485 communication
Fast temperature change rate chambers features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe, and reliable.
2. Rectangular double-paned viewing window for observation of the sample under test, with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. A water supply system that is externally connectable, convenient for refilling water into the humidifying pot, and automatically recyclable.
5. French Tecumseh is used as a compressor, with environmentally friendly refrigeration R23, R404A.
6. The LCD display screen is used for the control unit, capable of displaying the set point and the actual point at the same time.
7. The control unit has the functions of multiple segment program editing.
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong positioning screws.
Technical Parameters:
| Model | F-TH-150(A~F) | F-TH-225(A~F) | F-TH-408(A~F) | F-TH-800(A~F) |
|
Internal Dimension
W*H*D( mm) | 500*600*500 | 600*750*500 | 600*850*800 | 1000*1000*800 |
|
Internal Dimension
W*H*D (mm) | 1100*1750*1600 | 1200*1800*1700 | 1250*1900*1900 | 1600*2050*2150 |
|
Range of Fast
Temperature Change | Temperature Range: -70~+150degree C; Range of Fast Temperature Change:
-45~+85degree C; Ma*. temperature rising/falling speed is 15degree C/min when
The whole process with linear control. |
| Humidity Range(Optional) | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional ,need Dehumidifier) |
Indication resolution/
Distribution Uniformity
of Temperature and Humidity | 0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H. |
Control Accuracy of
Temperature and Humidity | ±0.5degree C; ±2.5% R.H. |
Temperature Rising/

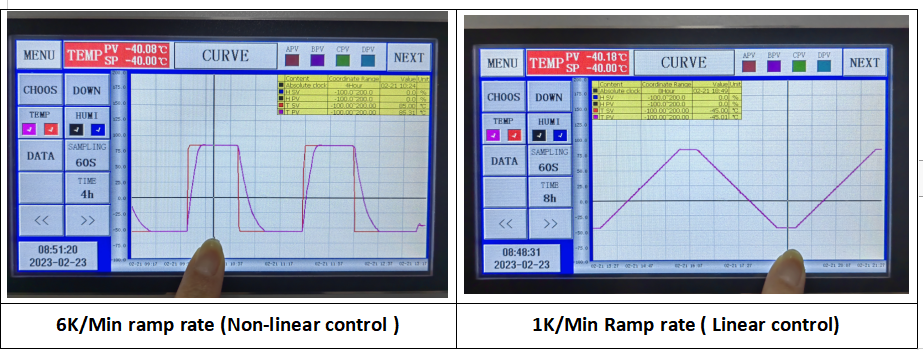

Falling Velocity | Rising/Falling Speed Rate with linear control: 3~15degree C/min, adjustable
Rising/Falling Speed Rate non-linear control: 3~30degree C/min, adjustable |
| Material | Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE
Cold-rolled steel with paint coating. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetate foam
insulation materials |
| Cooling System | Water-cooled/single segment compressor |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low
voltage coolant protection switch, over-humidity, and over-temperature protection
switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole(Optional), Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC380V 3Ph 5 lines, 50/60HZ |
| Approx. Weight(Kg) | 250 | 350 | 450 | 600 |
|
